Automatic Transaxle: Components

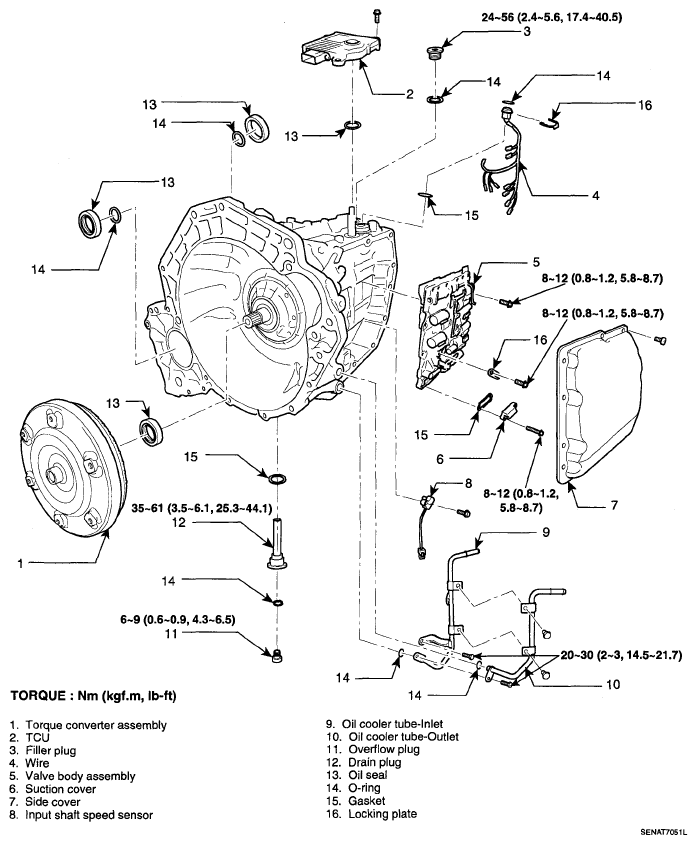

Fig 1: Exploded View Of Automatic Transaxle With Torque Specification

G05330285

Courtesy of HYUNDAI MOTOR CO.
