Transmission Control Module (TCM): Removal

  1. Disconnect the (-) terminal from the battery.
  2. Remove the air cleaner assembly.
  3. Remove the turbocharger tube, (diesel engine only)
  4. Remove the shift cable (A), the manual lever (B), and the connector (C).

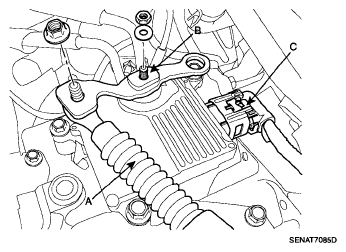

    Fig 1: Identifying Shift Cable, Manual Lever And Connector
    G05330394Courtesy of HYUNDAI MOTOR CO.
  5. Remove the 3 bolts to remove the TCU (A).

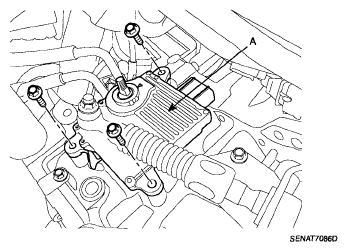

    Fig 2: Identifying TCU And Bolts
    G05330395Courtesy of HYUNDAI MOTOR CO.
