Home
>>
Hyundai
>>
2007
>>
Veracruz GLS, FWD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Transaxle System (F21)
>>
Automatic Transaxle Control System
>>
Specification Of Bolts
Specification Of Bolts

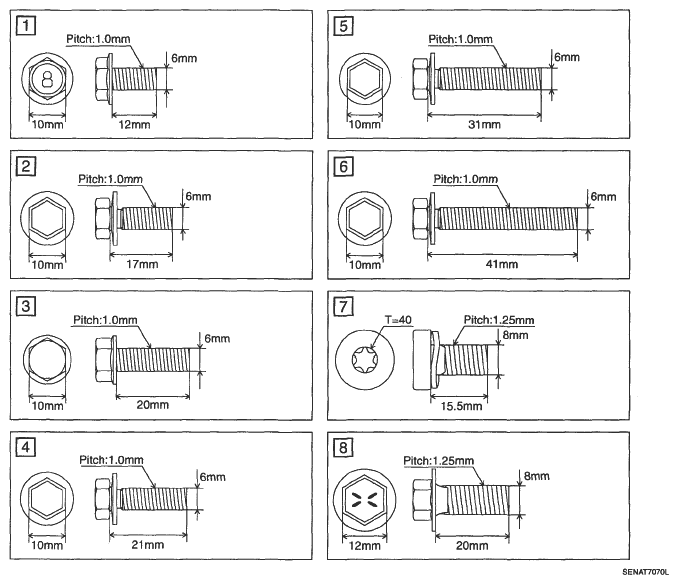

Fig 1: Identifying Bolts Length
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
