Electrical Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

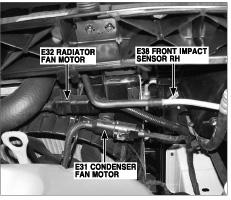

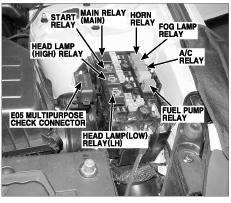

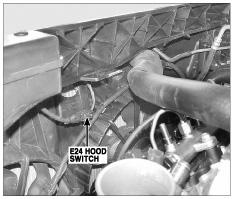

Fig 1: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

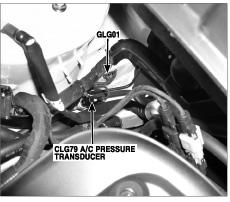

Fig 2: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Behind Front Bumper
Courtesy of HYUNDAI MOTOR CO.

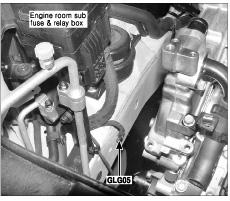

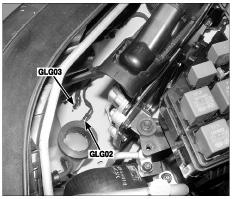

Fig 5: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 6: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Left Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

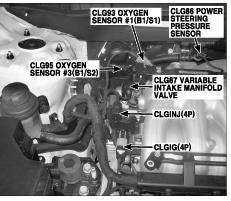

Fig 8: Lower Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 9: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

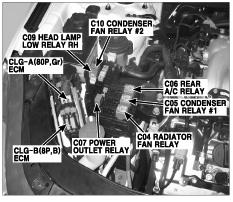

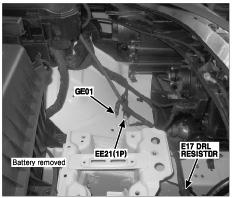

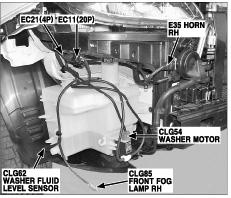

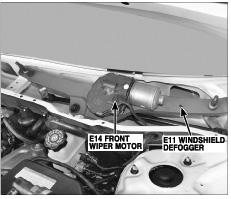

Fig 10: Right Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

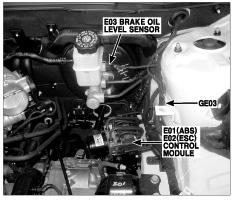

Fig 11: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 12: Lower Left Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 13: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 14: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

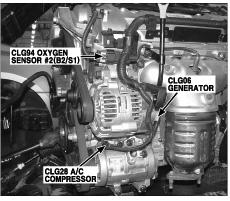

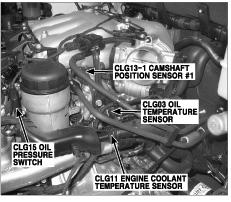

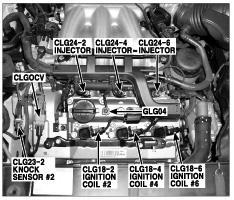

Fig 15: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 16: Top Of Engine
Courtesy of HYUNDAI MOTOR CO.

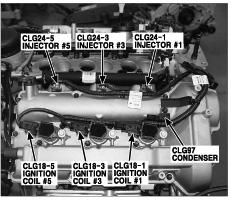

Fig 17: Top Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 18: Left Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 19: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 20: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 21: Top Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.

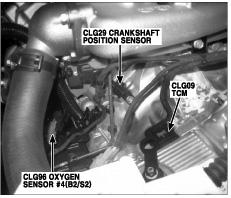

Fig 22: Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 23: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 24: Rear Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 25: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 26: Right Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.

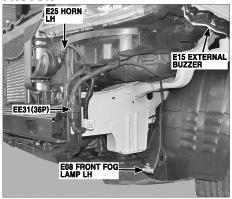

Fig 27: Left Front Wheelwell
Courtesy of HYUNDAI MOTOR CO.
Fig 28: Front Wheelwells
Courtesy of HYUNDAI MOTOR CO.

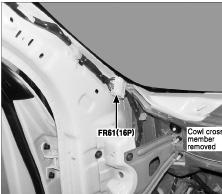

Fig 29: Left "A" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 30: Under Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.

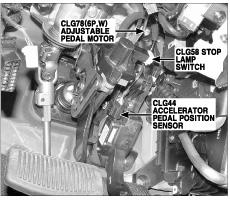

Fig 31: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

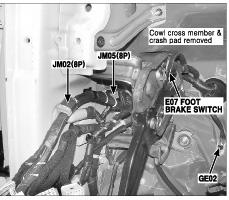

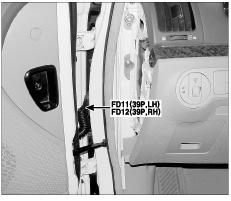

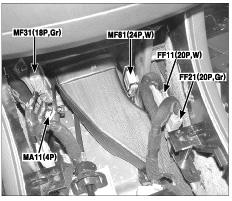

Fig 32: Behind Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.

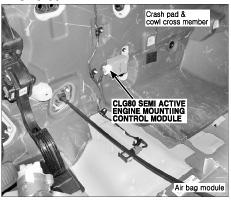

Fig 33: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

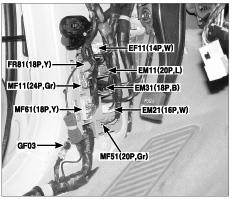

Fig 34: Left "A" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

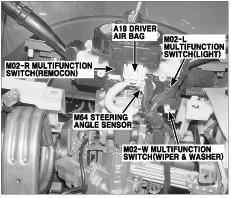

Fig 35: Steering Column
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Steering Column
Courtesy of HYUNDAI MOTOR CO.

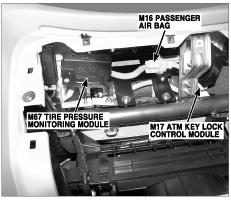

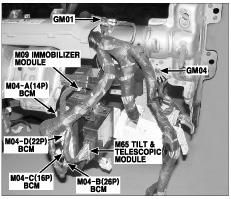

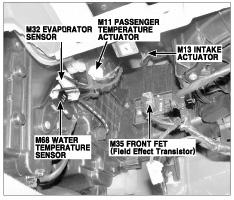

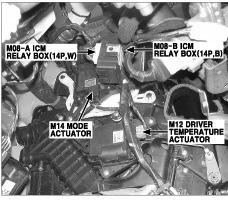

Fig 38: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

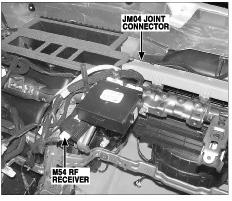

Fig 39: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 40: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 41: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

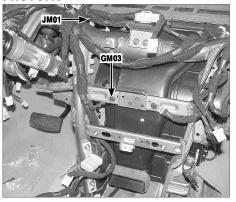

Fig 42: Behind Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 43: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 44: Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 46: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 47: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 48: Behind Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 49: Under Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

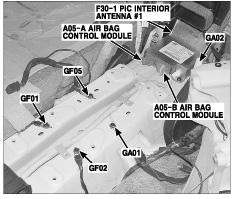

Fig 50: Behind Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.

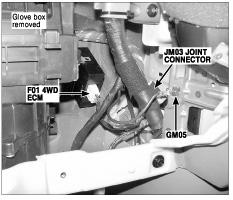

Fig 51: Behind Right Kick Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Top Center Of Windshield
Courtesy of HYUNDAI MOTOR CO.

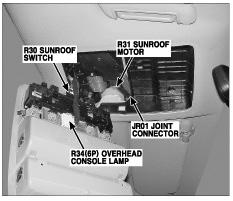

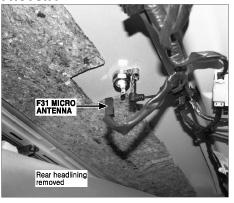

Fig 53: Center Front Of Roof
Courtesy of HYUNDAI MOTOR CO.

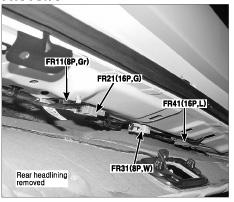

Fig 54: Center Rear Of Roof
Courtesy of HYUNDAI MOTOR CO.
Fig 55: Rear Of Roof
Courtesy of HYUNDAI MOTOR CO.

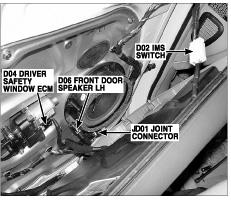

Fig 56: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 57: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 58: Left Front Door
Courtesy of HYUNDAI MOTOR CO.

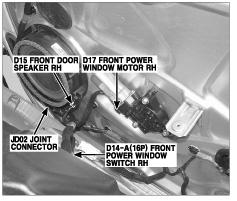

Fig 59: Right Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 60: Right Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 61: Right Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 62: Left Rear Door (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

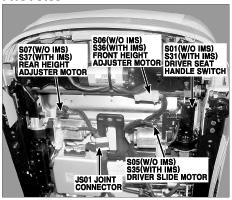

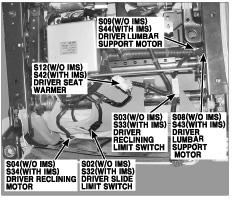

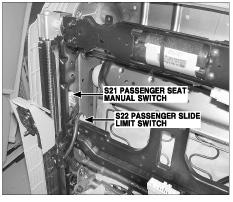

Fig 63: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.

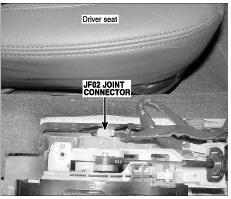

Fig 64: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 65: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.

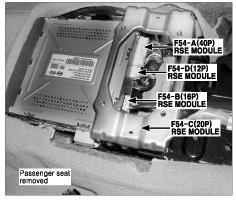

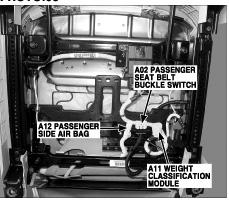

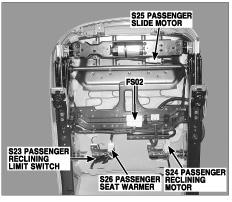

Fig 66: Under Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 67: Under Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.

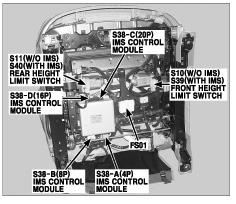

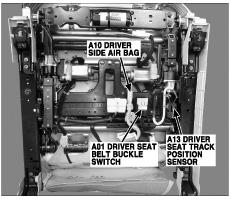

Fig 68: Under Driver's Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 69: Under Front Passenger's Seat
Courtesy of HYUNDAI MOTOR CO.

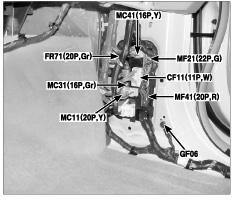

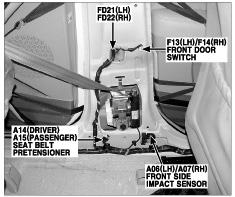

Fig 70: Left "B" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 71: Top Of Fuel Tank
Courtesy of HYUNDAI MOTOR CO.
Fig 72: Left "C" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

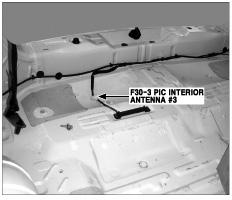

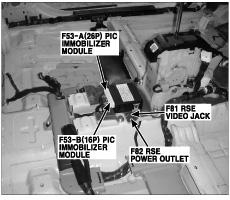

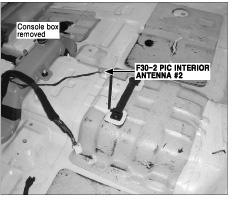

Fig 73: Under Rear Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 74: Under Rear Of Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 75: Right Front Floor
Courtesy of HYUNDAI MOTOR CO.

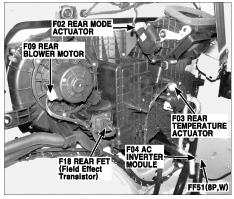

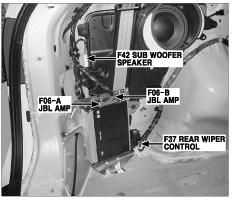

Fig 76: Left Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 77: Left Quarterpanel
Courtesy of HYUNDAI MOTOR CO.
Fig 78: Right Quarterpanel
Courtesy of HYUNDAI MOTOR CO.

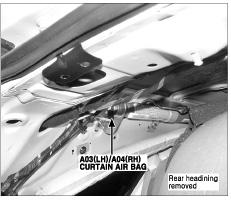

Fig 79: Left "D" Pillar (Right Similar)
Courtesy of HYUNDAI MOTOR CO.
Fig 80: Under Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

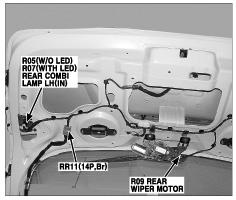

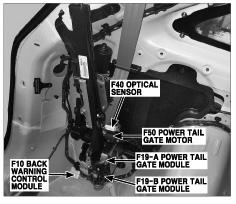

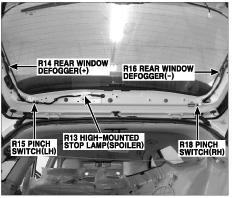

Fig 81: Tailgate
Courtesy of HYUNDAI MOTOR CO.

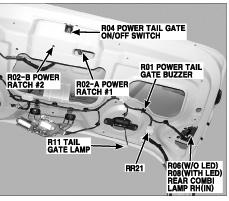

Fig 82: Tailgate
Courtesy of HYUNDAI MOTOR CO.

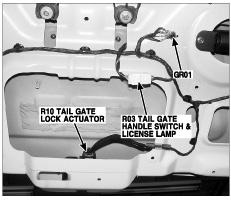

Fig 83: Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 84: Top Of Tailgate
Courtesy of HYUNDAI MOTOR CO.
Fig 85: Under Left Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

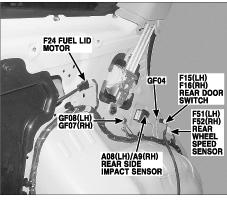

Fig 86: Rear Fascia
Courtesy of HYUNDAI MOTOR CO.
Fig 87: Luggage Compartment
Courtesy of HYUNDAI MOTOR CO.

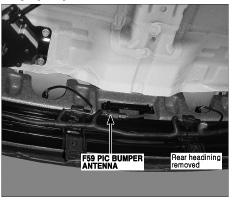

Fig 88: Center Of Rear Bumper
Courtesy of HYUNDAI MOTOR CO.

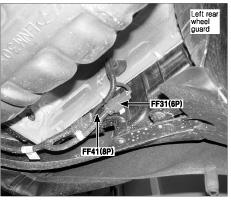

Fig 89: Left Rear Wheelwell (Right Similar)
Courtesy of HYUNDAI MOTOR CO.

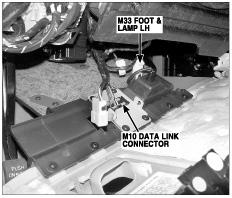

Fig 90: Under Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

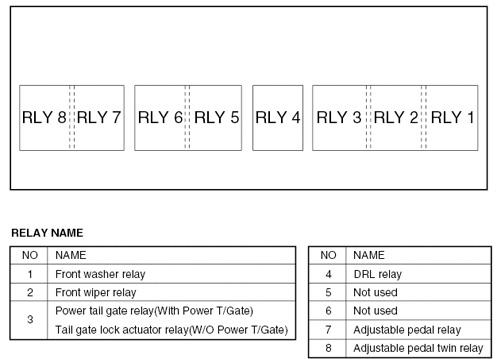

Fig 91: ICM Relay Box
Courtesy of HYUNDAI MOTOR CO.
