Circuit Diagram
Circuit Diagram

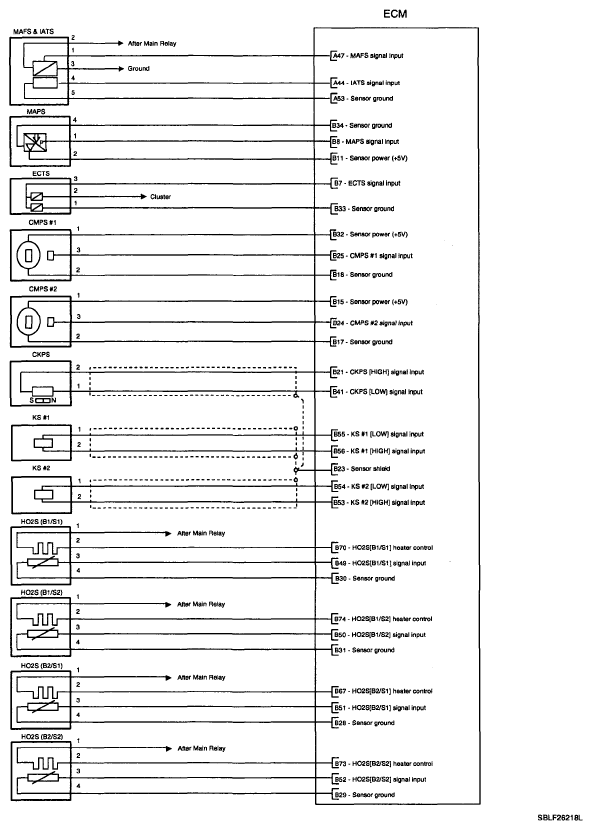

Fig 1: Fuel System - Circuit Diagram (1 Of 5)
Courtesy of HYUNDAI MOTOR CO.

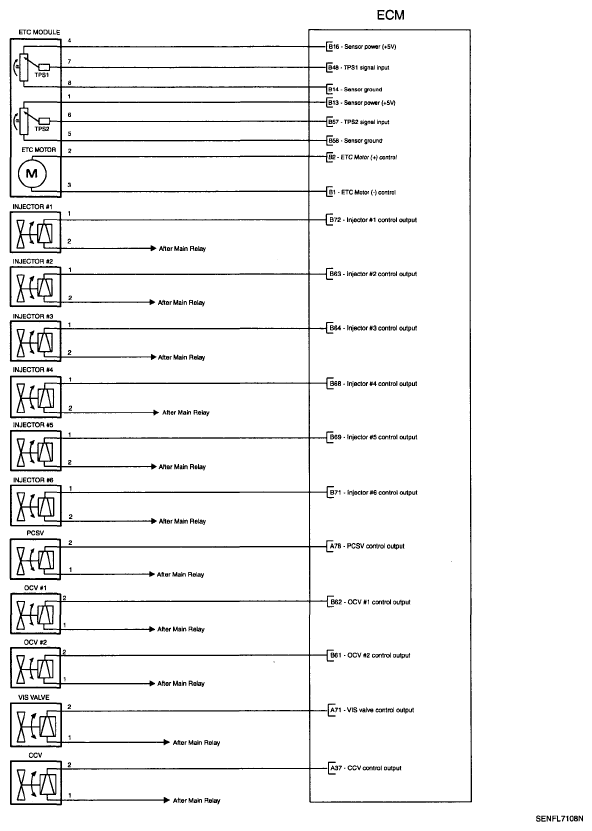

Fig 2: Fuel System - Circuit Diagram (2 Of 5)
Courtesy of HYUNDAI MOTOR CO.

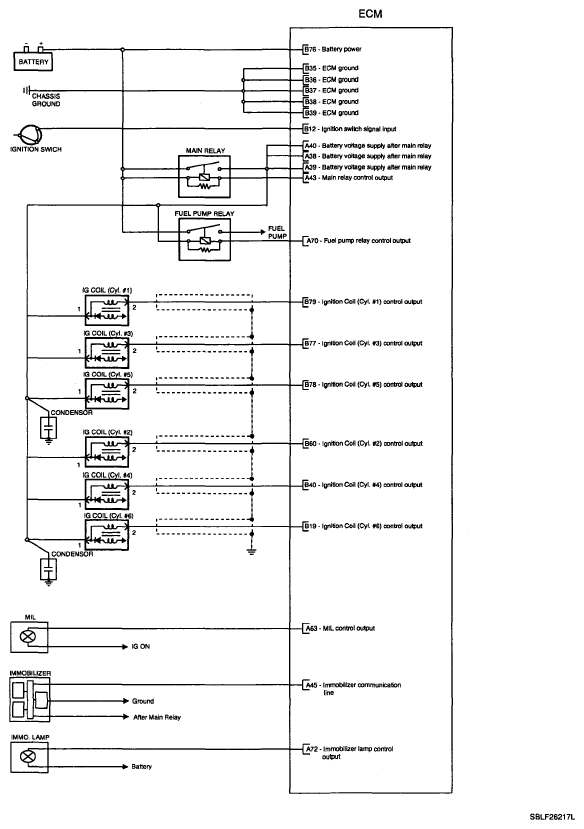

Fig 3: Fuel System - Circuit Diagram (3 Of 5)
Courtesy of HYUNDAI MOTOR CO.

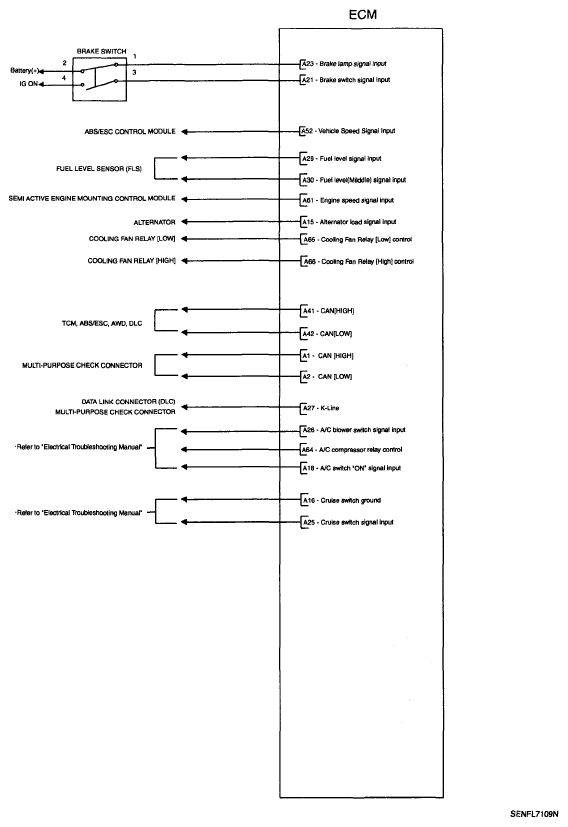

Fig 4: Fuel System - Circuit Diagram (4 Of 5)
Courtesy of HYUNDAI MOTOR CO.

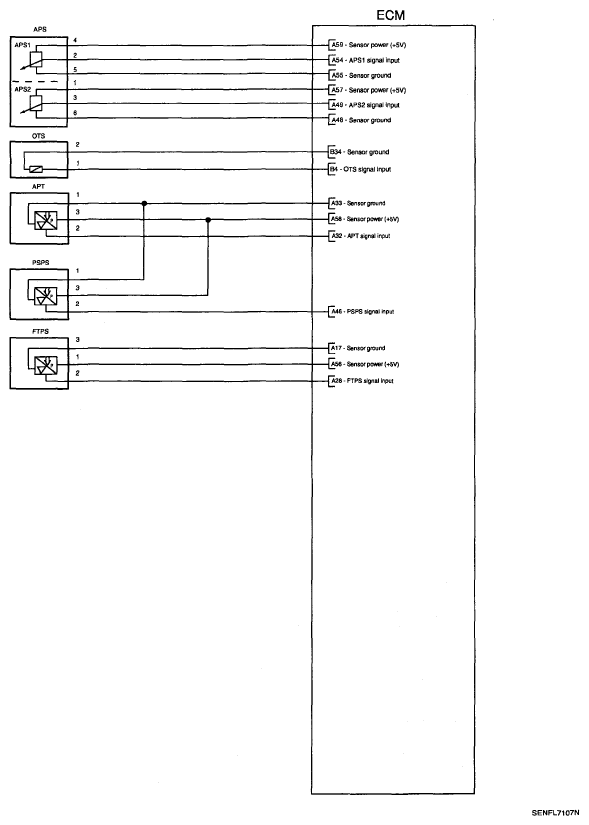

Fig 5: Fuel System - Circuit Diagram (5 Of 5)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
