Monitor SCANTOOL Data

Connect scantool to Data Link Connector (DLC).
Ignition "ON" & Engine "ON".
Press the brake pedal.
Monitor the "PRESSURE SENSOR" parameter on the Scantool.
Specification : Approx. 60bar ~ 150bar (There is difference in displayed parameter according to braking force)

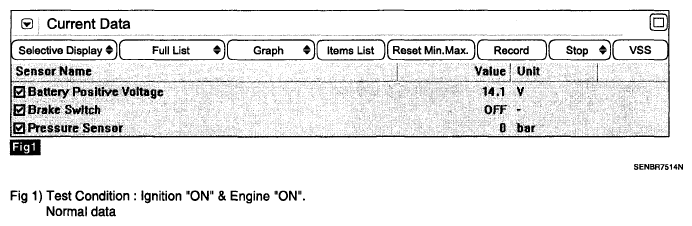

Fig 1: Monitoring Pressure Sensor Parameter (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

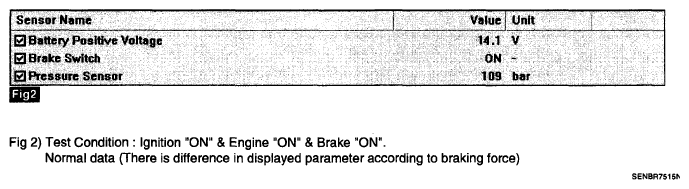

Fig 2: Monitoring Pressure Sensor Parameter (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Whenever brake pedal is pushed down, is the pressure sensor's scantool data changed?
YES:
- Fault is caused by having been repaired and HECU memory was not cleared.
  Clear the DTC and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO:
- Go to "COMPONENT INSPECTION " procedure.
