Esp/ESC System: Components

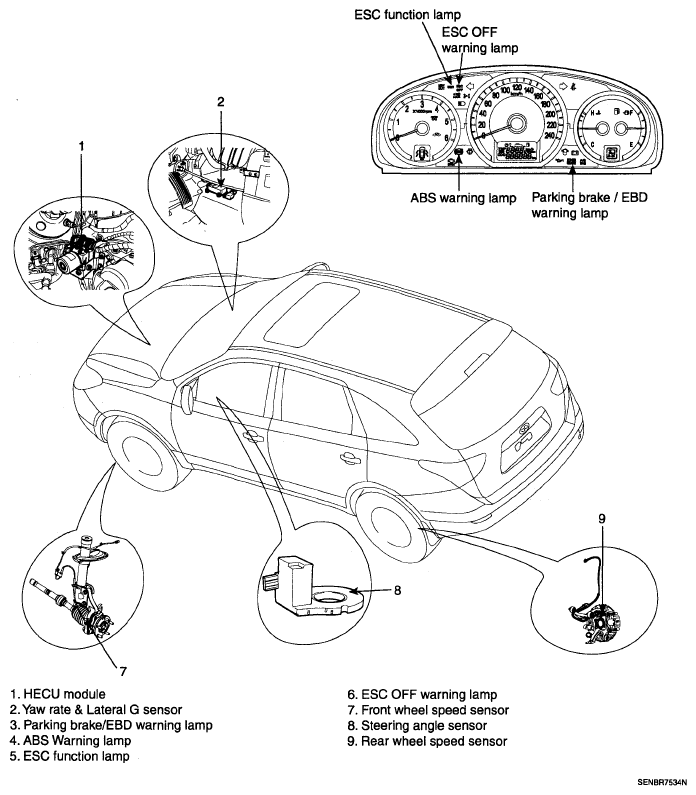

Fig 1: Identifying ESP/ESC System Components (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

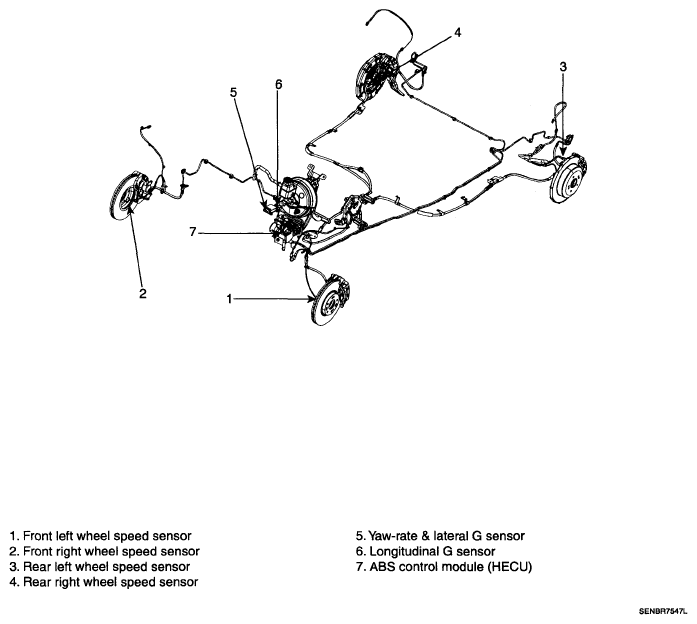

Fig 2: Identifying ESP/ESC System Components (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
