Hyundai
>>
2007
>>
Veracruz GLS, FWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
ESC (Electronic Stability Control) System
>>
Esp/ESC System
>>
Circuit Diagram - ESC
Circuit Diagram - ESC

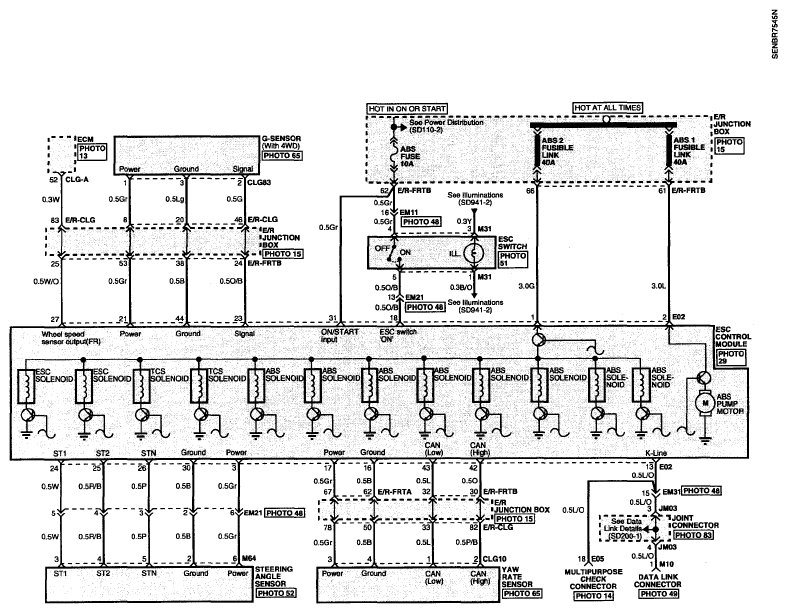

Fig 1: ESC - Circuit Diagram (1 Of 2)
Courtesy of HYUNDAI MOTOR CO.

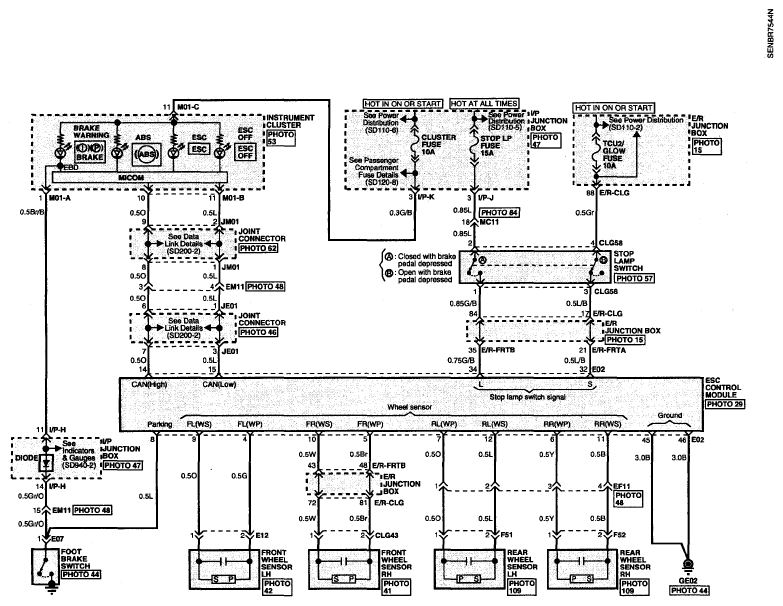

Fig 2: ESC - Circuit Diagram (2 Of 2)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
