Yaw Rate And G Sensor Connector End View

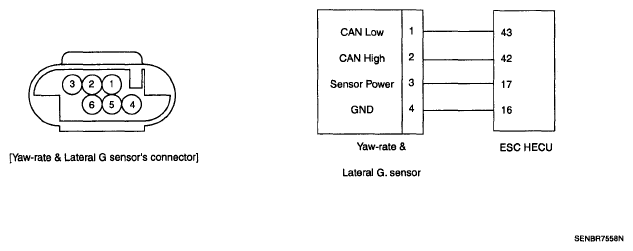

Fig 1: Yaw Rate And G Sensor Connector End View

G05331546

Courtesy of HYUNDAI MOTOR AMERICA
