Temperature Control Actuator Connector End View (Driver Side)

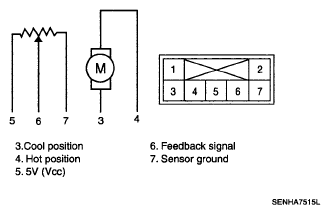

Fig 1: Temperature Control Actuator Connector End View (Driver Side)

G05332390

Courtesy of HYUNDAI MOTOR AMERICA
