RSE Trimplate Unit Connector End View

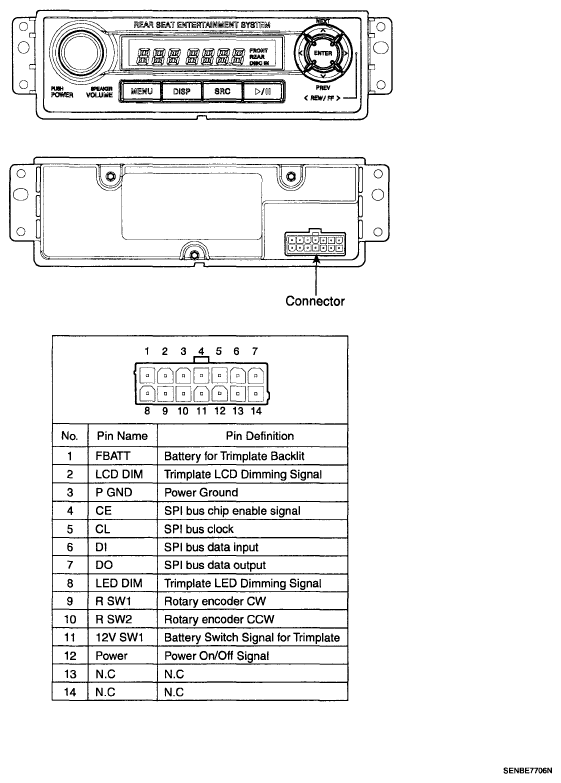

Fig 1: RSE Trimplate Unit Connector End View

G05331708

Courtesy of HYUNDAI MOTOR AMERICA
