Front Hub/Knuckle: Disassembly

  1. Remove the brake disc (B) from the knuckle assembly (A).

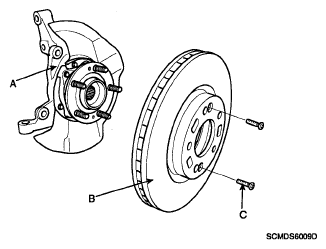

    Fig 1: Identifying Knuckle Assembly And Brake Disc
    G05331264Courtesy of HYUNDAI MOTOR CO.
  2. Remove the hub assembly mounting bolts (B) from the knuckle (A).

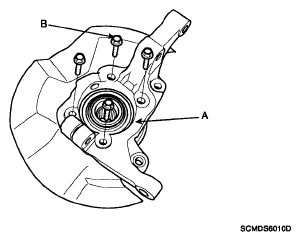

    Fig 2: Identifying Knuckle And Hub Mounting Bolts
    G05331265Courtesy of HYUNDAI MOTOR CO.
  3. Remove the hub assembly (C) and the dust cover (B) from the knuckle (A).

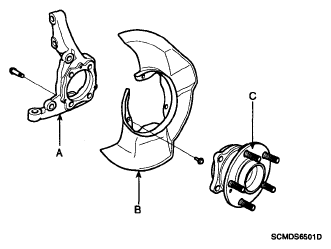

    Fig 3: Identifying Hub Assembly And Dust Cover
    G05331266Courtesy of HYUNDAI MOTOR CO.
    CAUTION: Do not disassemble the hub assembly.
