Heater Control Unit Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the audio assembly (See AUDIO ASSEMBLY REPLACEMENT  ).
  2. Loosen the screws.
  3. Remove the heater control unit (A).

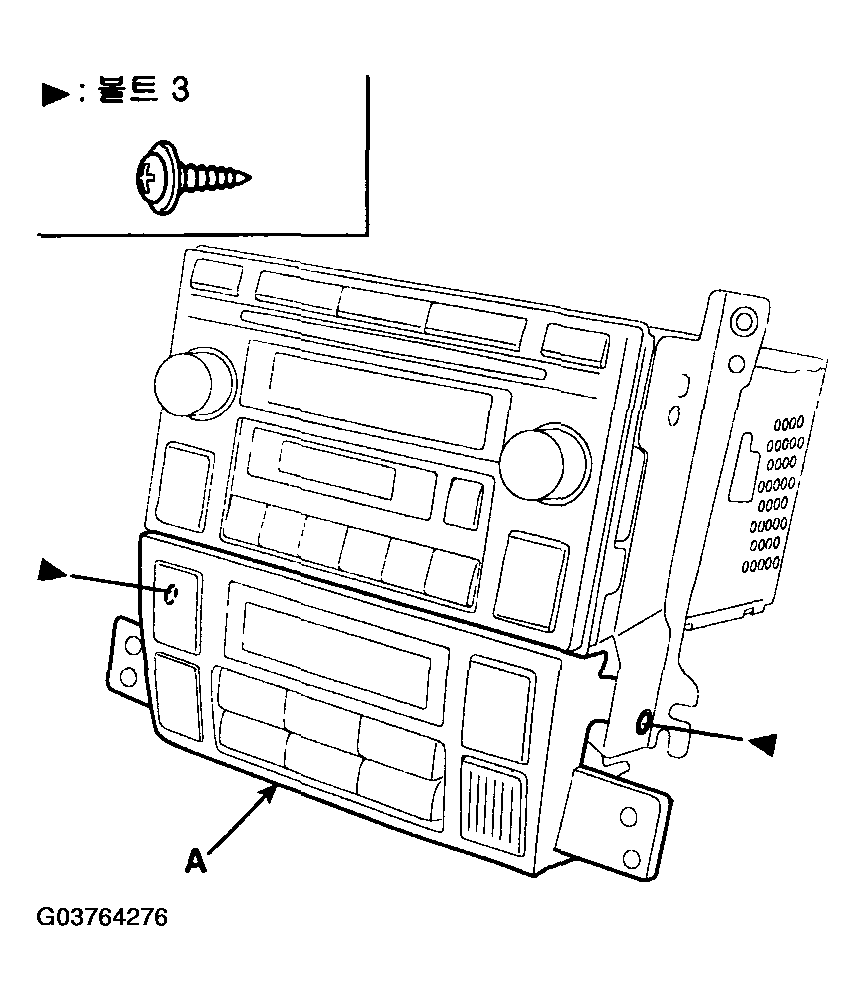

    Fig 1: Removing Heater Control Unit
    G03764276Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE: Make sure the connector is plugged in properly.
