Special Tools
SPECIAL TOOLS
| Tool (Number and name) | Illustration | Use |
|---|---|---|

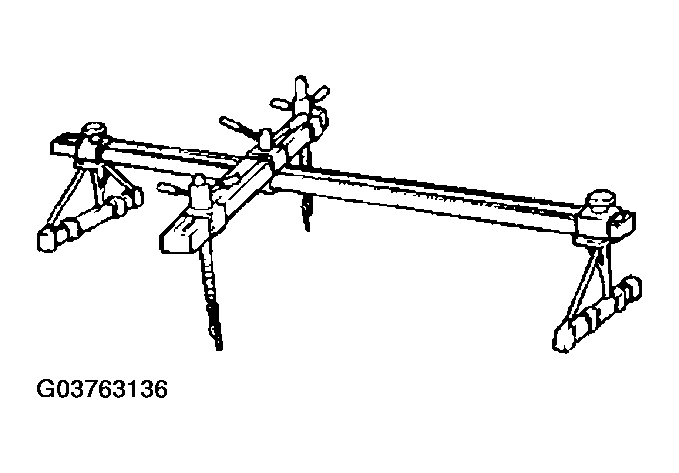

| 09200-38001 Engine support fixture | Removal and installation of transaxle. | |

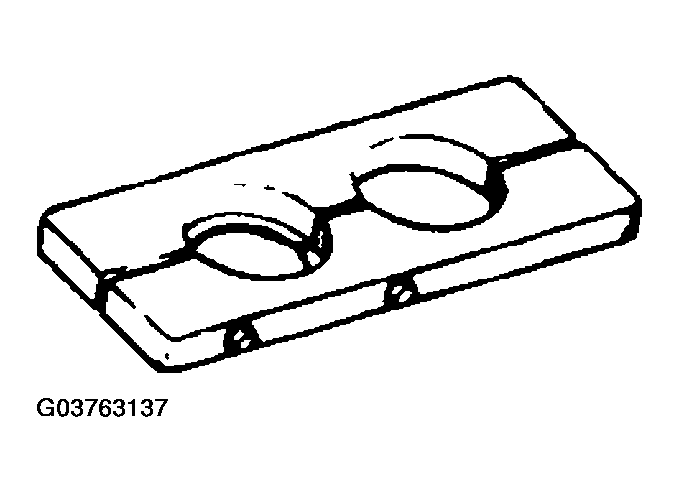

| 09432-33200 Bearing removing plate | Removal of 4WD coupling flange oil seal | |

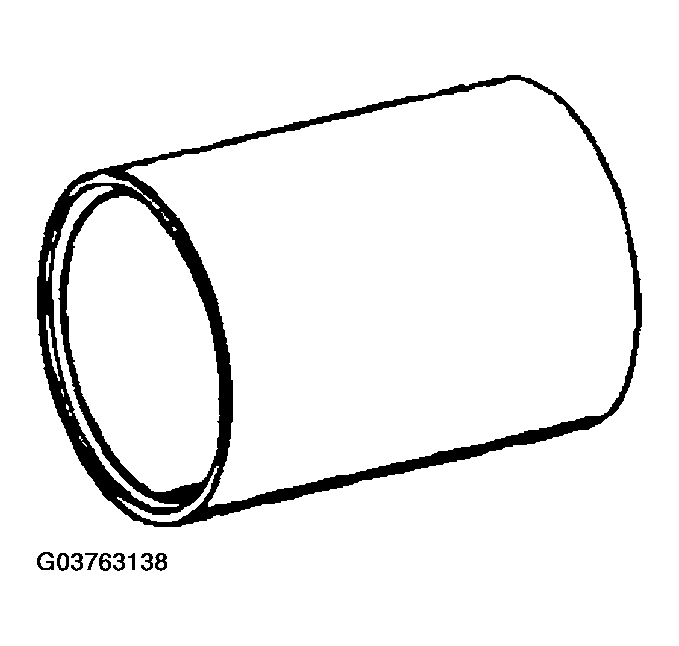

| 09478-26000 Flange oil seal installer | Installation of 4WD coupling flange oil seal | |

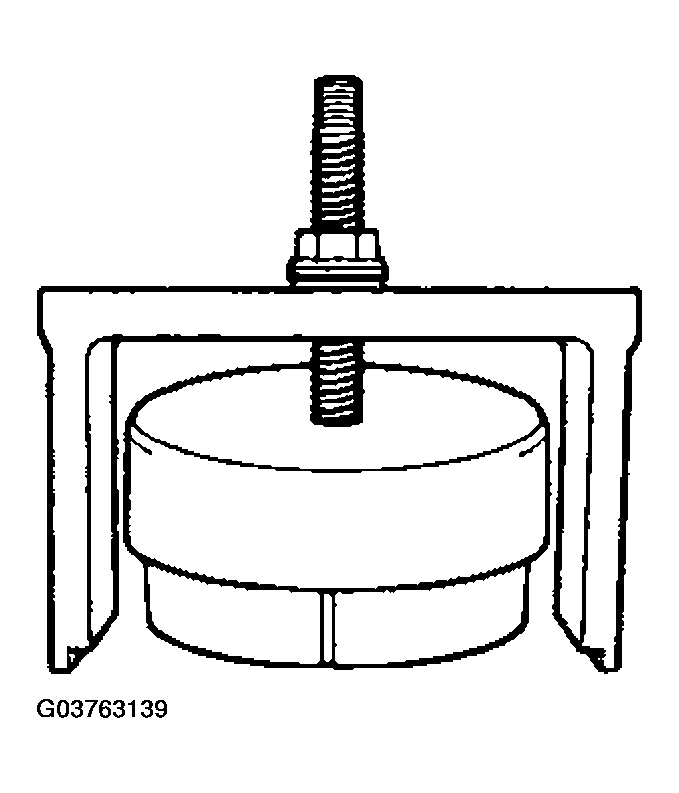

| 09478-26100 Back plate remover | Removal of 4WD coupling back plate. |
