Overhead Console Lamp: Inspection

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.

Remove the overhead console lamp assembly then check for continuity between terminals.

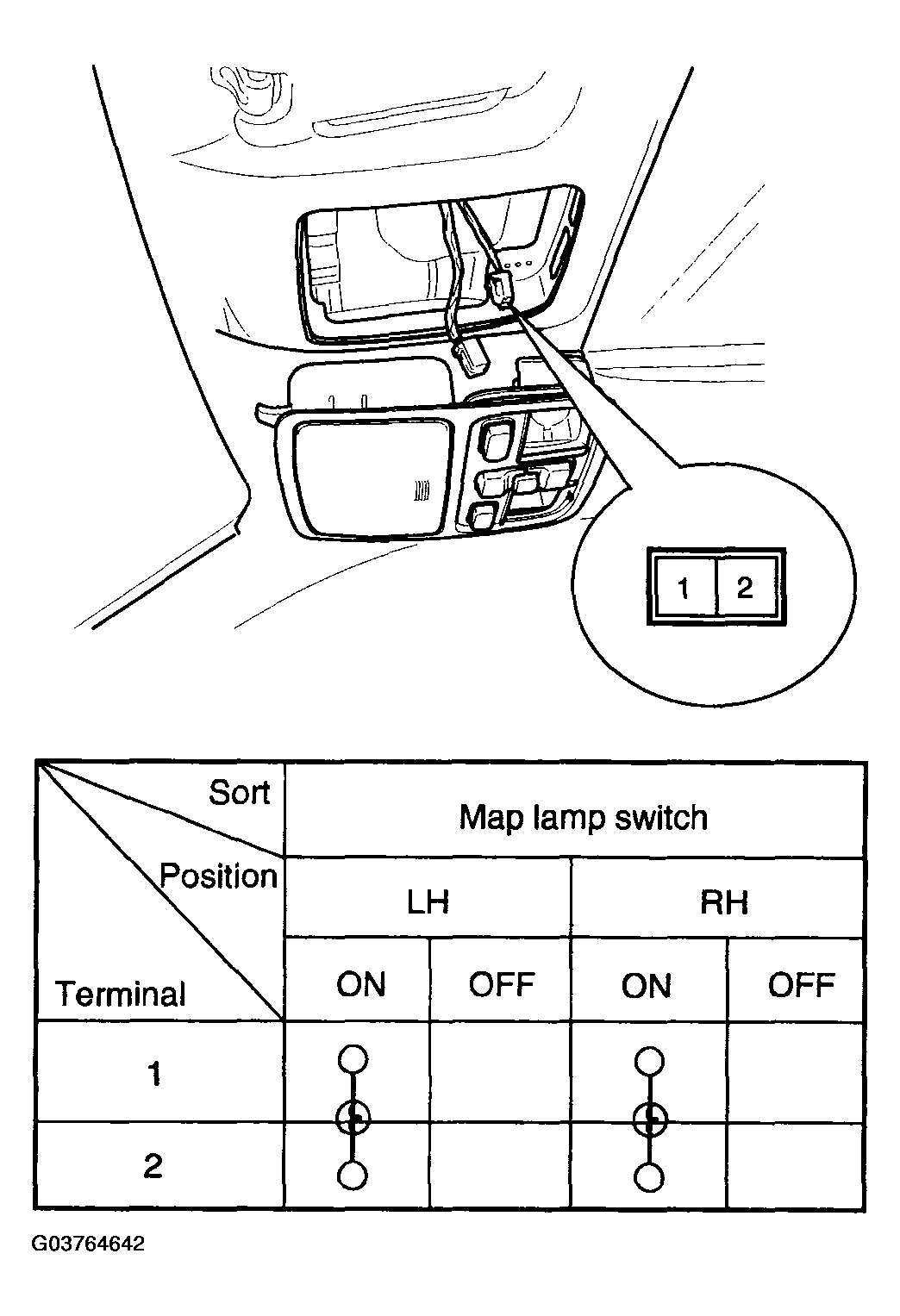

Fig 1: Overhead Console Lamp Assembly Terminals & Continuity Chart

Courtesy of HYUNDAI MOTOR CO.
