Power Steering Gear Box: Components

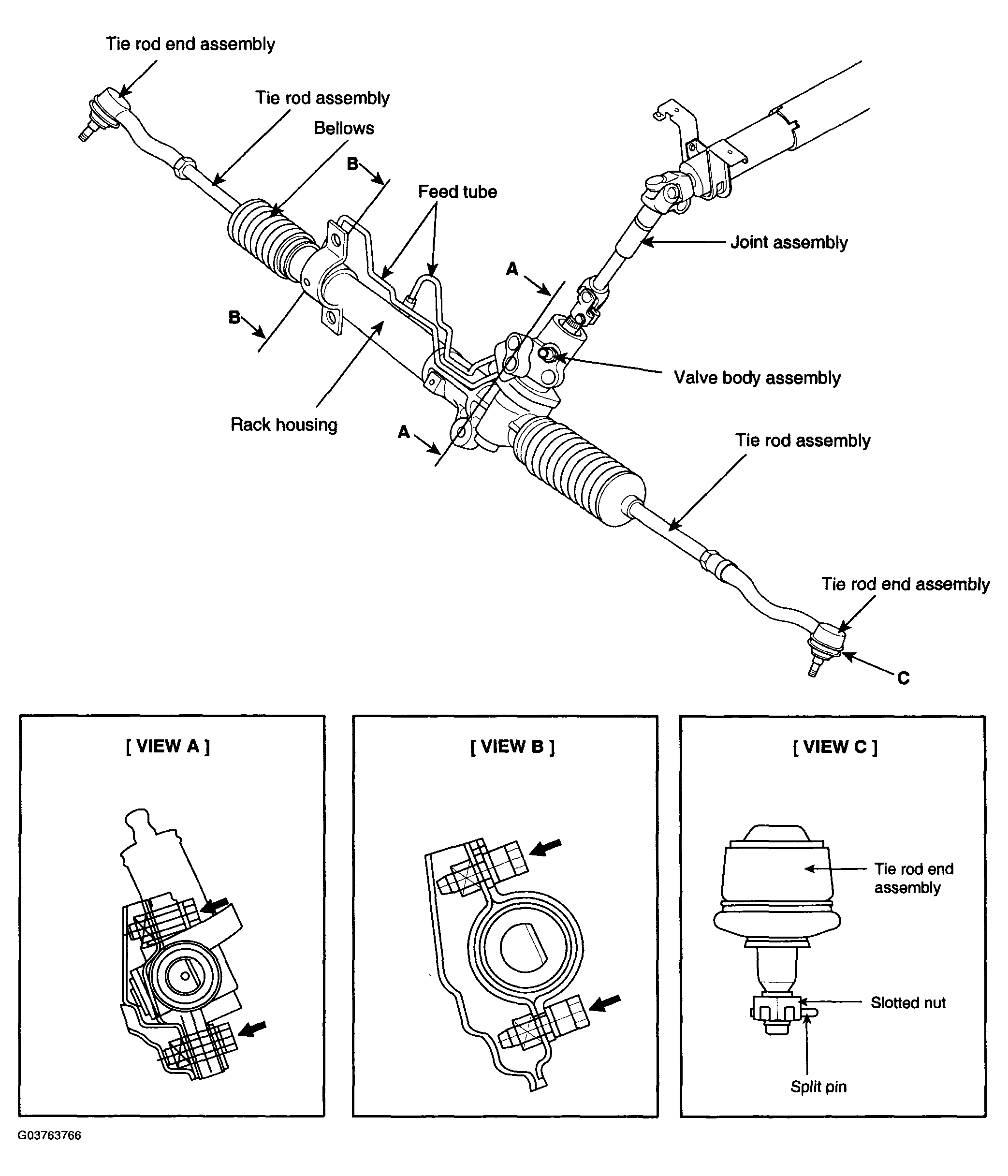

Fig 1: Identifying Power Steering Gear Box Components

G03763766

Courtesy of HYUNDAI MOTOR CO.

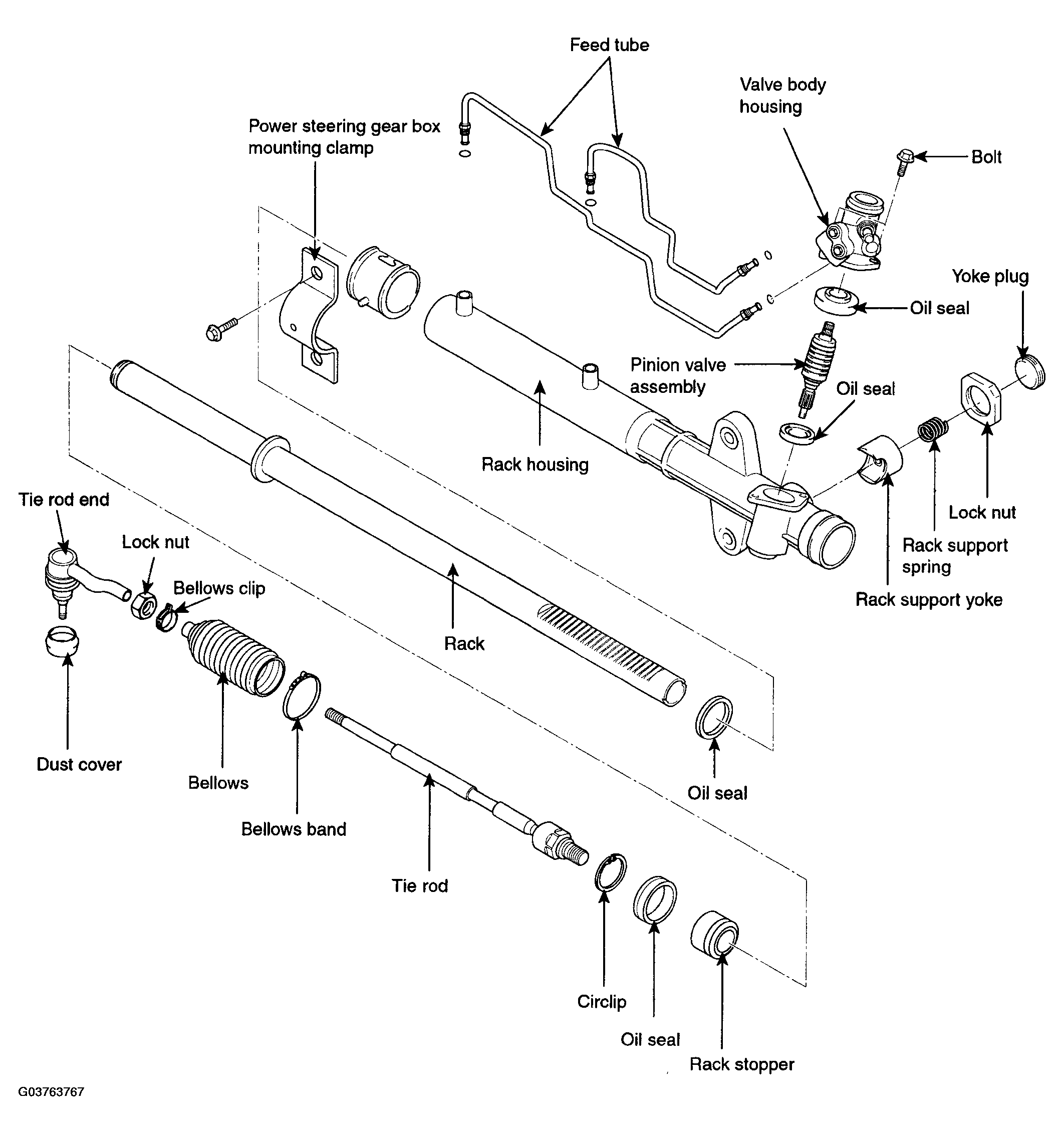

Fig 2: Exploded View Of Power Steering Gear

G03763767

Courtesy of HYUNDAI MOTOR CO.
