Temperature Control Actuator: Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the 7P connector (A) from the temp. actuator (C). Remove the self-tapping screws (B) and the temp. actuator (C) from the heater unit.

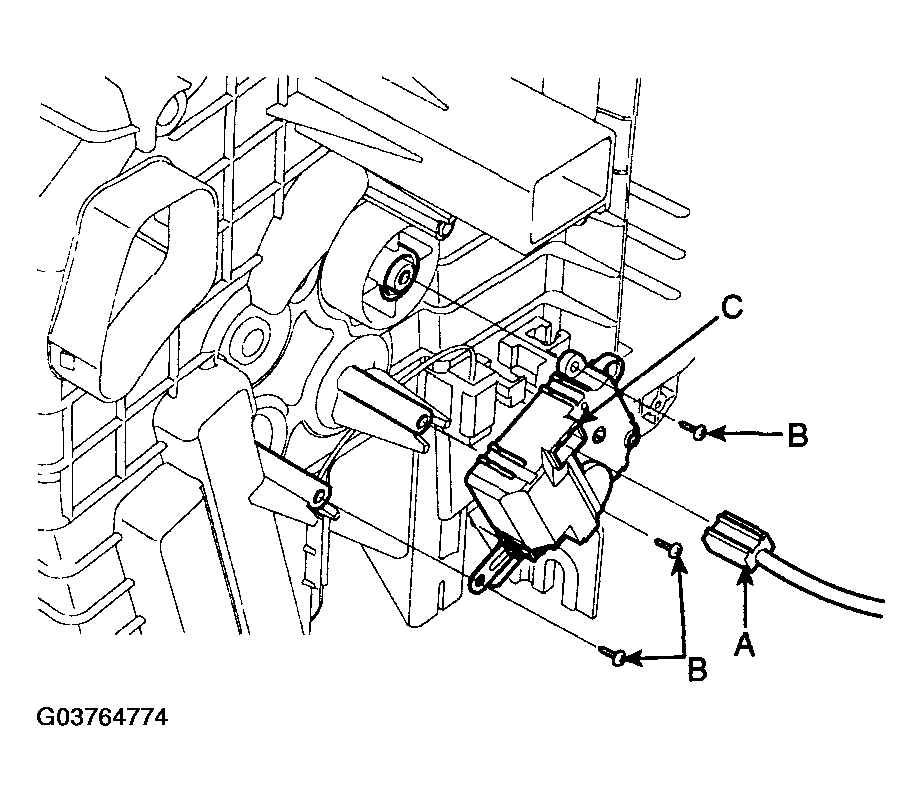

    Fig 1: Identifying Temperature Actuator, 7P Connector & Retaining Screw
    G03764774Courtesy of HYUNDAI MOTOR CO.
  2. Install in the reverse order of removal. After installation, make sure temp. actuator (C) runs smoothly.
