Mode Control Actuator: Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 7P connector (A) from the mode actuator (C). Remove the self-tapping screw (B) and the mode actuator (C) from the heater unit.

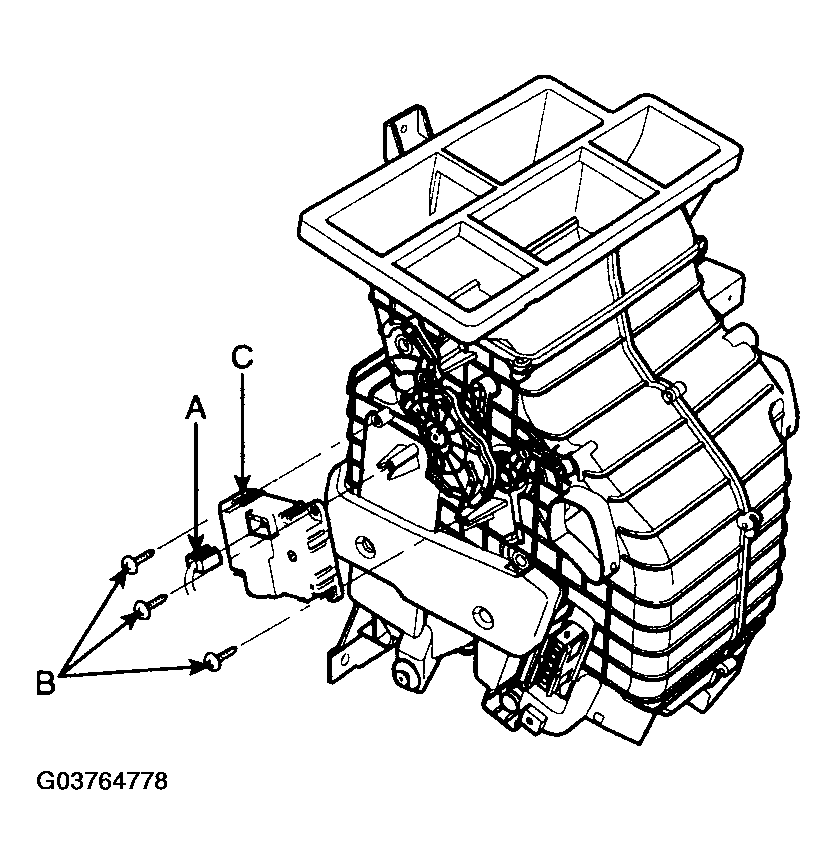

    Fig 1: Identifying Mode Control Actuator, 7P Connector & Retaining Screw
    G03764778Courtesy of HYUNDAI MOTOR CO.
  2. Install in the reverse order of removal. After installation, make sure the mode actuator (C) runs smoothly.
