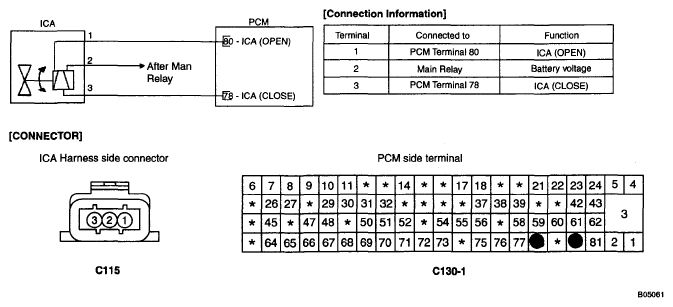

Home >> Hyundai >> 2007 >> Tucson GLS, FWD, Automatic >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G4GC - GSL 2.0) >> DTC Troubleshooting Procedures >> DTC P0506 Idle Air Control System-Rpm Lower Than Expected >> Schematic Diagram
