Deflector Replacement

  1. Open the glass fully.
  2. Disconnect the deflector link (A) from the frame (B), and then remove the deflector (C).
  3. Installation is the reverse of removal.

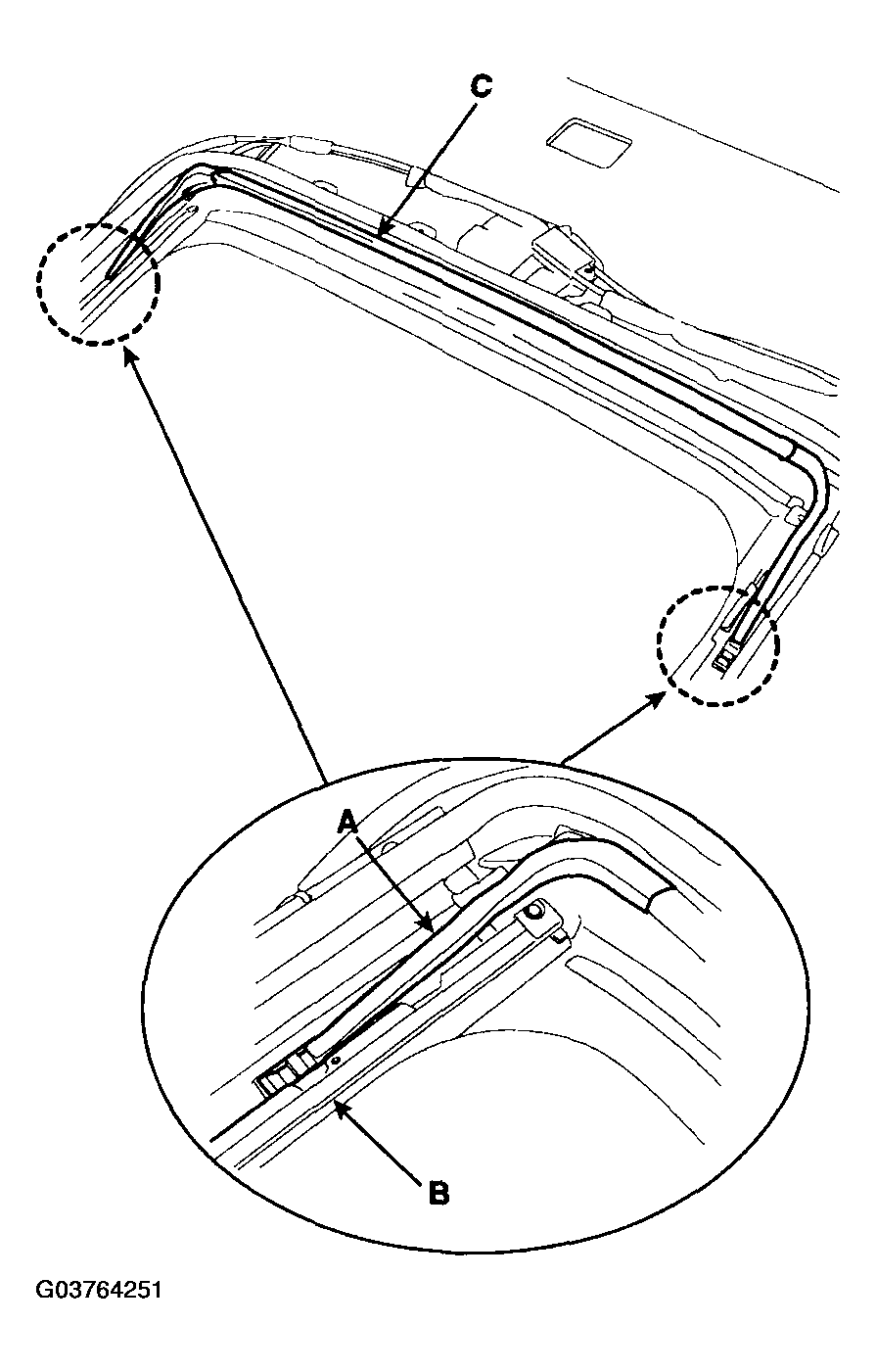

    Fig 1: Identifying Deflector Link And Deflector
    G03764251Courtesy of HYUNDAI MOTOR CO.
