Trunk Area

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trims.
    NOTE:
    • Put on gloves to protect your hands.
    • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
    • Take care not to bend or scratch the trim and panels.
  2. Installation is the reverse of removal, and replace any damaged clips.

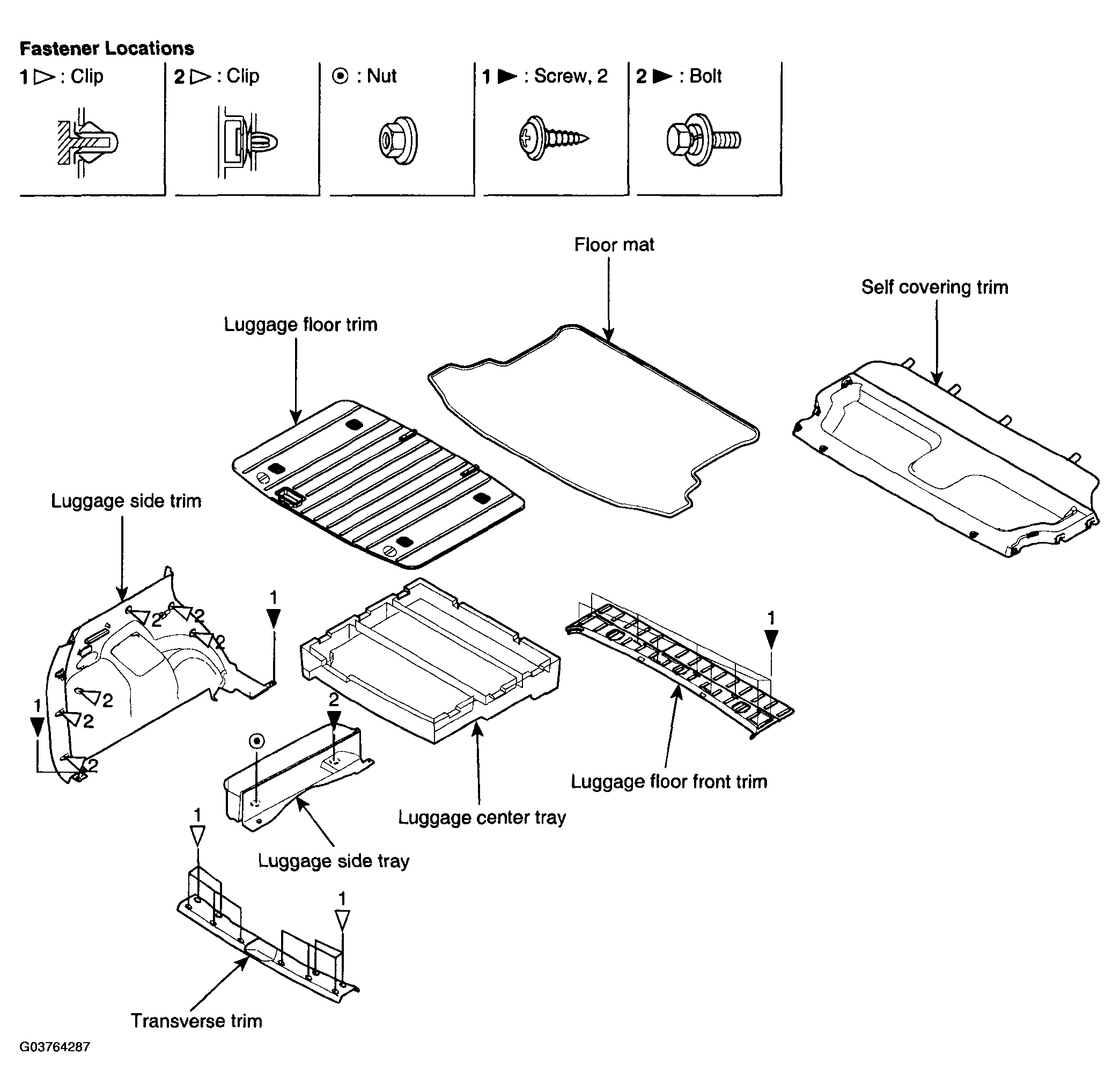

    Fig 1: Identifying Trunk Area Interior Trim
    G03764287Courtesy of HYUNDAI MOTOR CO.
