Cover Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • When prying with a screwdriver, wrap it with protective tape, and apply protective tape around the related parts to prevent damage.
  • Take care not to scratch the crash pad, body and other related parts.
  • Put on gloves to protect your hands.

Remove the crash pad side cover (A), front console side covers (B).

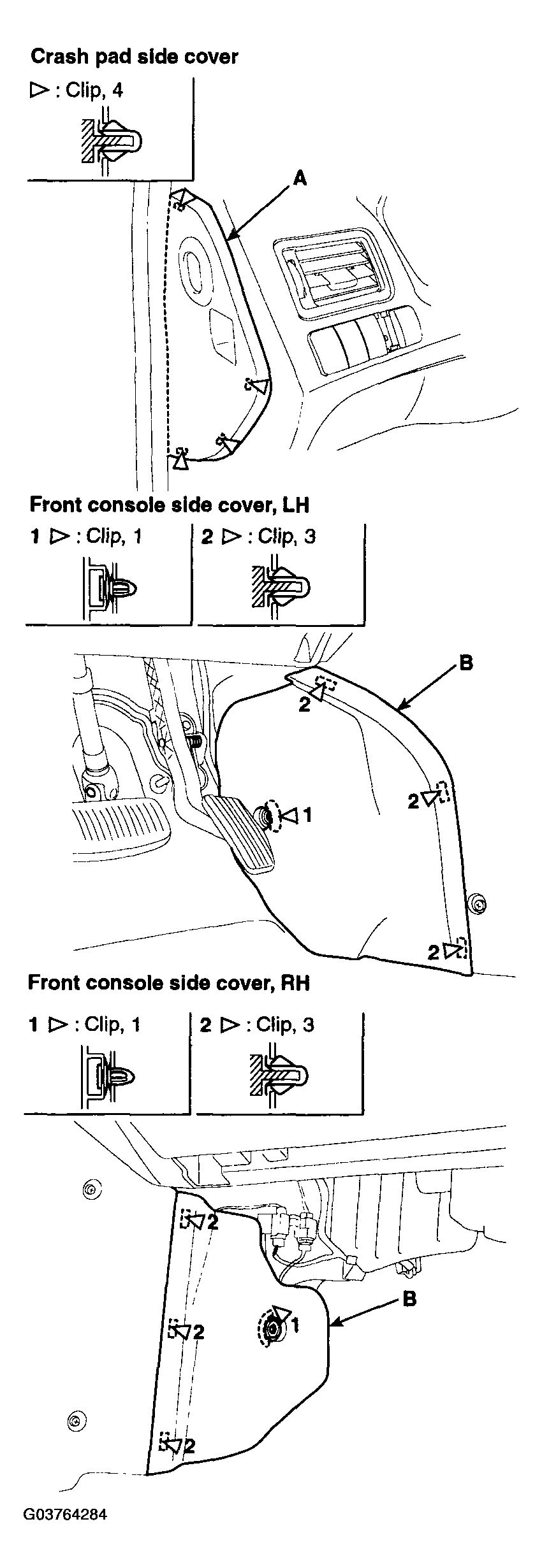

Fig 1: Removing Crash Pad Side Cover, Front Console Side Cover
G03764284Courtesy of HYUNDAI MOTOR CO.
