Cluster Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cluster facia panel (See CLUSTER FACIAL PANEL REPLACEMENT ).
  2. Loosen the screws.

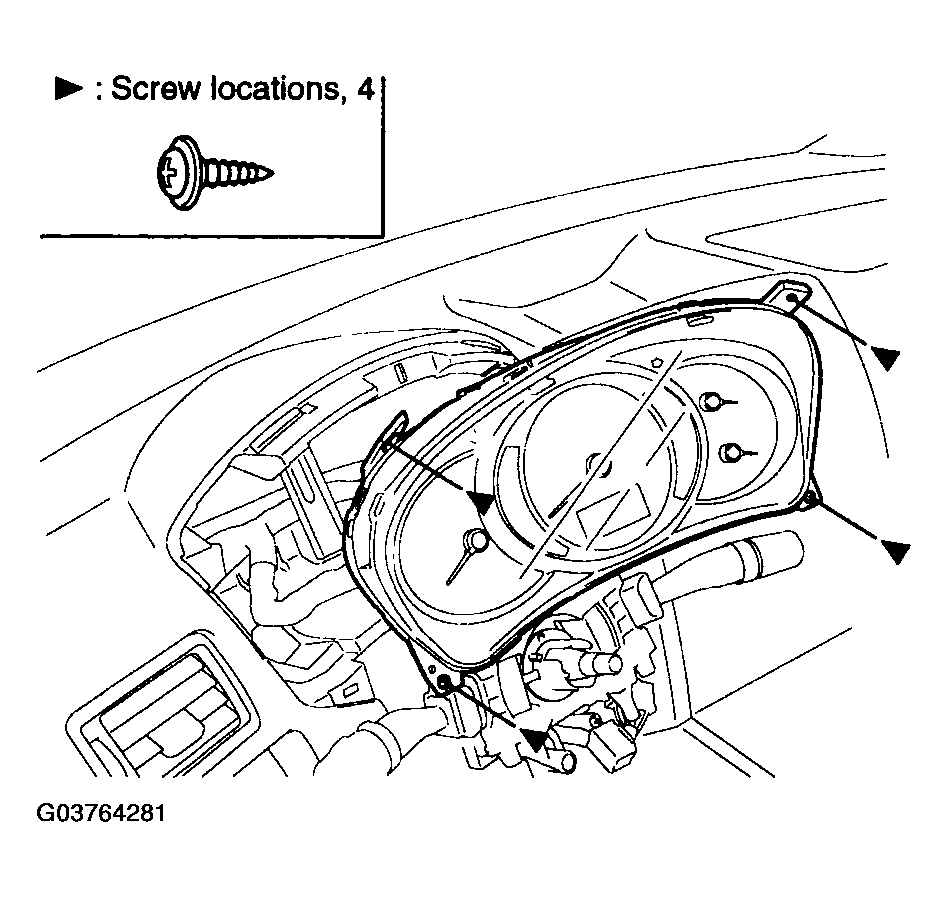

    Fig 1: Loosening Screws
    G03764281Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the cluster connector (A), then remove the cluster (B).

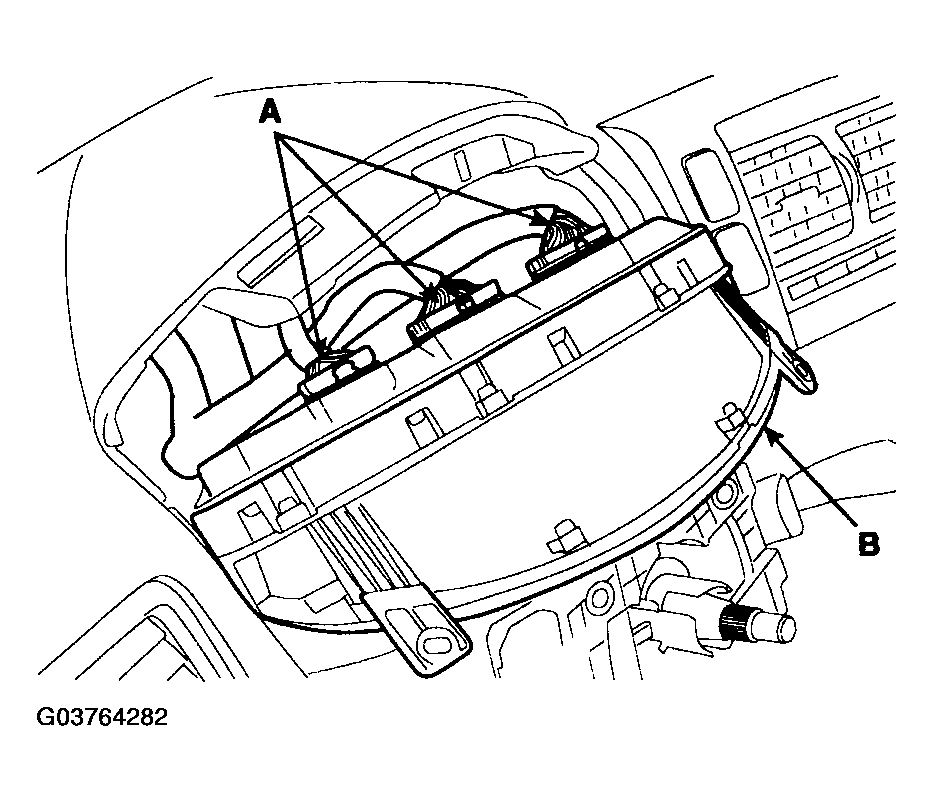

    Fig 2: Removing Cluster Connectors And Cluster
    G03764282Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE: Make sure the connector is plugged in properly.
