Audio Assembly Replacement

WARNING: This page is about a different car, the 2008 Hyundai Tucson. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center facia panel (See CLUSTER FACIAL PANEL REPLACEMENT ).
  2. Loosen the screws.

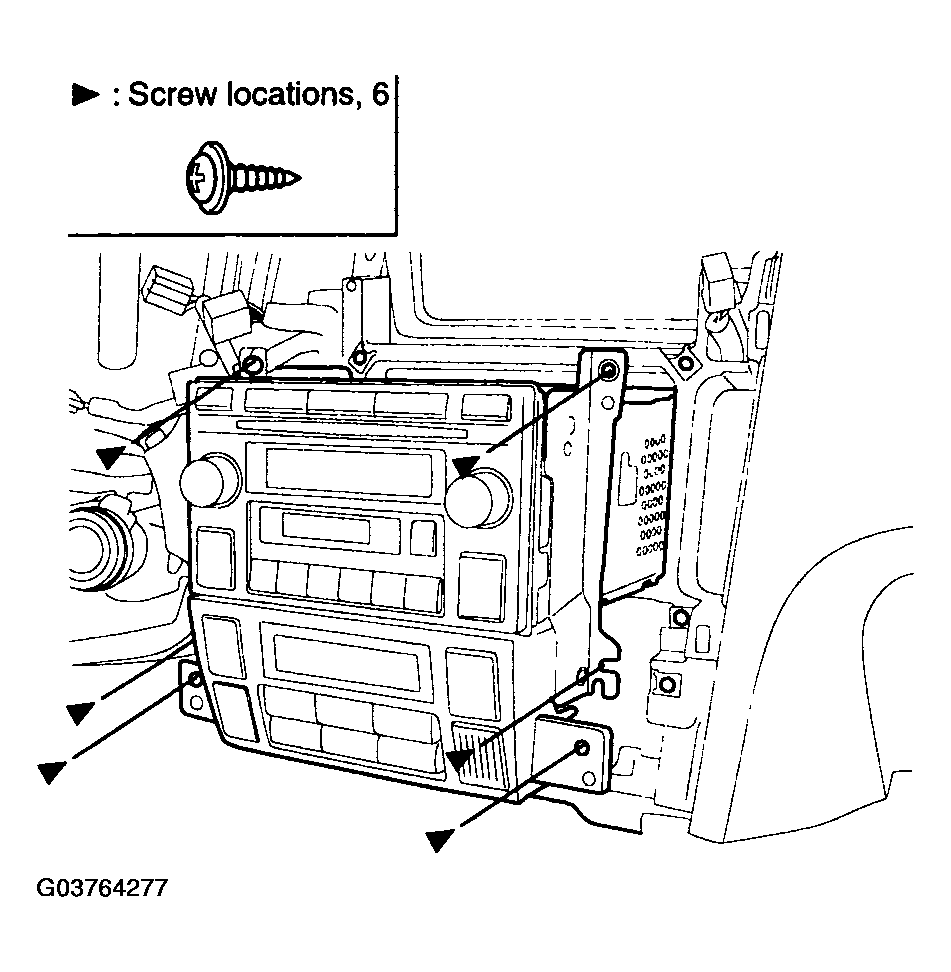

    Fig 1: Locating Screws
    G03764277Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the audio connector (A) and antenna cable (B), then remove the audio assembly (C).

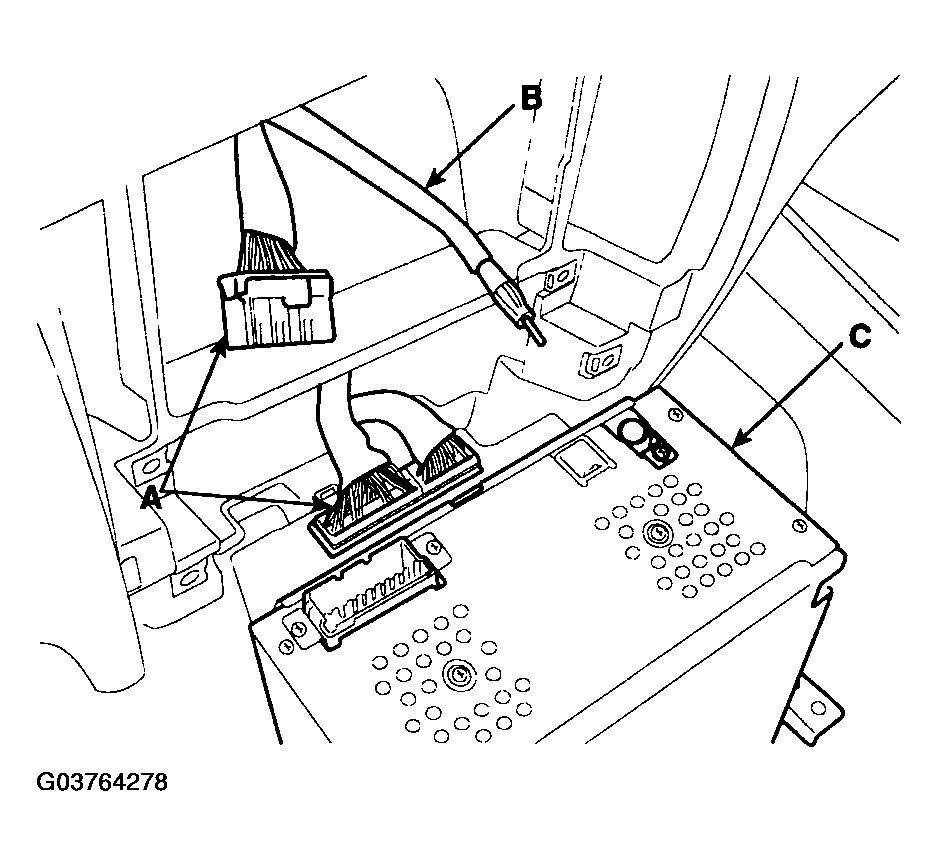

    Fig 2: Identifying Audio Connectors, Antenna Cable & Audio Assembly
    G03764278Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE: Make sure the connector is plugged in properly.
