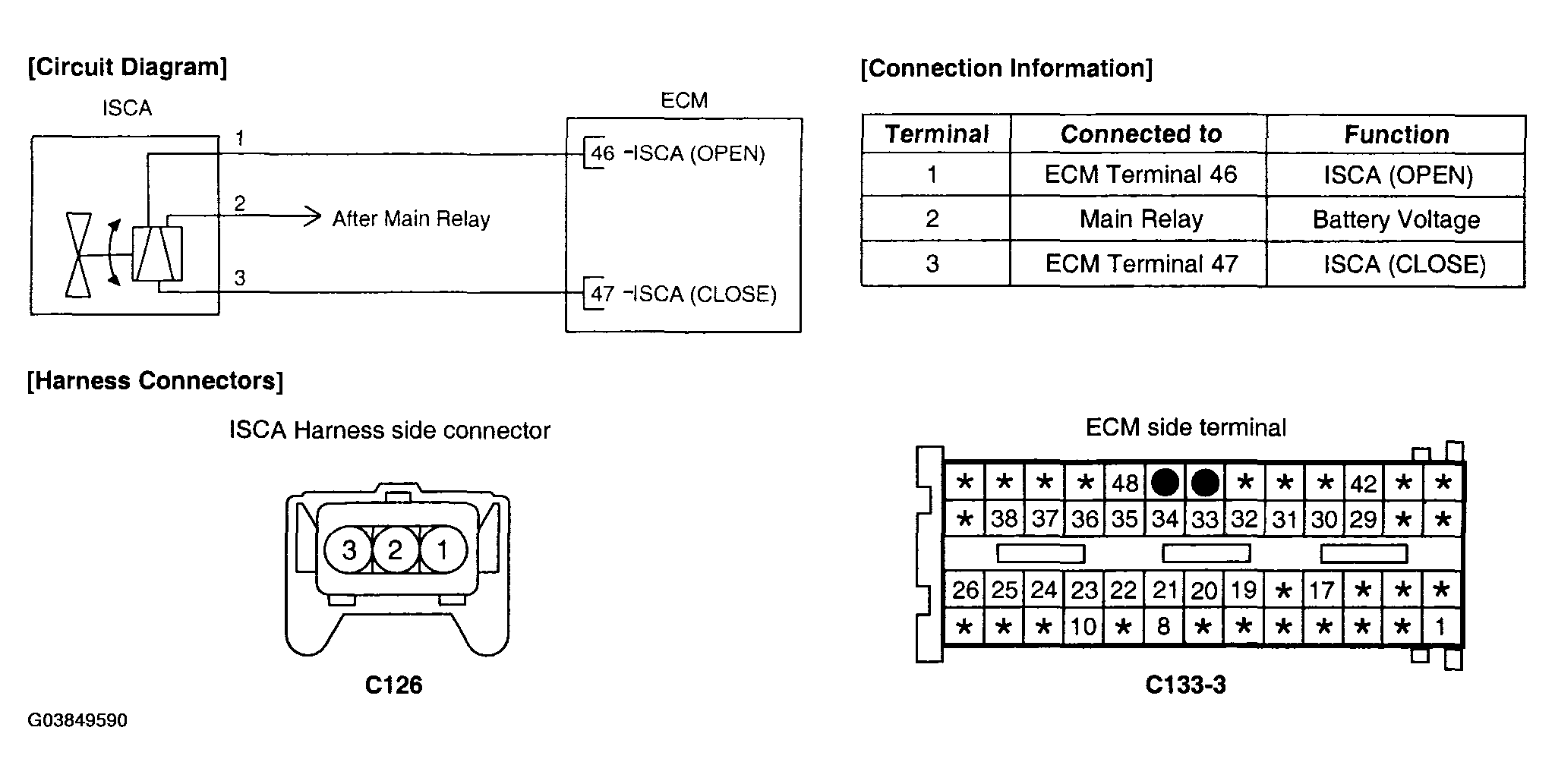

Home >> Hyundai >> 2007 >> Tiburon SE >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6BA-GSL 2.7L) >> DTC Troubleshooting Procedures >> DTC P0506 Idle Air Control System-Rpm Lower Than Expected >> Schematic Diagram
