Component Location

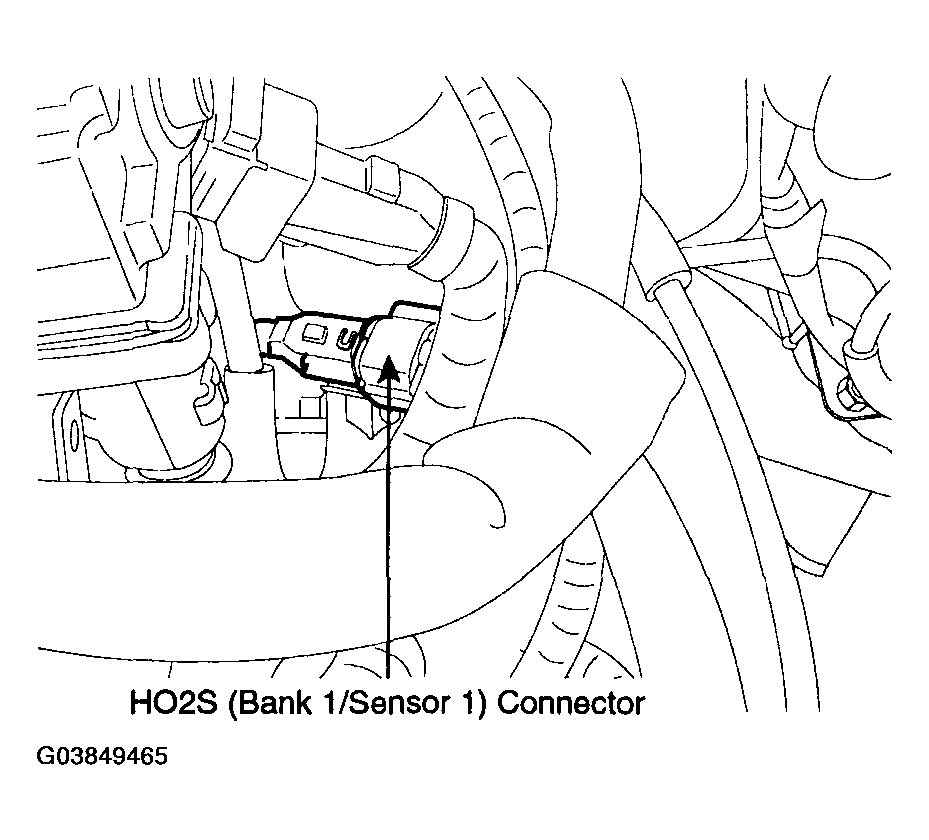

Fig 1: Identifying HO2S (Bank 1/Sensor 1) Connector
G03849465Courtesy of HYUNDAI MOTOR CO.
