Automatic Transaxle System (F4A42): Troubleshooting: Notes

(F4A42 MODEL)

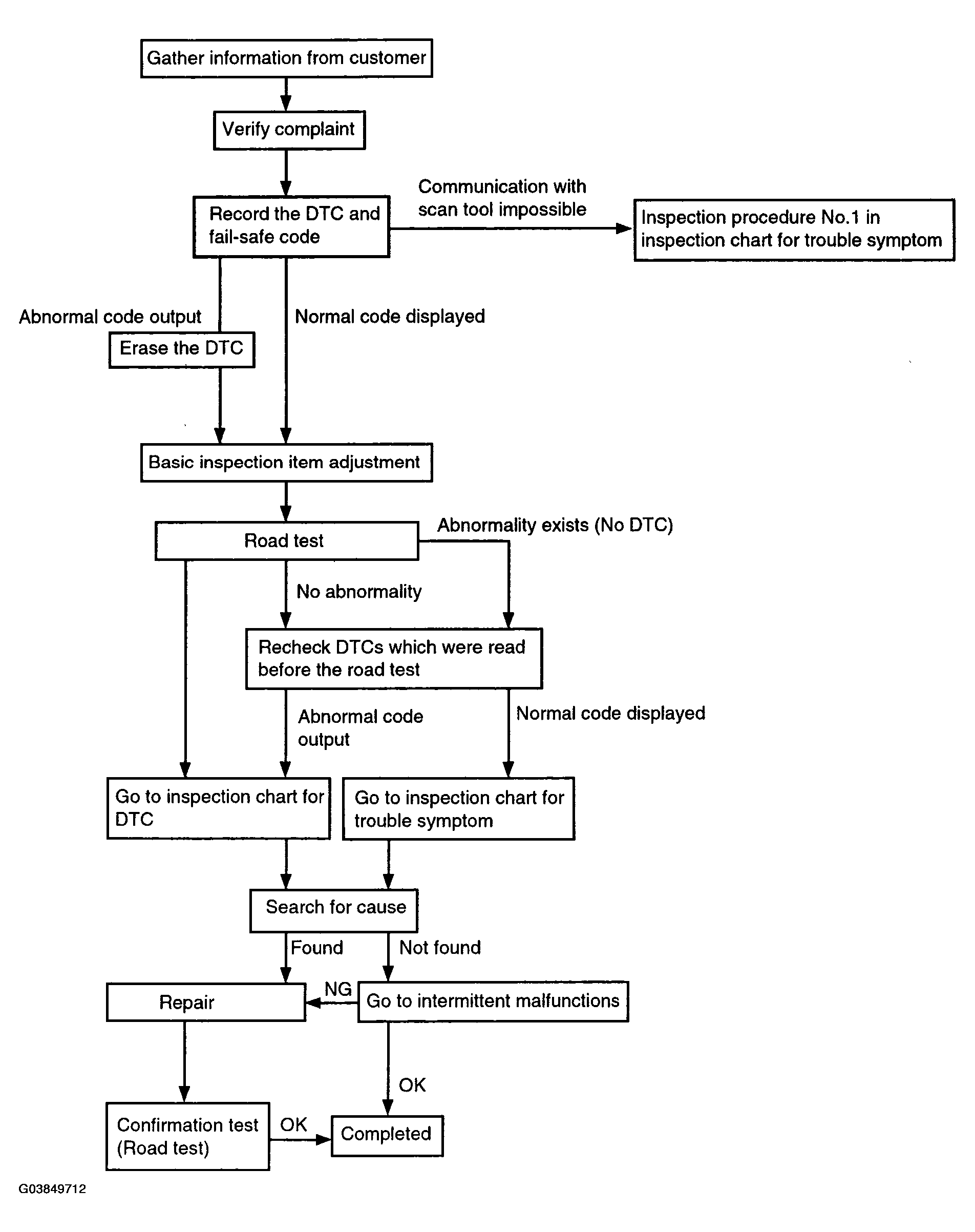

Fig 1: Automatic Transaxle System Troubleshooting Flow Chart

G03849712

Courtesy of HYUNDAI MOTOR CO.
