Special Tools
SPECIAL TOOLS DESCRIPTION
| Tool (Number and name) | Illustration | Use |
|---|---|---|

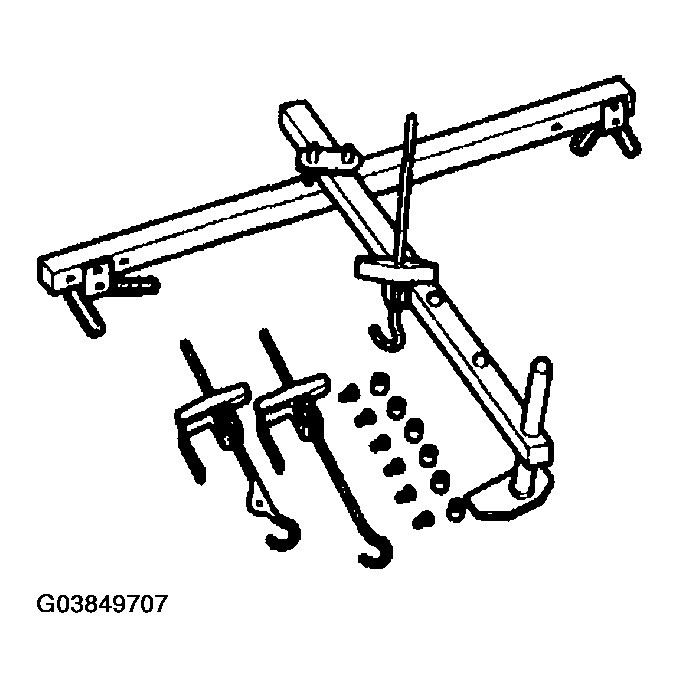

| Engine support fixture J28467-B |
|
Removal and installation of transaxle assembly |

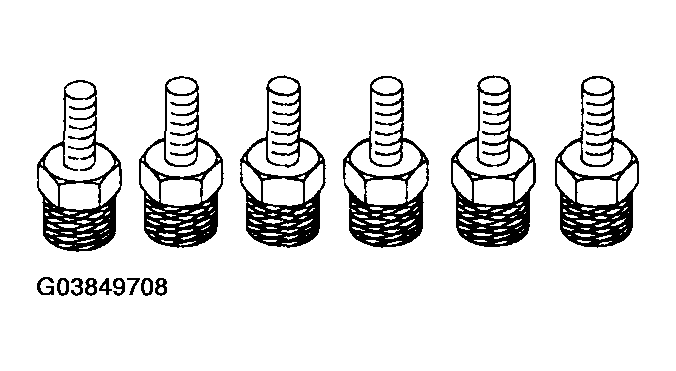

| Engine support adapters J28467-125 |
|
Use with J28467-B |

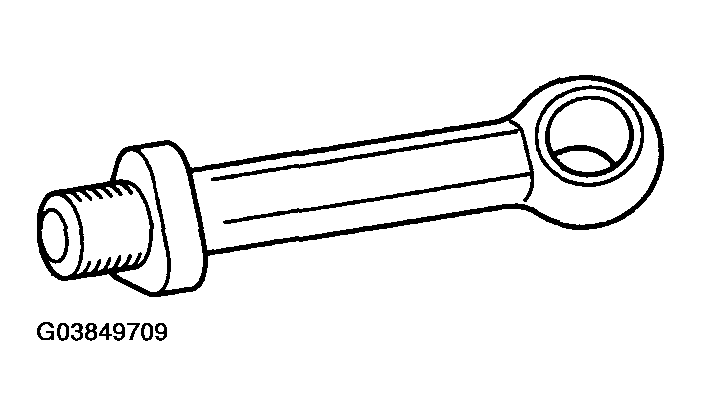

| 09452-21001 Oil pressure gauge adapter |
|
Measurement of the oil pressure (use with 09452-21500 and 09452-21002). |

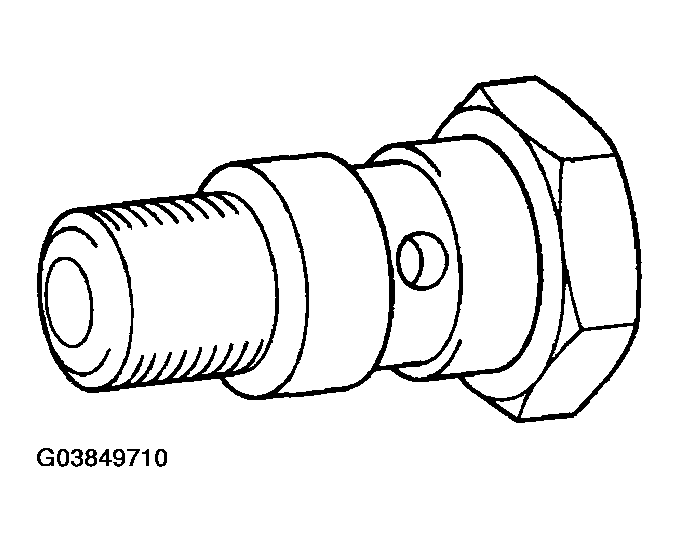

| 09452-21002 Oil pressure gauge adapter |
|
Measurement of the oil pressure, (use with 09452-21500 and 09452-21001) |

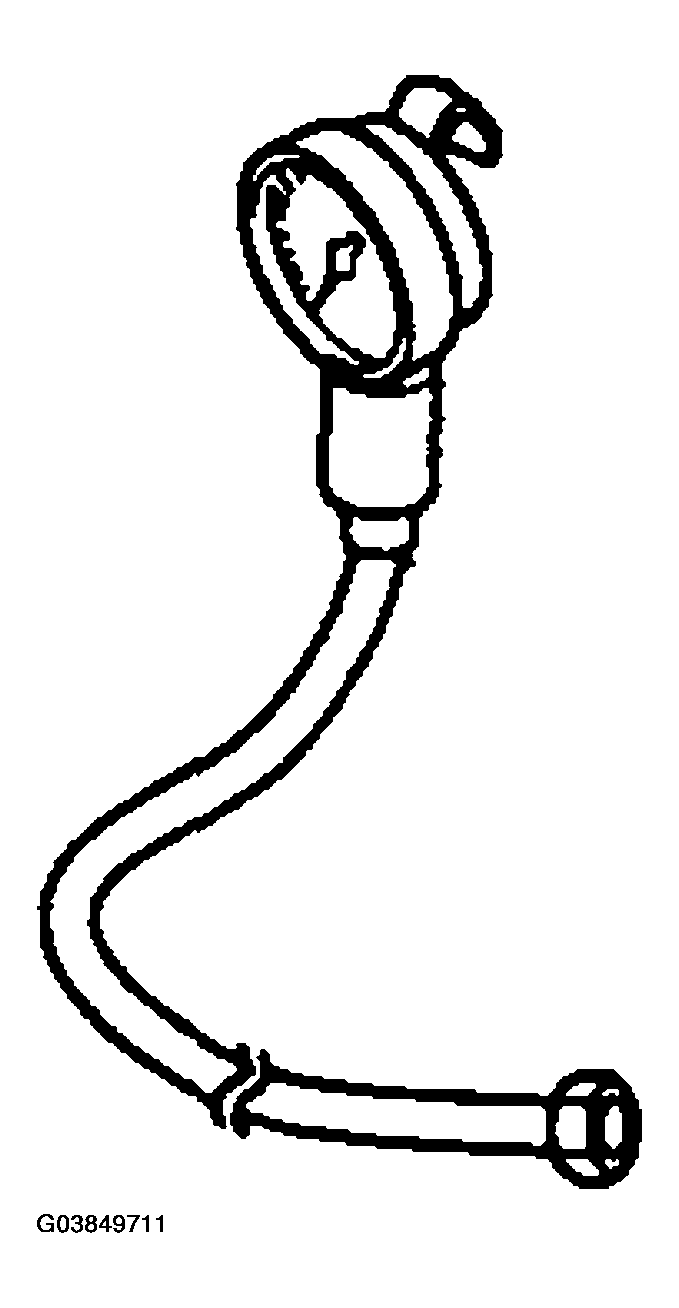

| 09452-21500 Oil pressure gauge |
|
Measurement of the oil pressure, (use with 09452-21001 and 09452-21002) |
