Inspection Procedure 9

INSPECTION PROCEDURE 9

Shocks when changing from N to D, N to R and large time lag	Possible cause
If abnormal shocks or a time lag of 2 seconds or more occurs when the selector lever is shifted from N to D, N to R range while the engine is idling, the cause may be abnormal line pressure or a malfunction of the oil pump or valve body.	Abnormal line pressure Malfunction of the oil pump Malfunction of the valve body

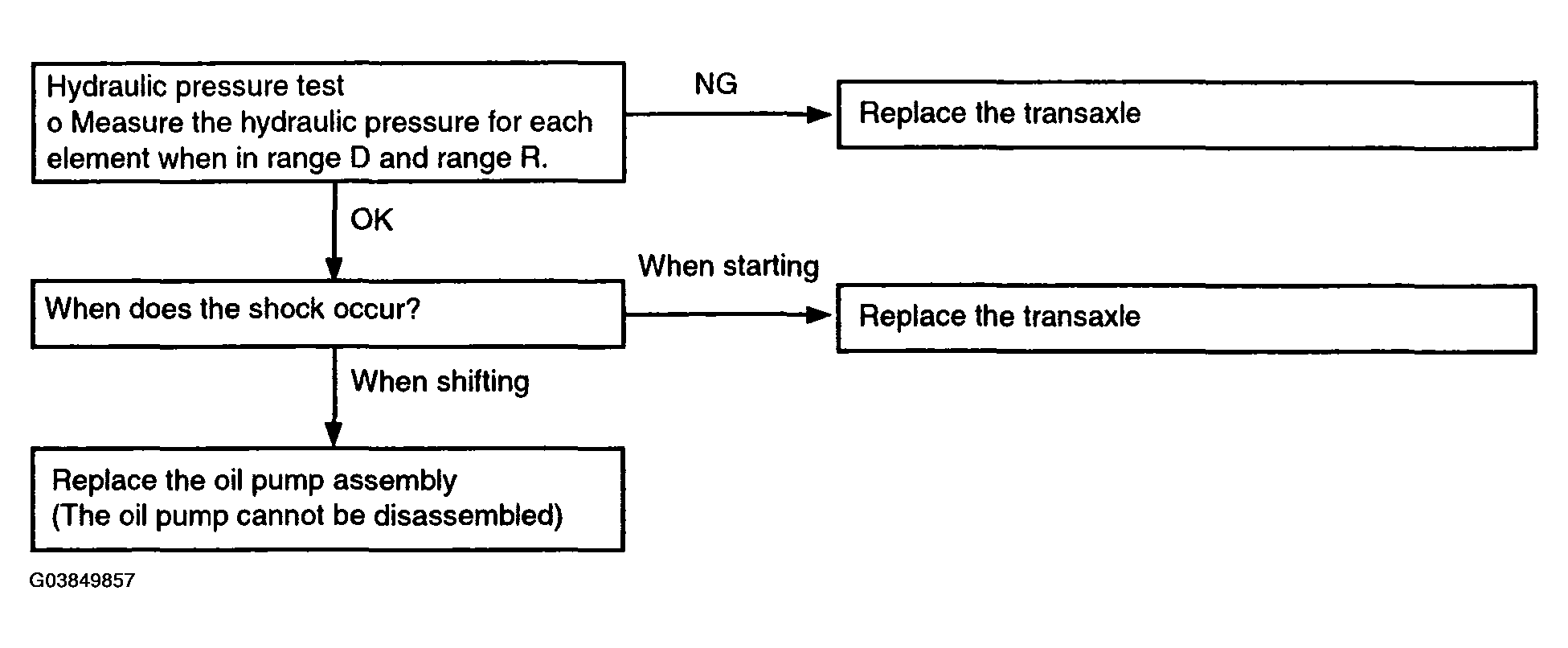

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Shocks When Changing From N To D, N To R And Range Lag Time)

Courtesy of HYUNDAI MOTOR CO.
