Inspection Procedure 6

INSPECTION PROCEDURE 6

Engine stalling when shifting	Possible cause
If the engine stalls when the selector lever is shifted from N to D or R range while the engine is idling, the cause may be a malfunction of the engine system, torque converter clutch solenoid, valve body or torque converter (torque converter clutch malfunction).	Malfunction of the engine system Malfunction of the torque converter clutch solenoid Malfunction of the valve body Malfunction of the torque converter (Malfunction of the torque converter clutch)

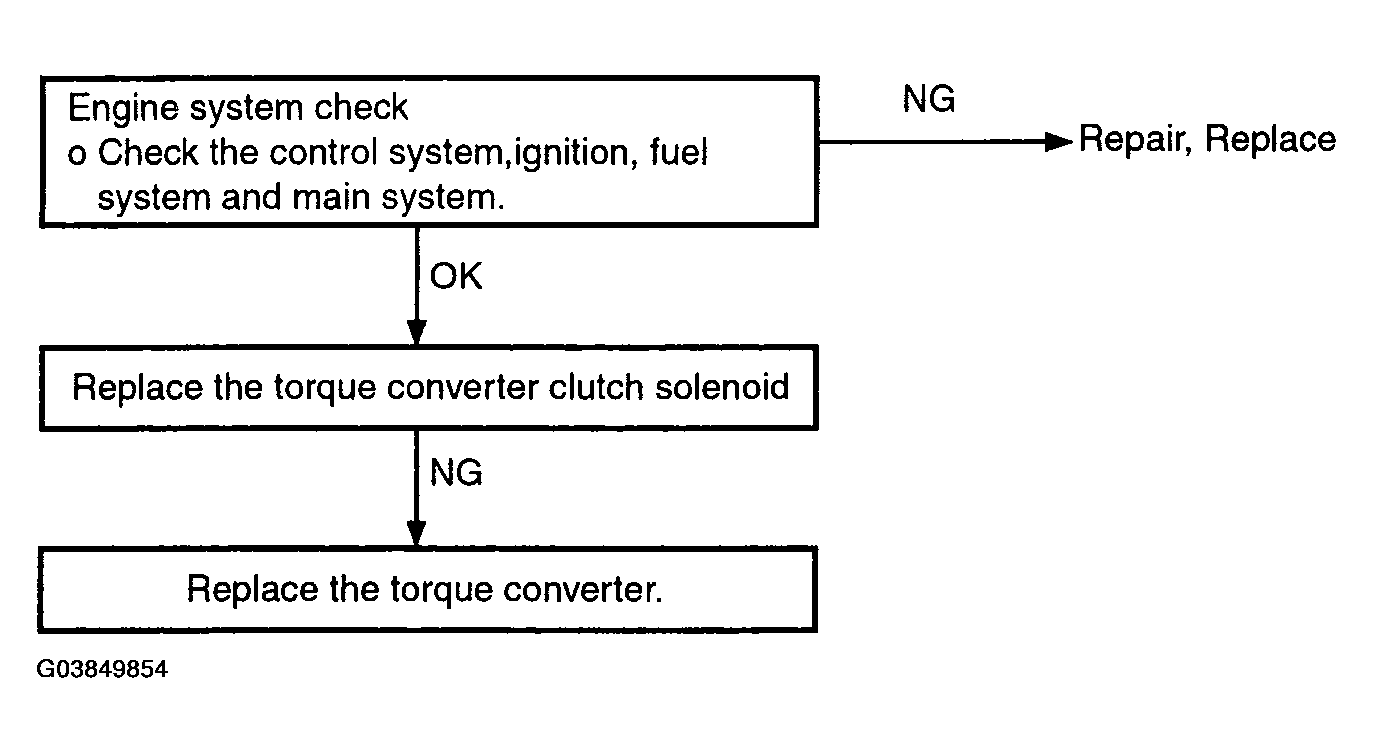

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Engine Stalling When Shifting)

Courtesy of HYUNDAI MOTOR CO.
