Inspection Procedure 5

INSPECTION PROCEDURE 5

Does not move (forward or reverse)	Possible cause
If the vehicle does not move forward or reverse when the selector lever is shifted to any position while the engine is idling, the cause may be abnormal line pressure, or a malfunction of the power train, oil pump or valve body.	Abnormal line pressure Malfunction of the underdrive solenoid valve Malfunction of the underdrive clutch Malfunction of the valve body

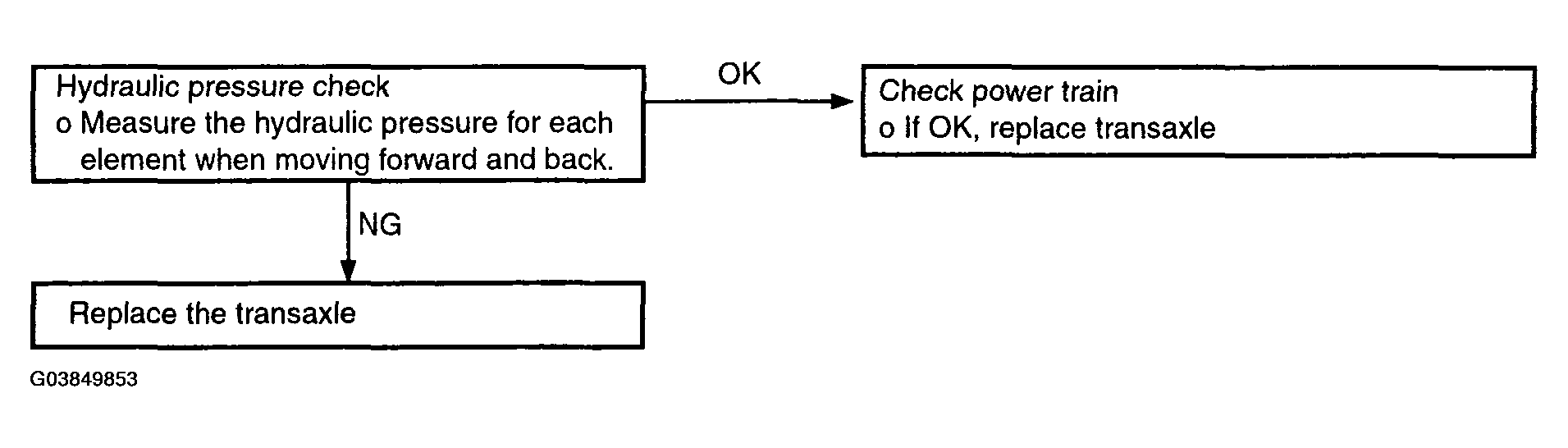

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Does Not Move - Forward or Reverse)

Courtesy of HYUNDAI MOTOR CO.
