Inspection Procedure 4

INSPECTION PROCEDURE 4

Does not reverse	Possible cause
If the vehicle does not reverse when the selector lever is shifted from N to R range while the engine is idling, the cause may be abnormal pressure in the reverse clutch or low and reverse brake or a malfunction of the reverse clutch, low and reverse brake or valve body.	Abnormal reverse clutch pressure Abnormal low and reverse brake pressure Malfunction of the low and reverse solenoid valve Malfunction of the reverse clutch Malfunction of the low and reverse brake Malfunction of the valve body

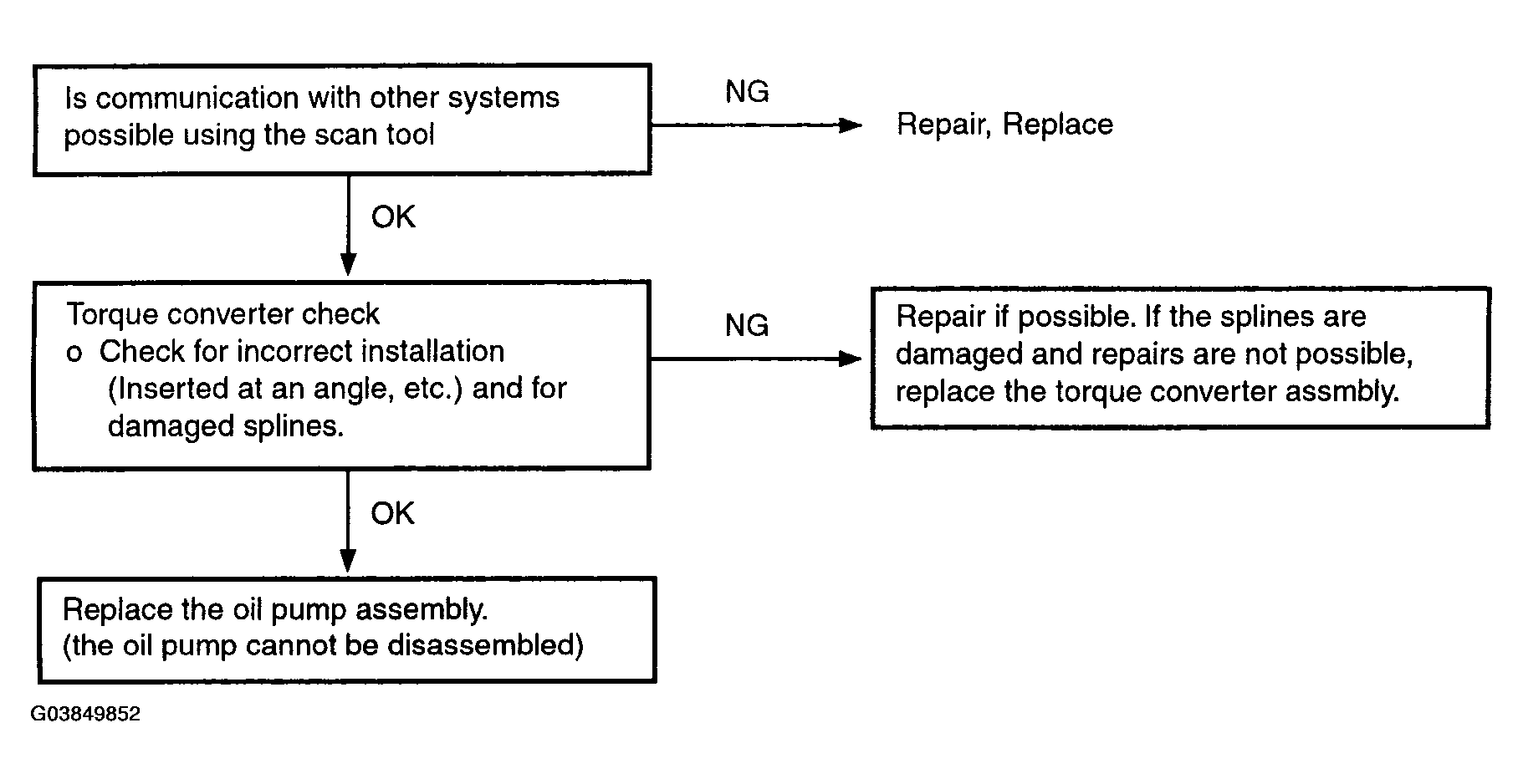

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Does Not Reverse)

Courtesy of HYUNDAI MOTOR CO.
