Inspection Procedure 3

INSPECTION PROCEDURE 3

Does not move	Possible cause
If the vehicle does not move forward when the selector lever is shifted from N to D range while the engine is idling, the cause may be abnormal line pressure or a malfunction of the underdrive clutch or valve body.	Abnormal line pressure Malfunction of the underdrive solenoid valve Malfunction of the underdrive clutch Malfunction of the valve body

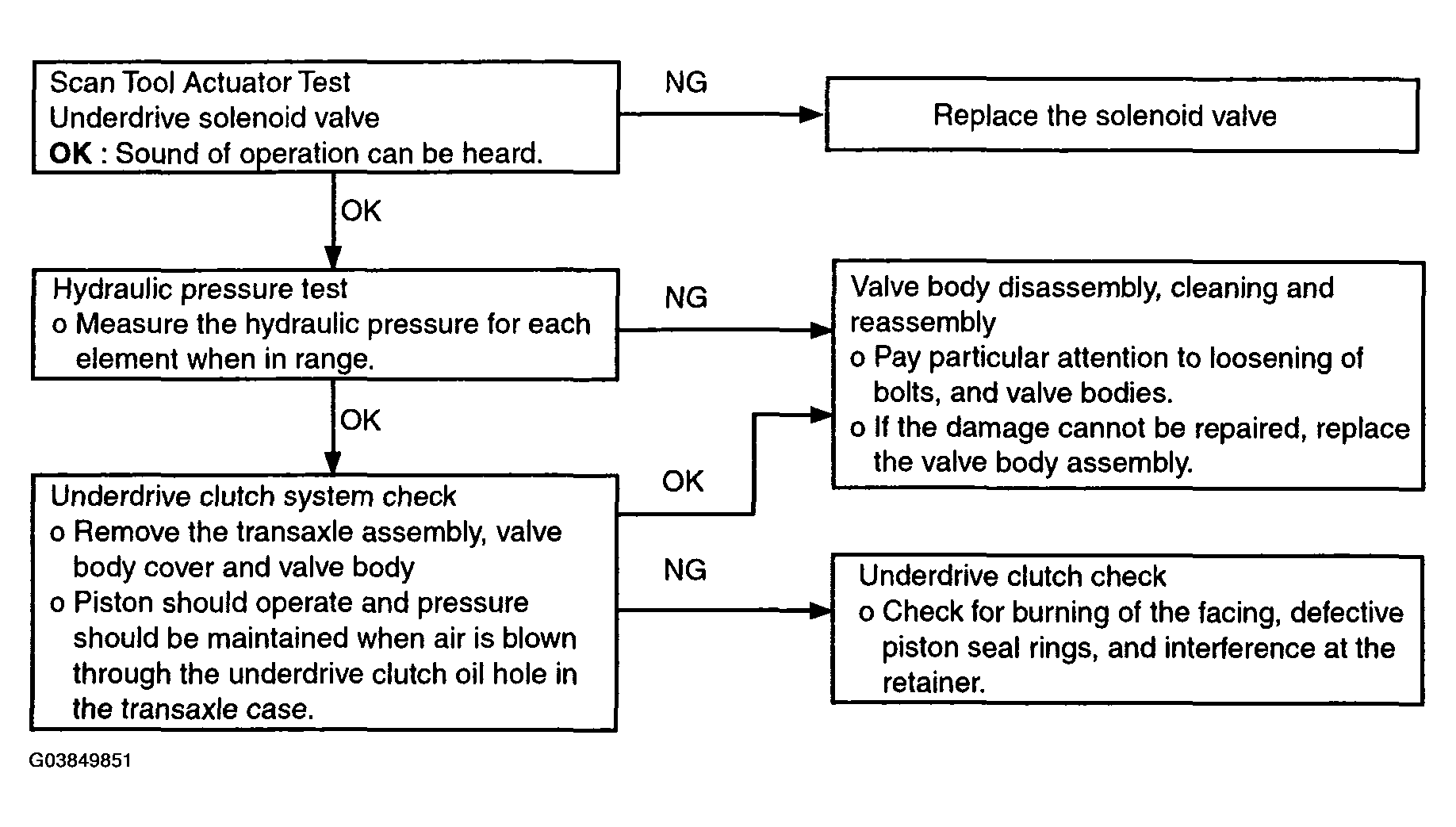

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Does Not Move)

Courtesy of HYUNDAI MOTOR CO.
