Inspection Procedure 2

INSPECTION PROCEDURE 2

Starting impossible Possible cause
Starting is not possible when the selector lever is in P or N range. In such cases, the cause may be a defective engine system, torque converter or oil pump.
  • Malfunction of the engine system
  • Malfunction of the torque converter
  • Malfunction of the oil pump

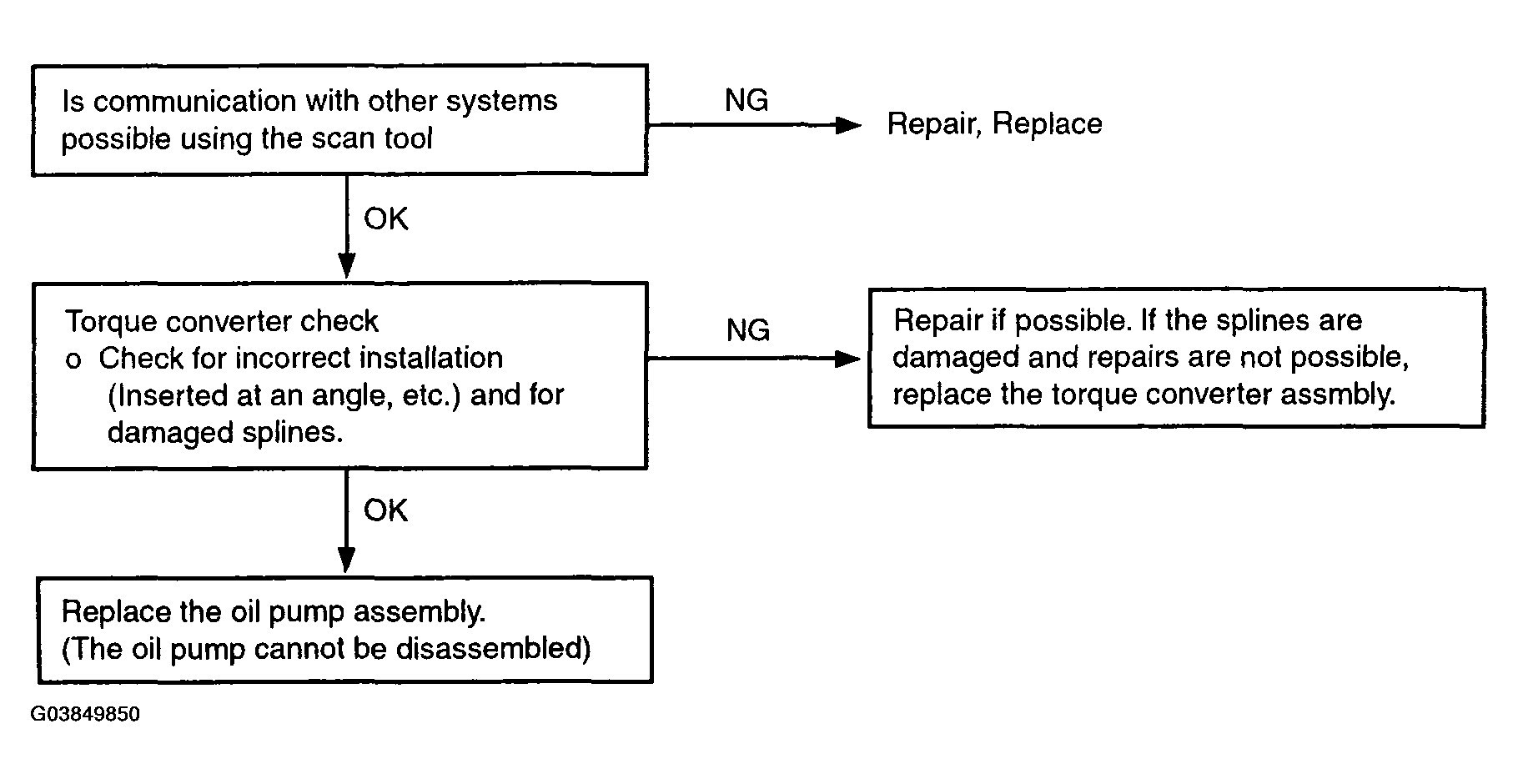

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Starting Impossible)
G03849850Courtesy of HYUNDAI MOTOR CO.
