Inspection Procedure 13

INSPECTION PROCEDURE 13

No diagnostic trouble codes (Does not shift) Possible cause
If shifting does not occur while driving and no diagnostic trouble codes are given, the cause may be a malfunction of the Park/Neutral position switch, or TCM.
  • Malfunction of the Park/Neutral position switch
  • Malfunction of the TCM

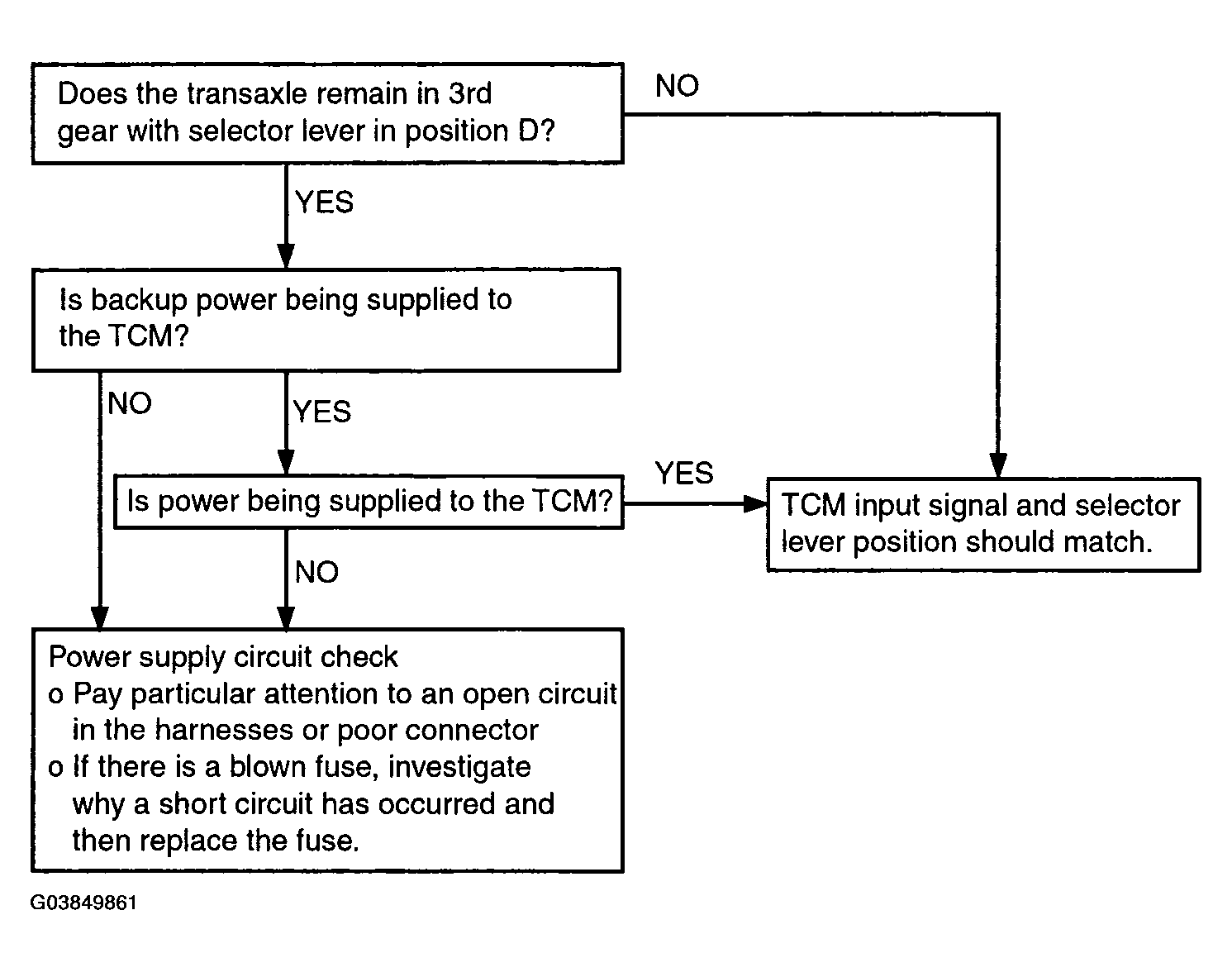

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (No Diagnostic Trouble Codes - Does Not Shift)
G03849861Courtesy of HYUNDAI MOTOR CO.
