Inspection Procedure 12

INSPECTION PROCEDURE 12

Some points (Displaced shifting points) Possible cause
If some of the shift points are displaced while driving, the cause may be a malfunction of the valve body, or it is related to control and is not an abnormality.
  • Malfunction of the valve body

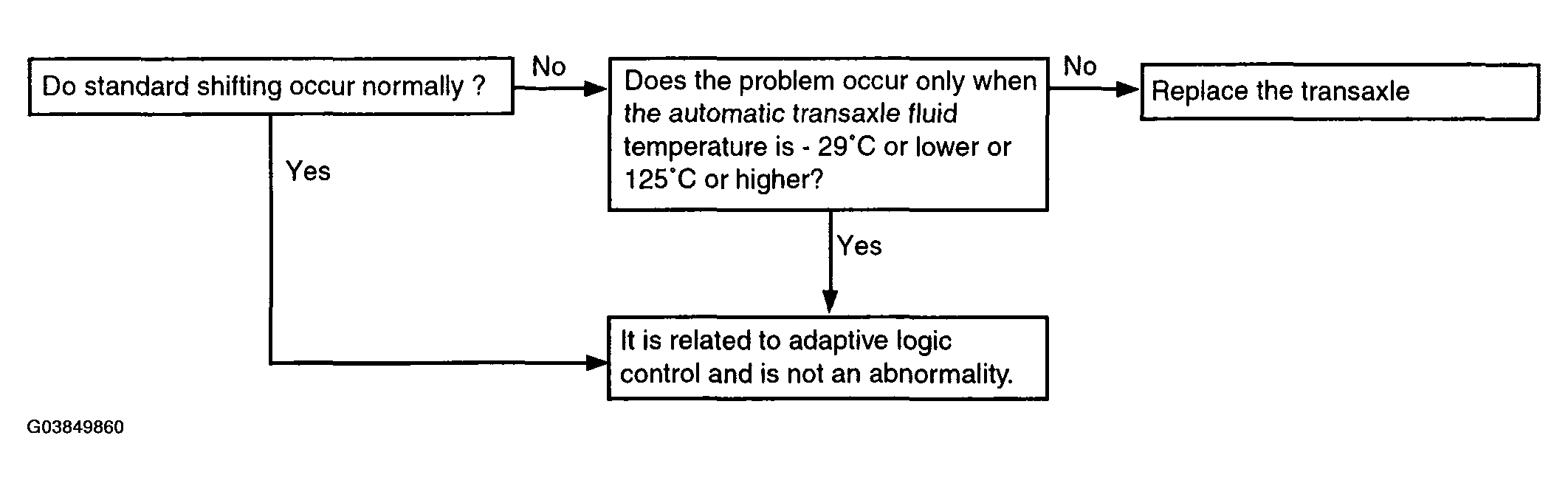

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Some Points - Displaced Shifting Points)
G03849860Courtesy of HYUNDAI MOTOR CO.
