Inspection Procedure 11

INSPECTION PROCEDURE 11

All points (Displaced shifting points) Possible cause
If all shift points are displaced while driving, the cause may be a malfunction of the output shaft speed sensor, TPS or a solenoid valve.
  • Malfunction of the output shaft speed sensor
  • Malfunction of the throttle position sensor
  • Malfunction of each solenoid valve
  • Abnormal line pressure
  • Malfunction of the valve body
  • Malfunction of the TCM

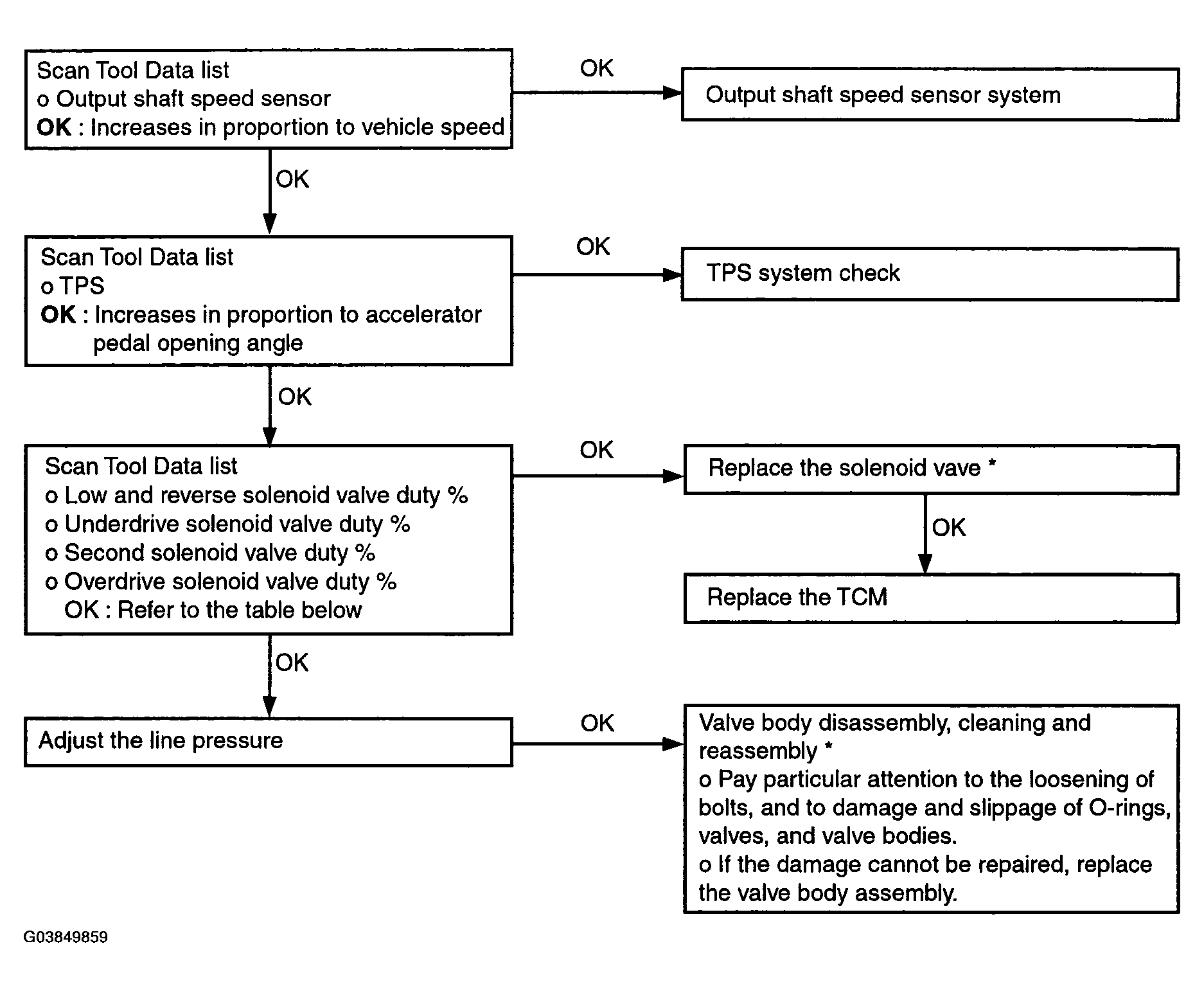

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (All Points - Displaced Shifting Points)
G03849859Courtesy of HYUNDAI MOTOR CO.
