Inspection Procedure 10

INSPECTION PROCEDURE 10

Shocks and running up	Possible cause
If shocks occur when driving due to upshifting or downshifting and the transaxle speed becomes higher than the engine speed, the cause may be abnormal line pressure or a malfunction of a solenoid valve, oil pump, valve body or of a brake or clutch.	Abnormal line pressure Malfunction of each solenoid valve Malfunction of the oil pump Malfunction of the valve body Malfunction of each brake or each clutch

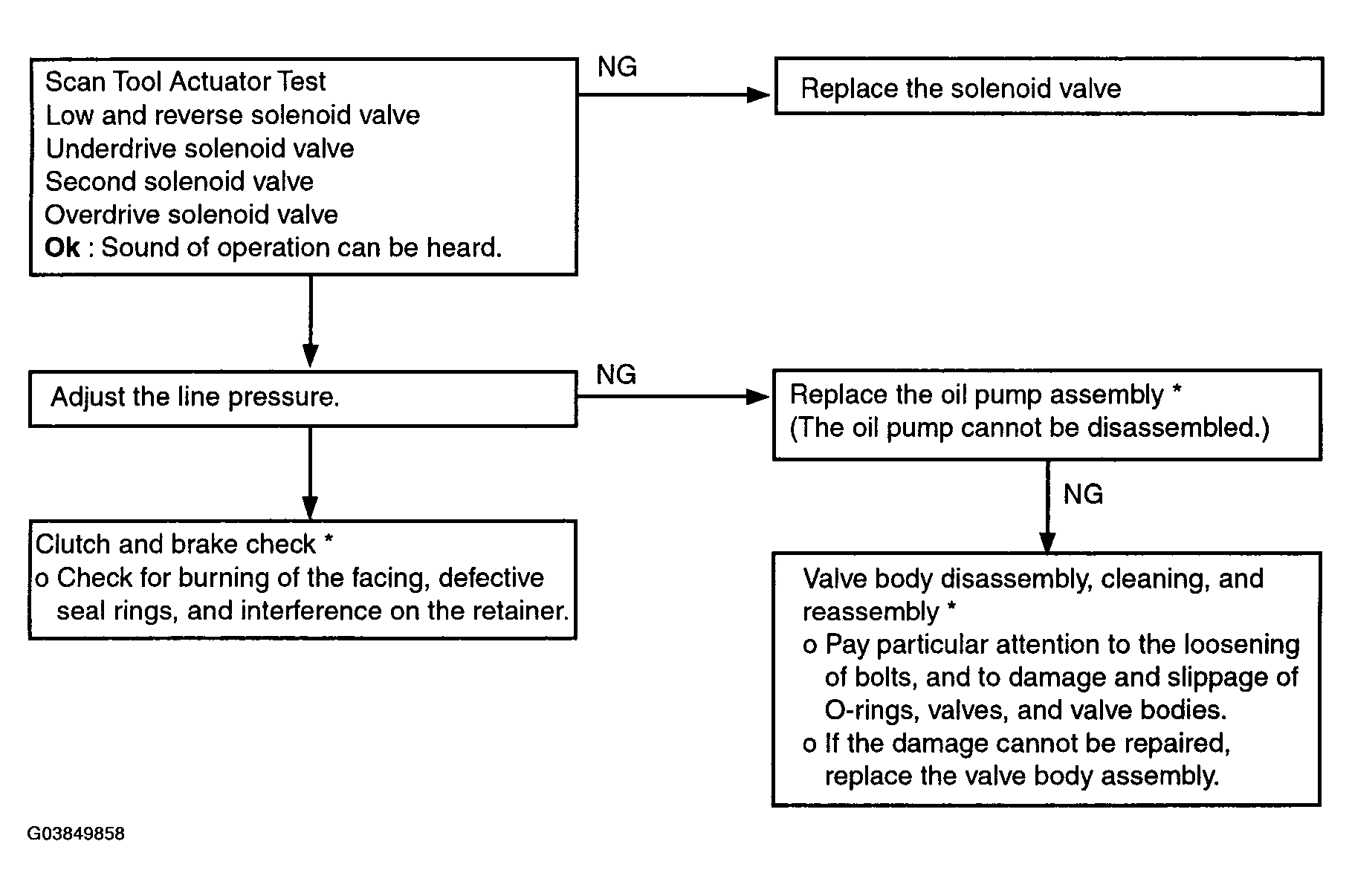

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Shocks And Running Up)

Courtesy of HYUNDAI MOTOR CO.
