Inspection Procedure 1

INSPECTION PROCEDURE 1

Communication with the scan tool Possible cause
If communication with the scan tool is not possible, the cause may be a defective diagnostic trouble line or the TCM is not functioning.
  • Malfunction of diagnostic trouble line
  • Malfunction of connector
  • Malfunction of the TCM

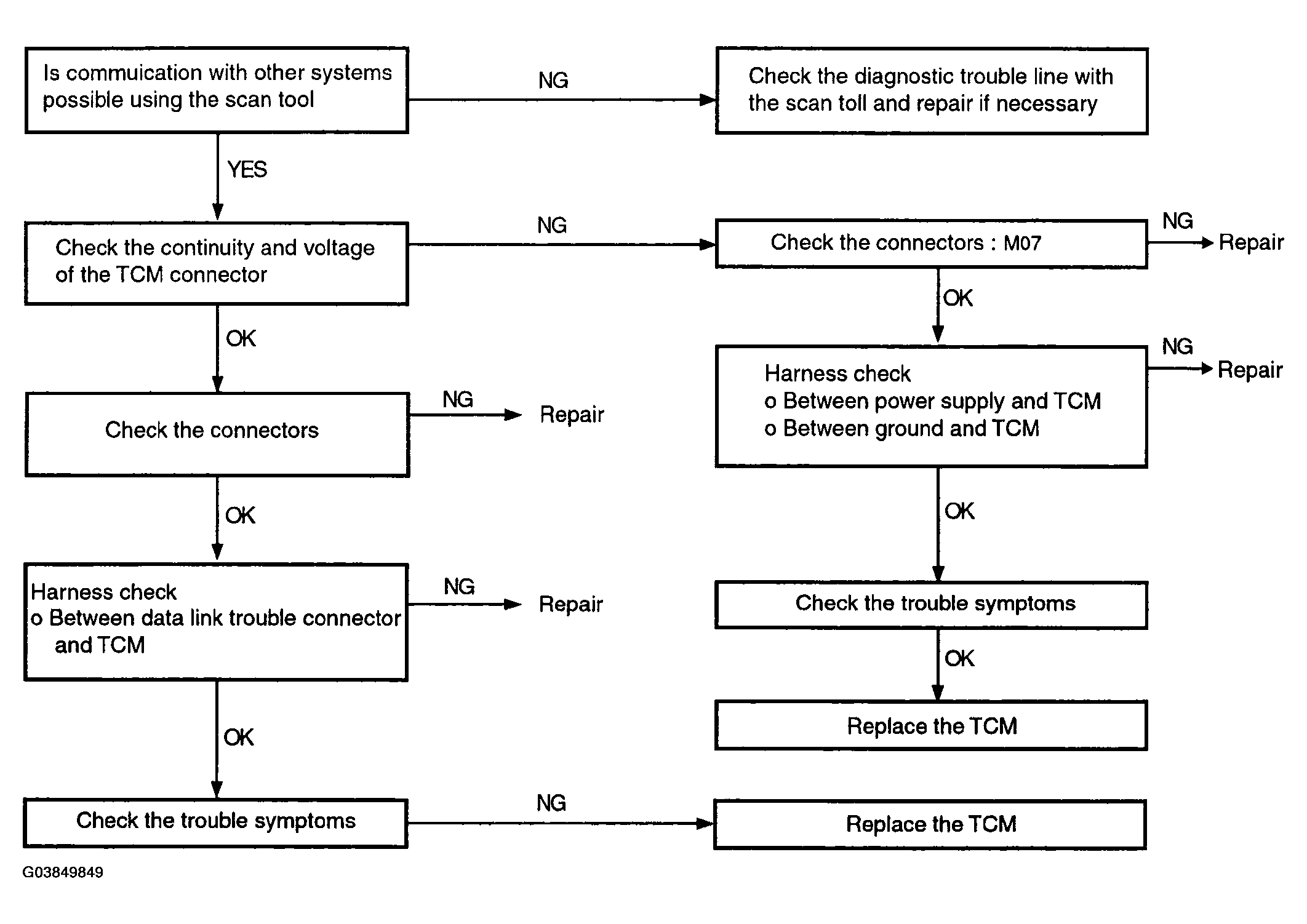

Fig 1: Inspection Process For Trouble Symptoms Flow Chart (Communication With The Scan Tool)
G03849849Courtesy of HYUNDAI MOTOR CO.
