Monitor SCANTOOL Data: Notes

  1. Connect scan tool to data link connector(DLC).
  2. Engine "ON".
  3. Monitor the "ENGINE SPEED, INPUT SPEED SENSOR, OUTPUT SPEED SENSOR, GEAR POSITION" parameter on the scan tool.
  4. Disconnect the solenoid valve connector and perform the "STALL TEST PROCEDURE IN D3 AND REASON ".

    Specification: 2000~2700 engine RPM

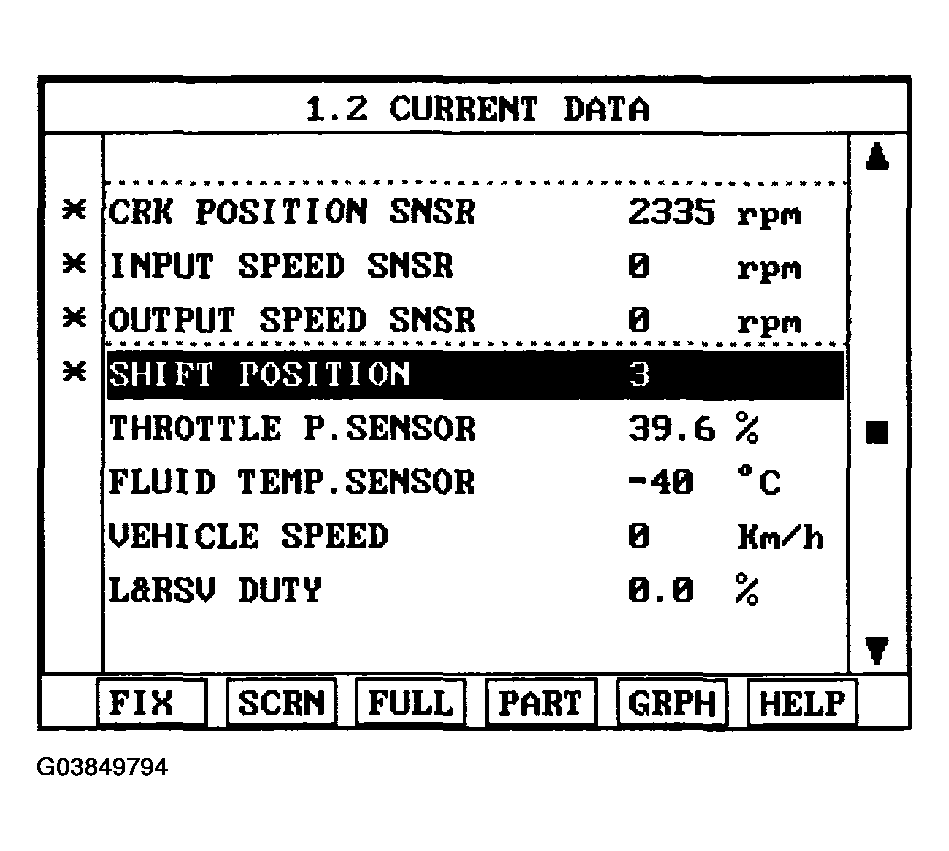

    Fig 1: Monitoring "Engine Speed, Input Speed Sensor, Output Speed Sensor, Gear Position" Parameter On Scan Tool
    G03849794Courtesy of HYUNDAI MOTOR CO.
