Automatic Transaxle: Removal

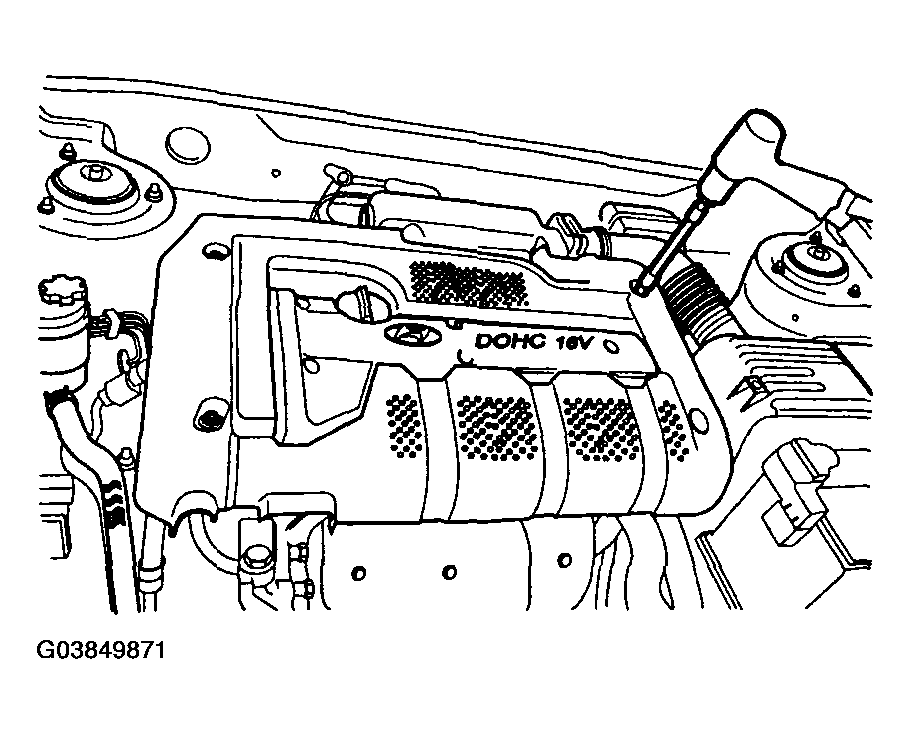

Remove the engine cover.

Fig 1: Removing Engine Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the battery terminal.

Fig 2: Removing Battery Terminal
Courtesy of HYUNDAI MOTOR CO.
Remove the air duct.

Fig 3: Removing Air Duct
Courtesy of HYUNDAI MOTOR CO.

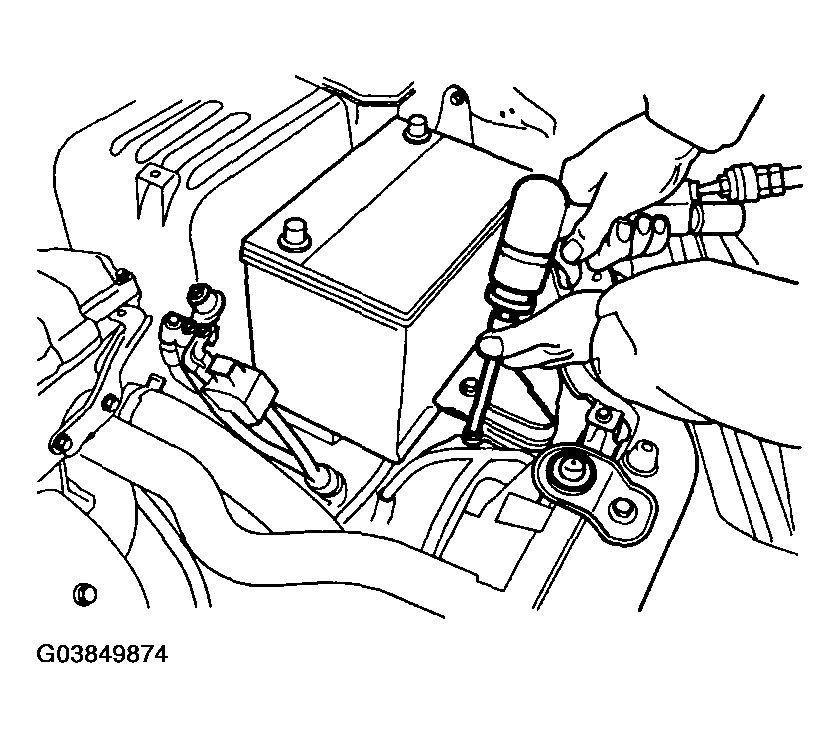

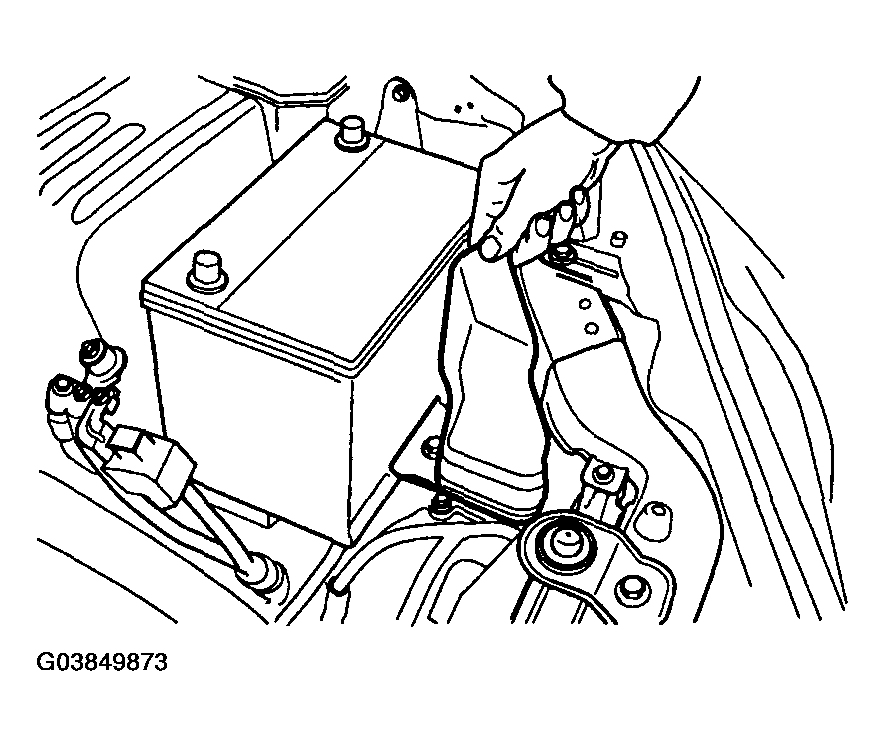

Remove the battery tray.

Fig 4: Removing Battery Tray
Courtesy of HYUNDAI MOTOR CO.

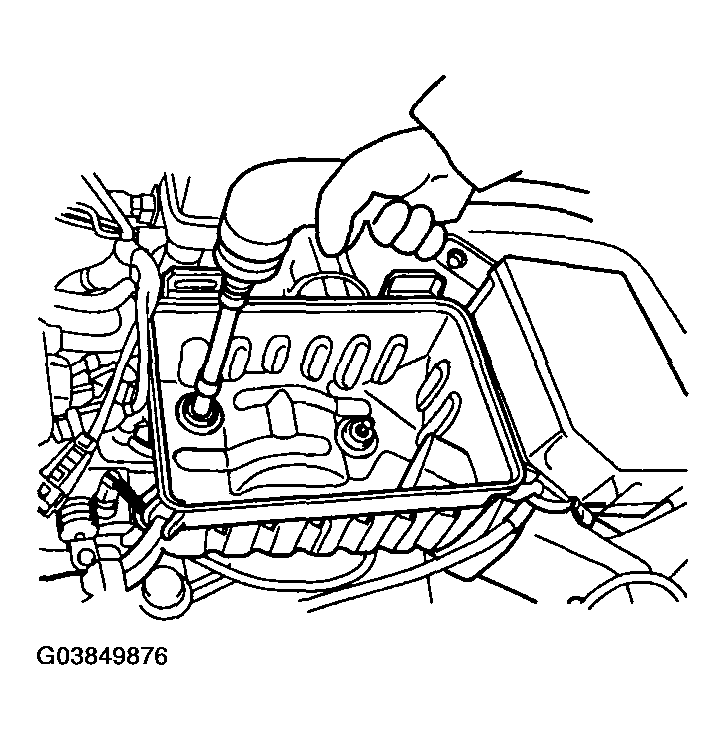

Remove the air cleaner.
1. Upper

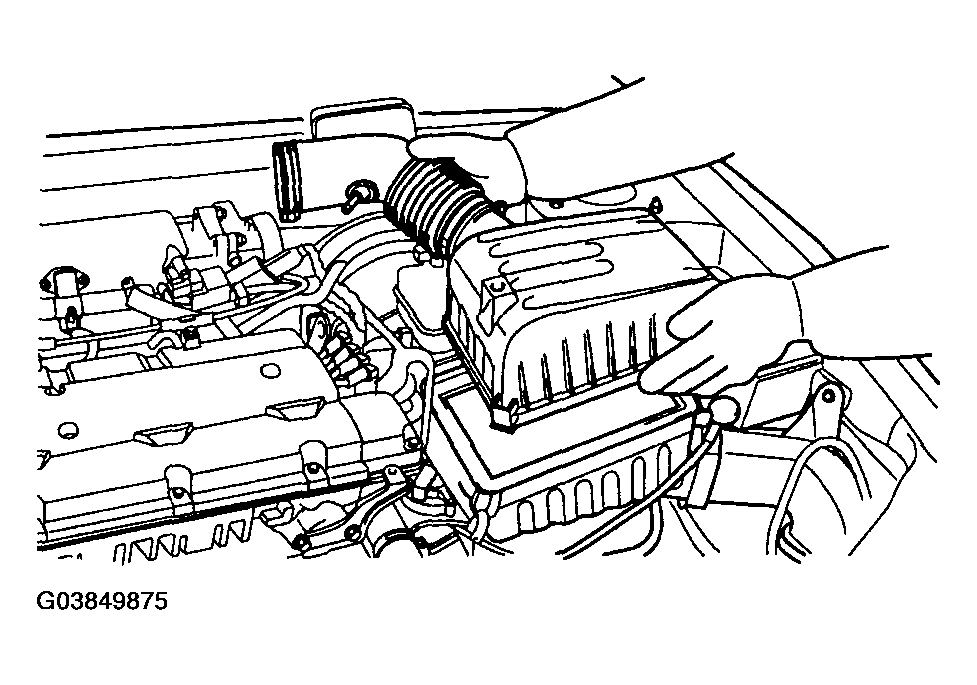

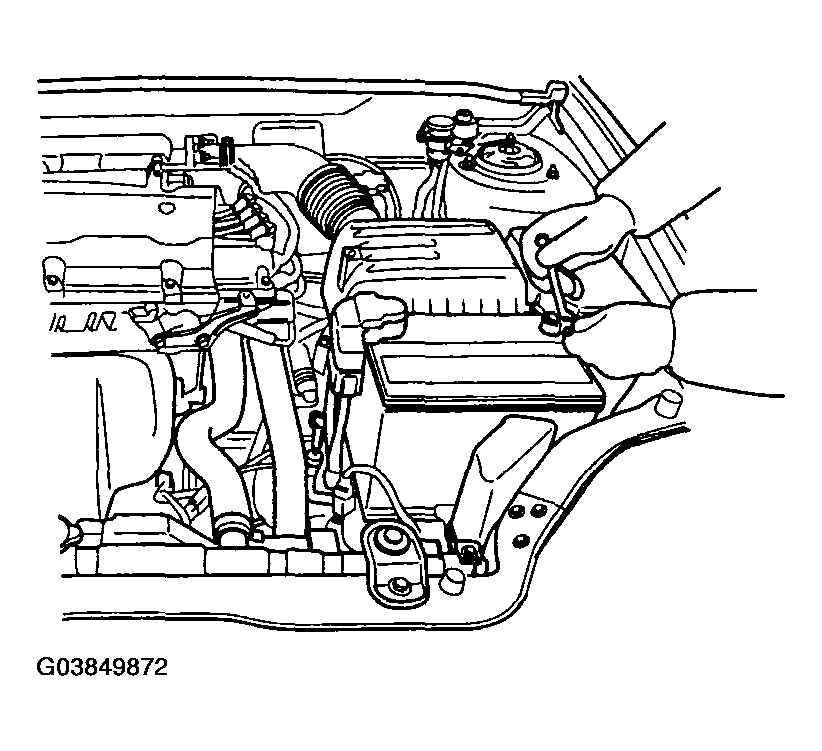

  Fig 5: Removing Air Cleaner (Upper)
  Courtesy of HYUNDAI MOTOR CO.
2. Lower

  Fig 6: Removing Air Cleaner (Lower)
  Courtesy of HYUNDAI MOTOR CO.
After removing the CKP sensor, 02 sensor and oil pressure switch wiring bracket, separate the connectors.

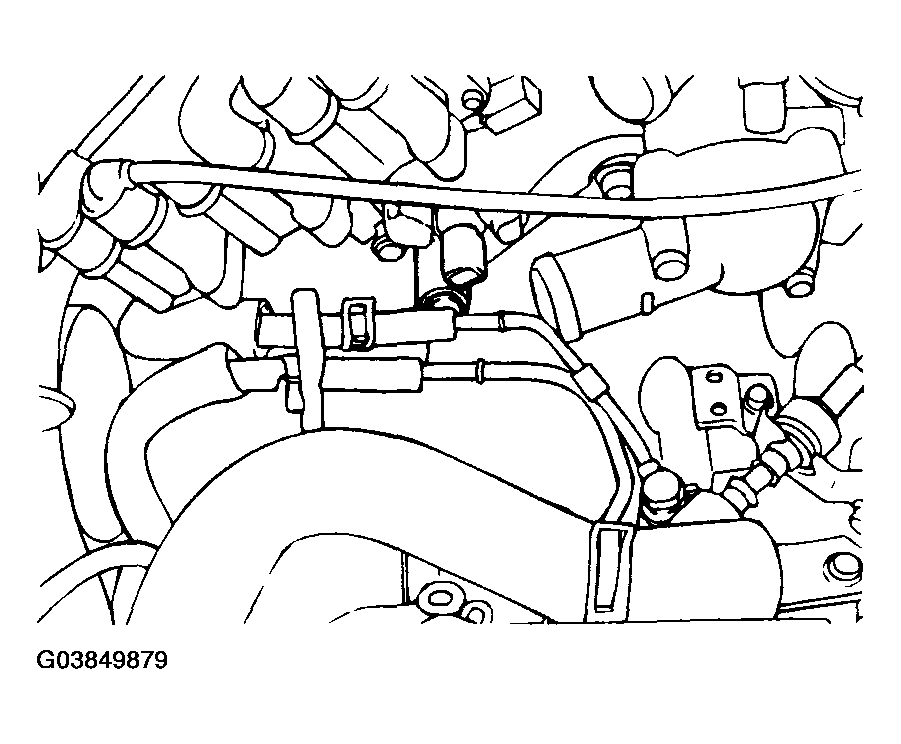

Fig 7: Removing CKP Sensor, 02 Sensor & Oil Pressure Switch Wiring Bracket
Courtesy of HYUNDAI MOTOR CO.
Remove the speedometer sensor connector.
Remove the transaxle range switch.

Fig 8: Removing Transaxle Range Switch & Speedometer Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the oil cooler hose.

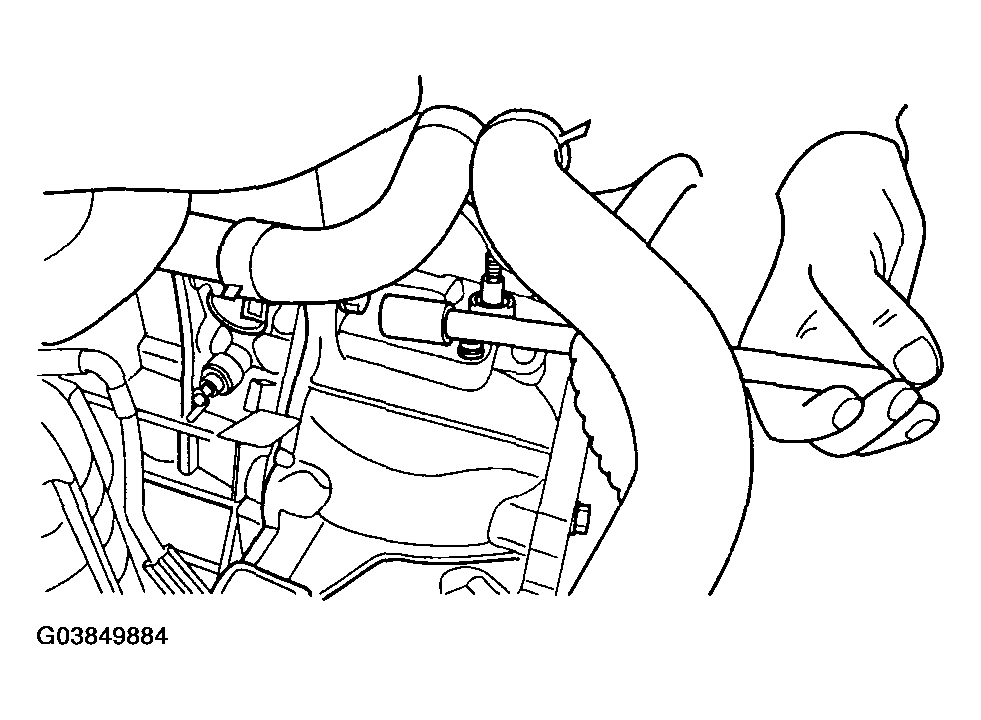

Fig 9: Removing Oil Cooler Hose
Courtesy of HYUNDAI MOTOR CO.

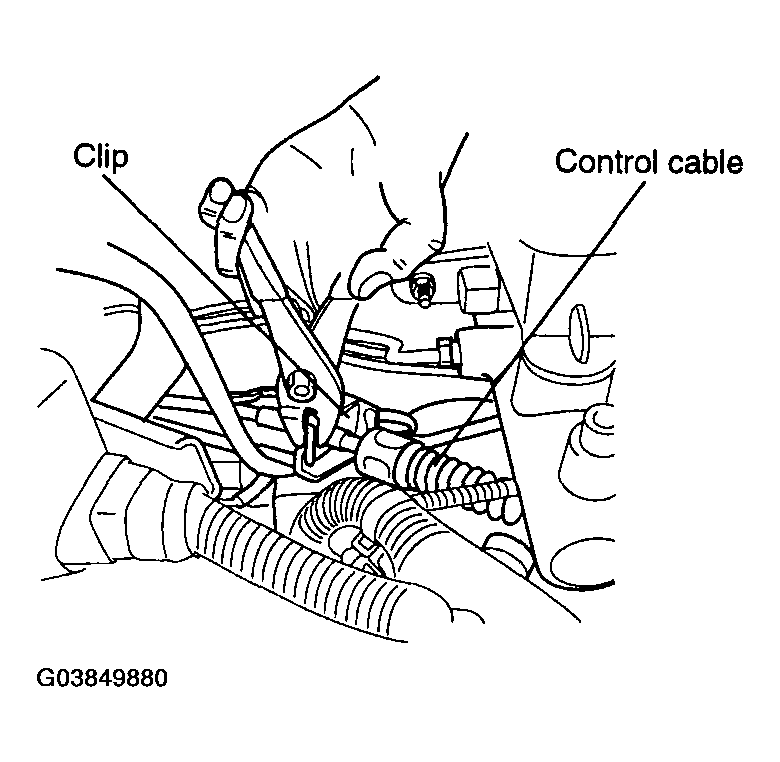

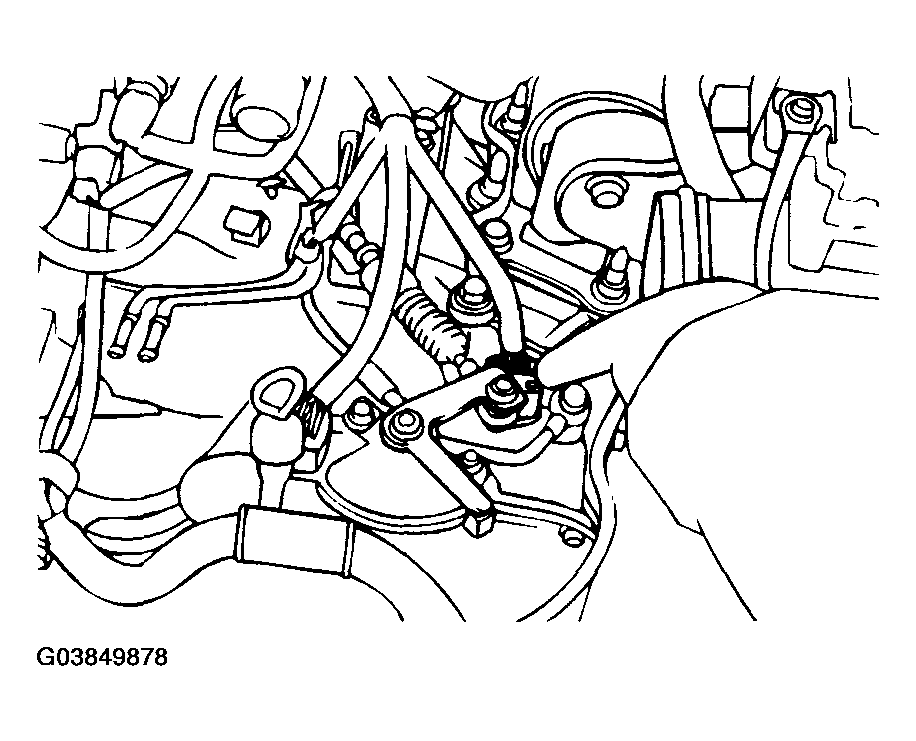

Remove the clip(transaxle side) of the shift cable.

Fig 10: Removing Clip (Transaxle Side) Of Shift Cable
Courtesy of HYUNDAI MOTOR CO.

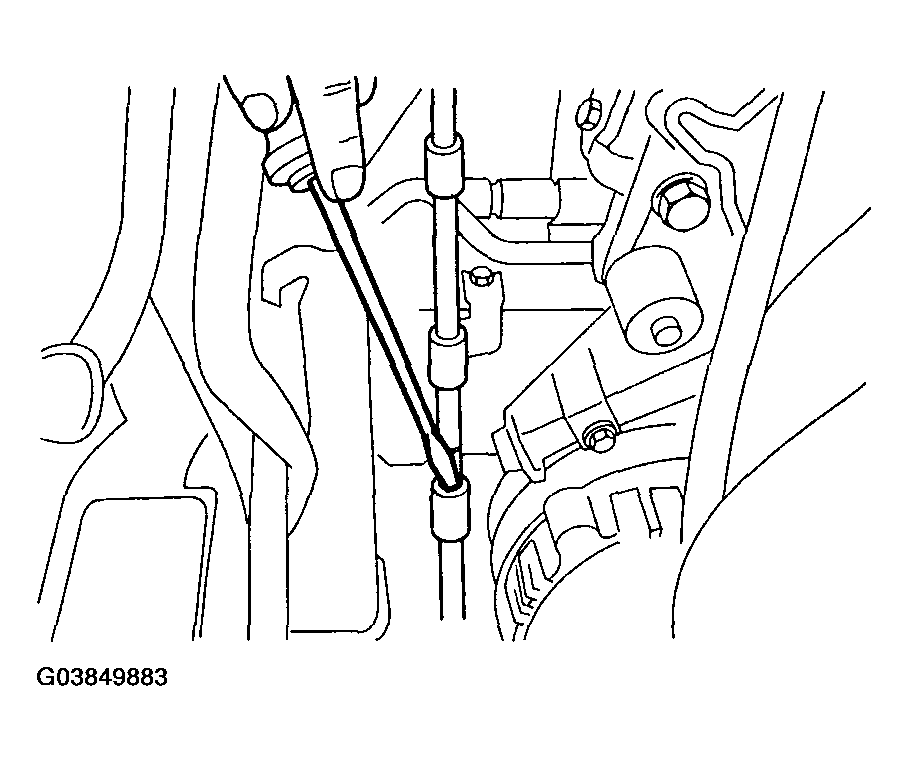

Separate the steering column shaft joint.

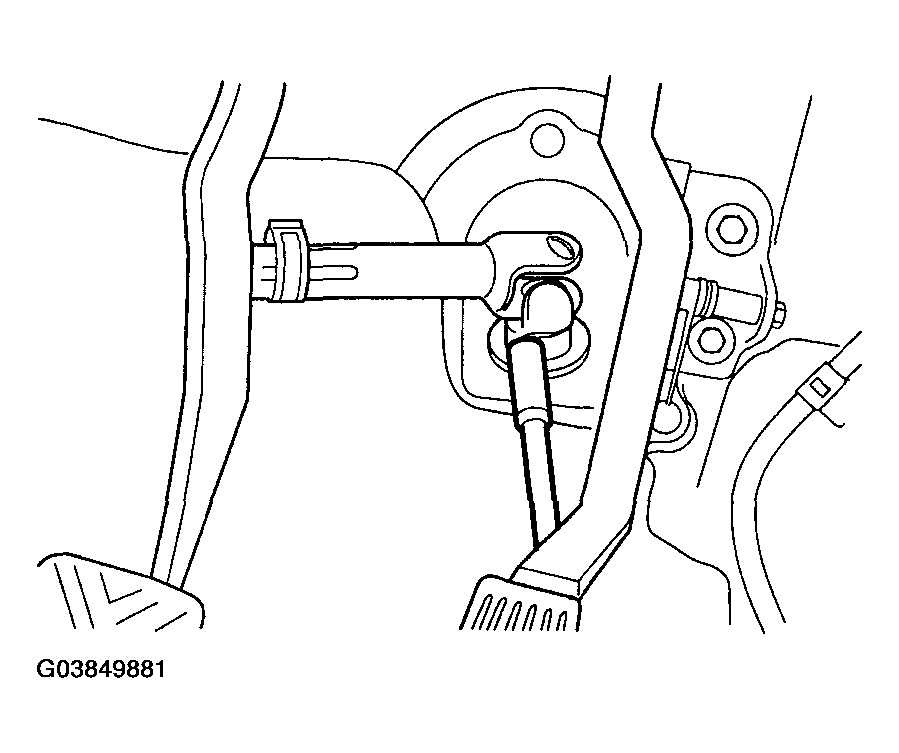

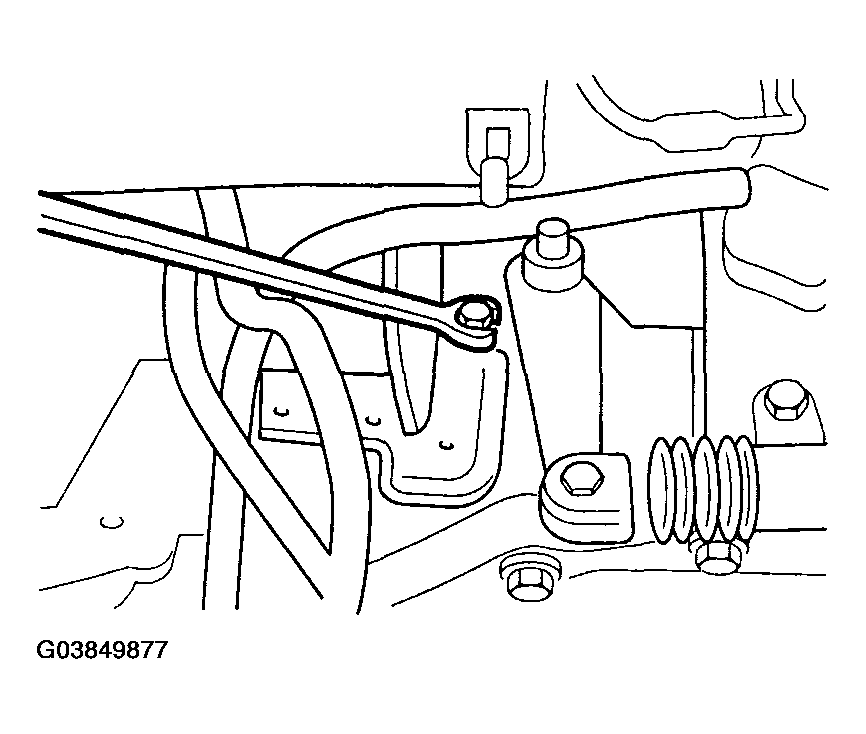

Fig 11: Separating Steering Column Shaft Joint
Courtesy of HYUNDAI MOTOR CO.
Separate the power steering oil pump hose.

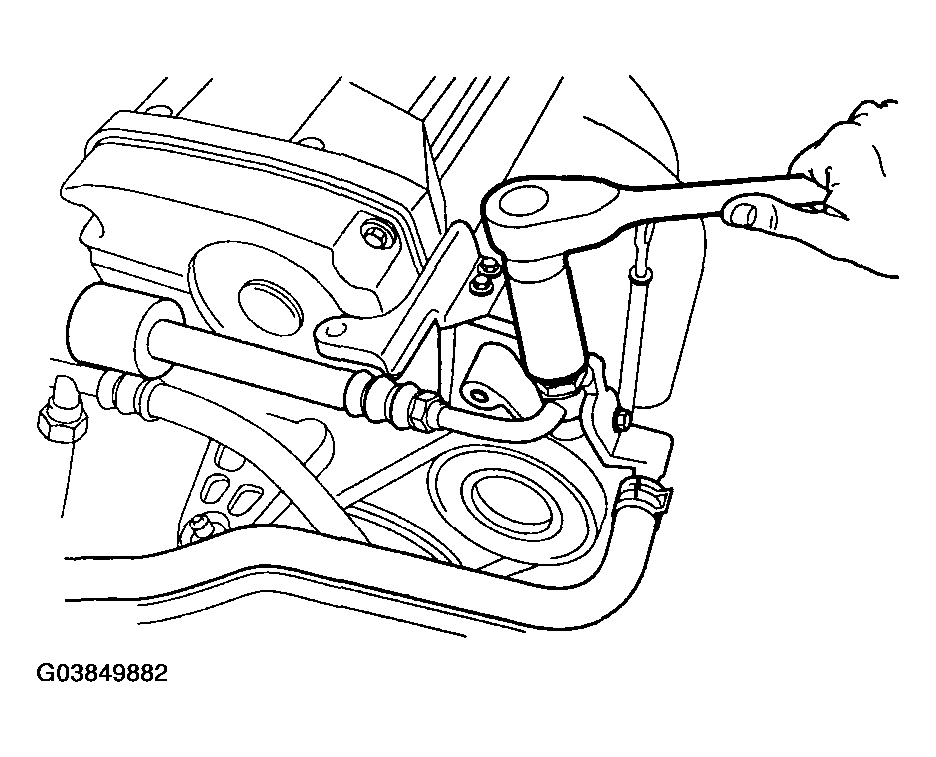

Fig 12: Separating Power Steering Oil Pump Hose
Courtesy of HYUNDAI MOTOR CO.

NOTE: Be careful not to leak after separating.
Separate the hose after removing the clip of the power steering return hose.

Fig 13: Removing Clip Of Power Steering Return Hose
Courtesy of HYUNDAI MOTOR CO.
Remove the upper connecting transaxle bolt.

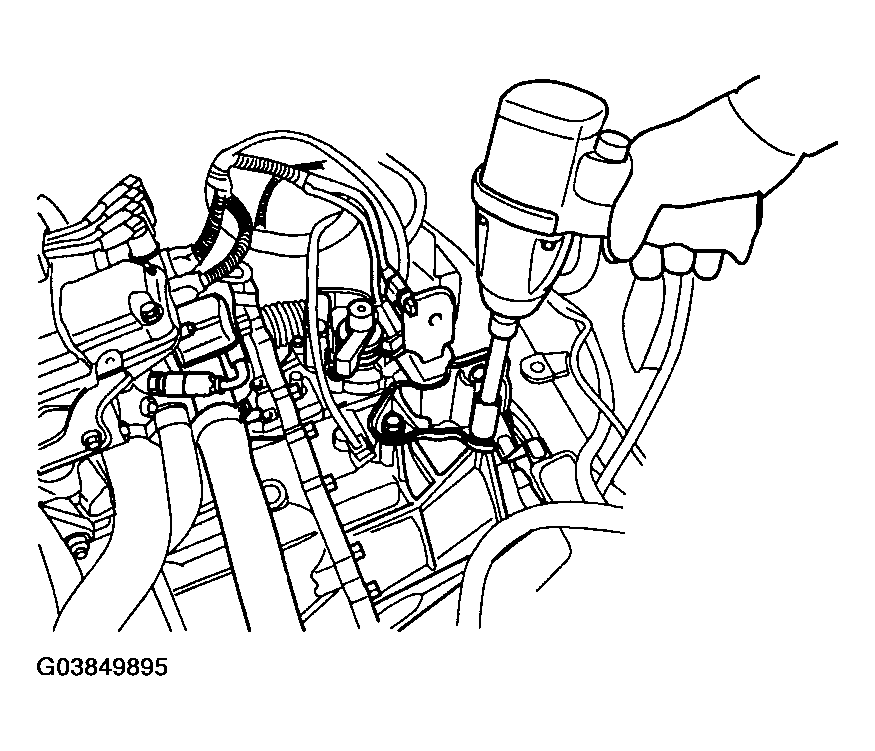

Fig 14: Removing Upper Connecting Transaxle Bolt
Courtesy of HYUNDAI MOTOR CO.

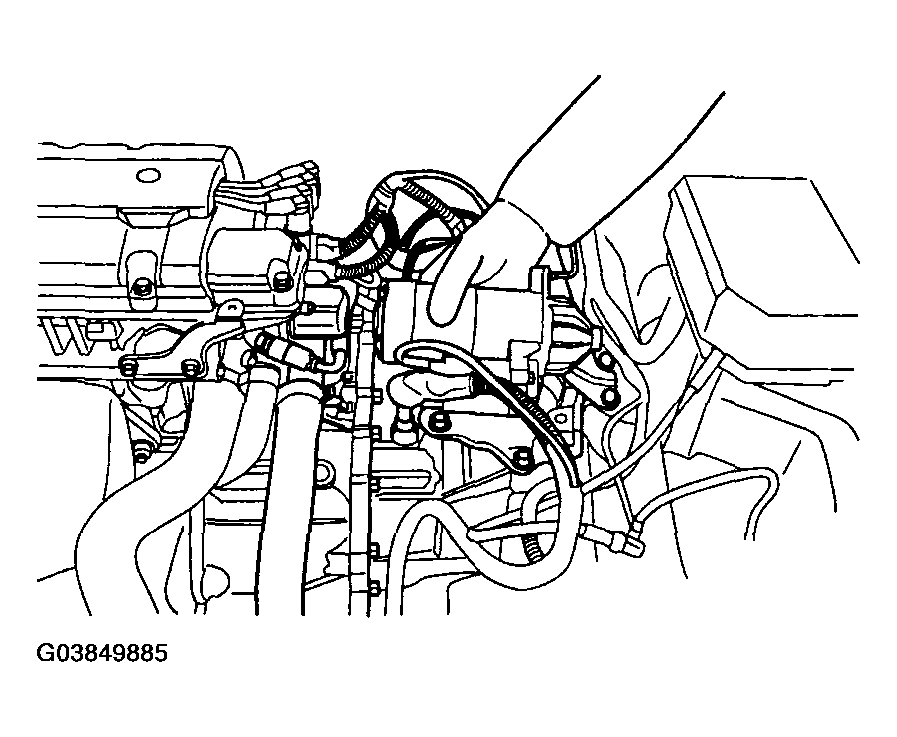

Separate the start motor.

Fig 15: Separating Start Motor
Courtesy of HYUNDAI MOTOR CO.
Install the engine support fixture.

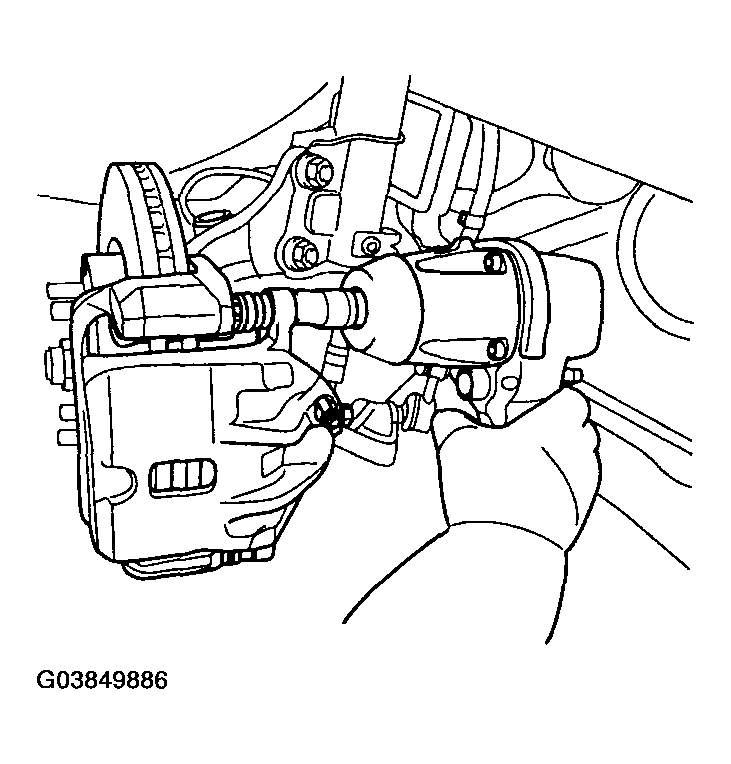

After removing the tire, remove the caliper.

Fig 16: Removing Caliper
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle side cover.

Fig 17: Removing Transaxle Side Cover
Courtesy of HYUNDAI MOTOR CO.

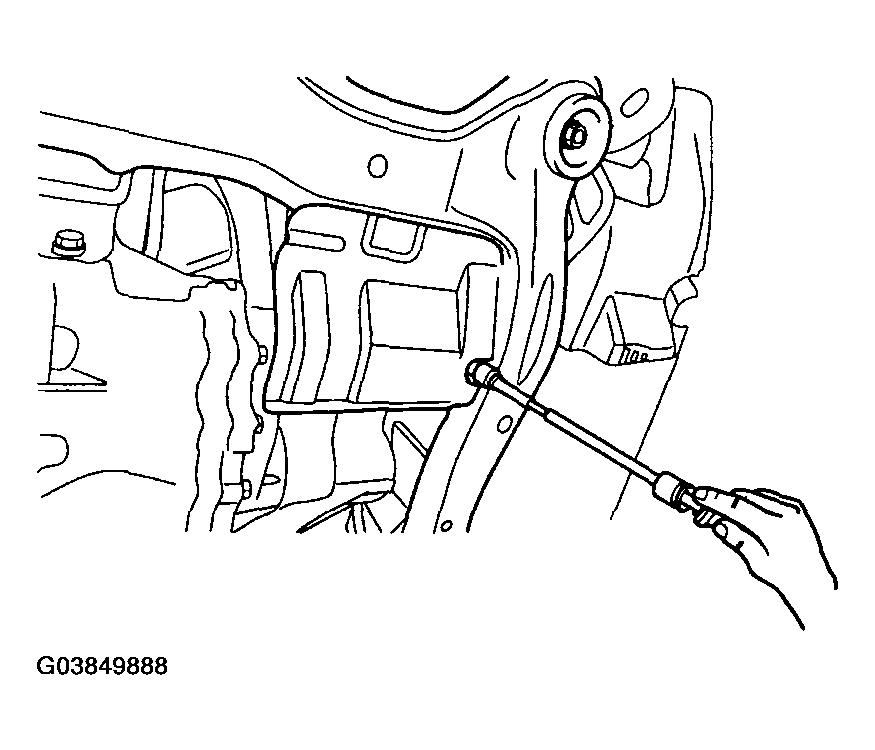

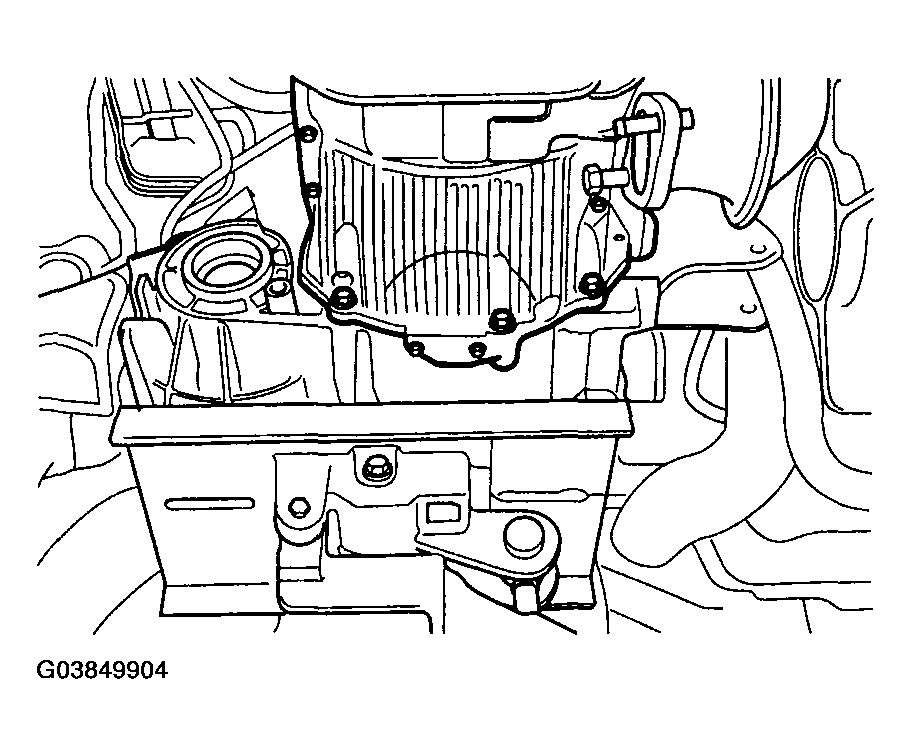

Remove the transaxle under cover.

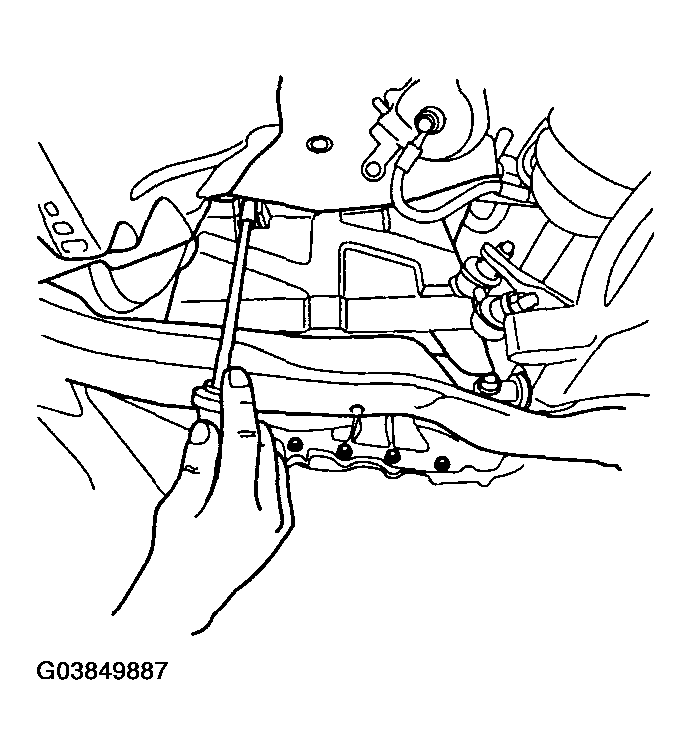

Fig 18: Removing Transaxle Under Cover
Courtesy of HYUNDAI MOTOR CO.
Separate the tie rod end.

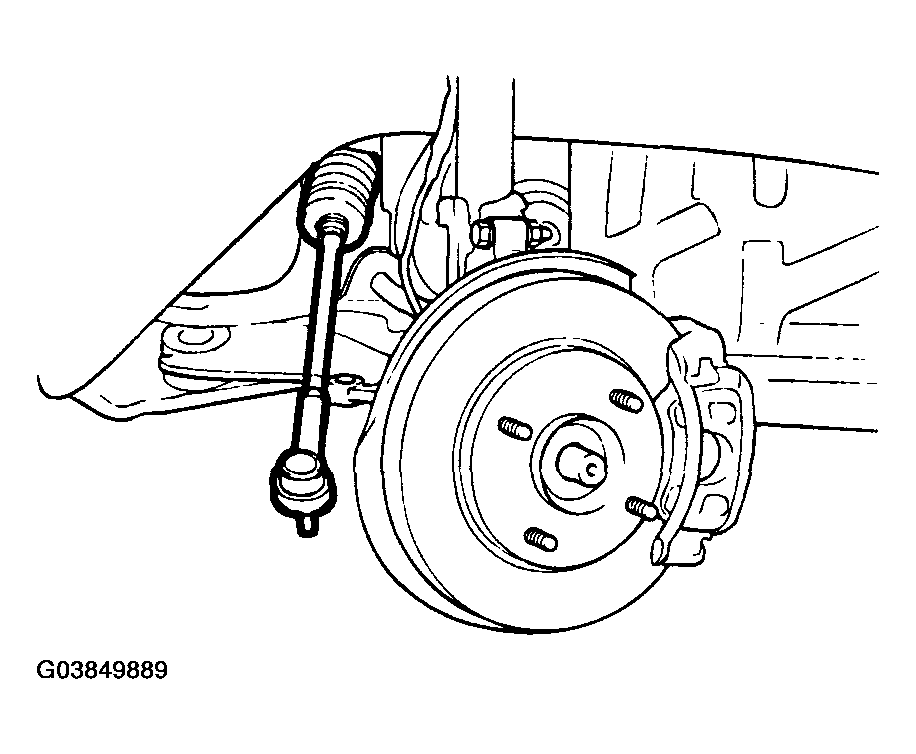

Fig 19: Separating Tie Rod End
Courtesy of HYUNDAI MOTOR CO.

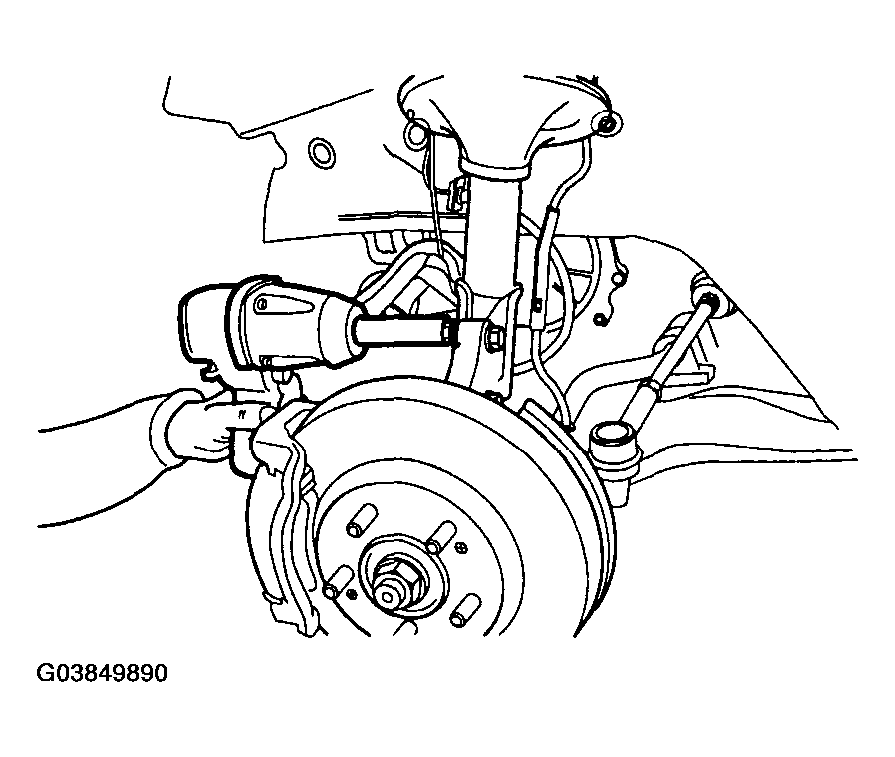

Remove the wheel speed sensor and the knuckle mounting bolt.

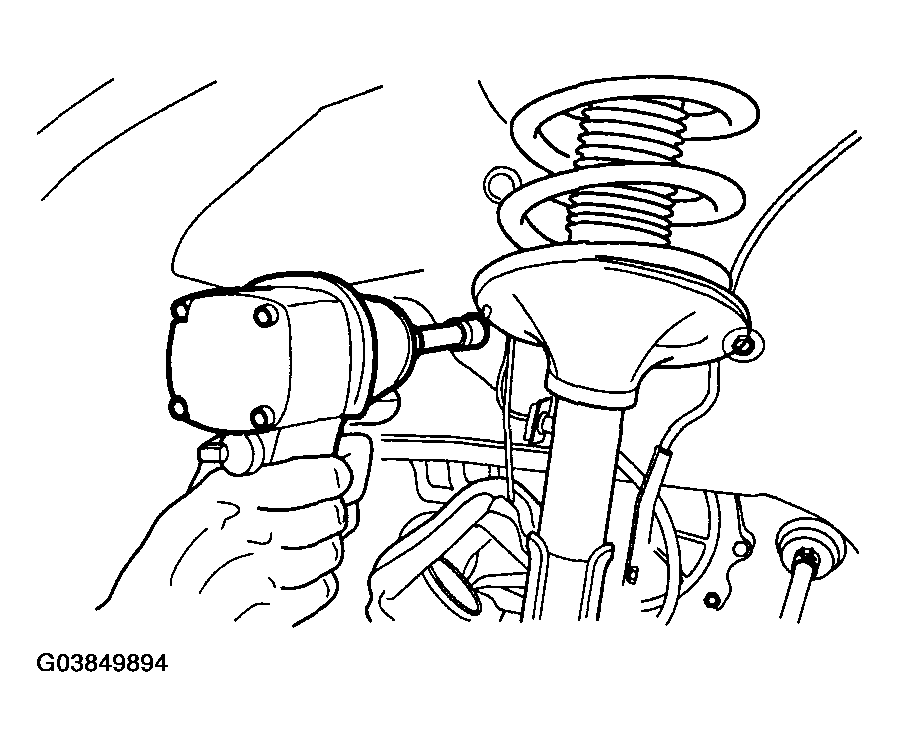

Fig 20: Removing Wheel Speed Sensor & Knuckle Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Drain the oil.

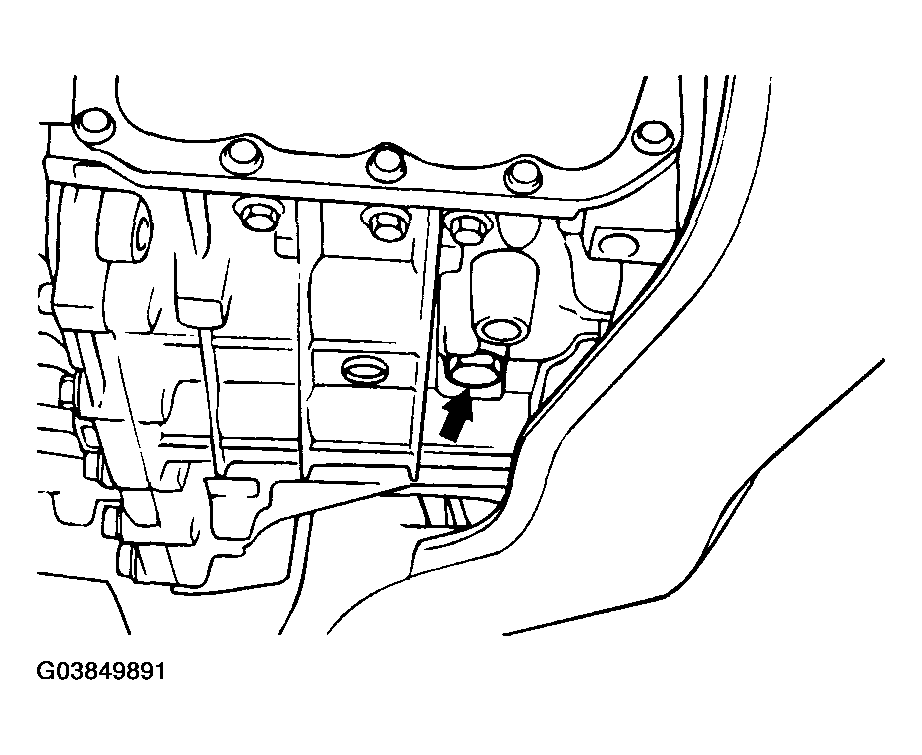

Fig 21: Identifying Oil Drain Plug
Courtesy of HYUNDAI MOTOR CO.

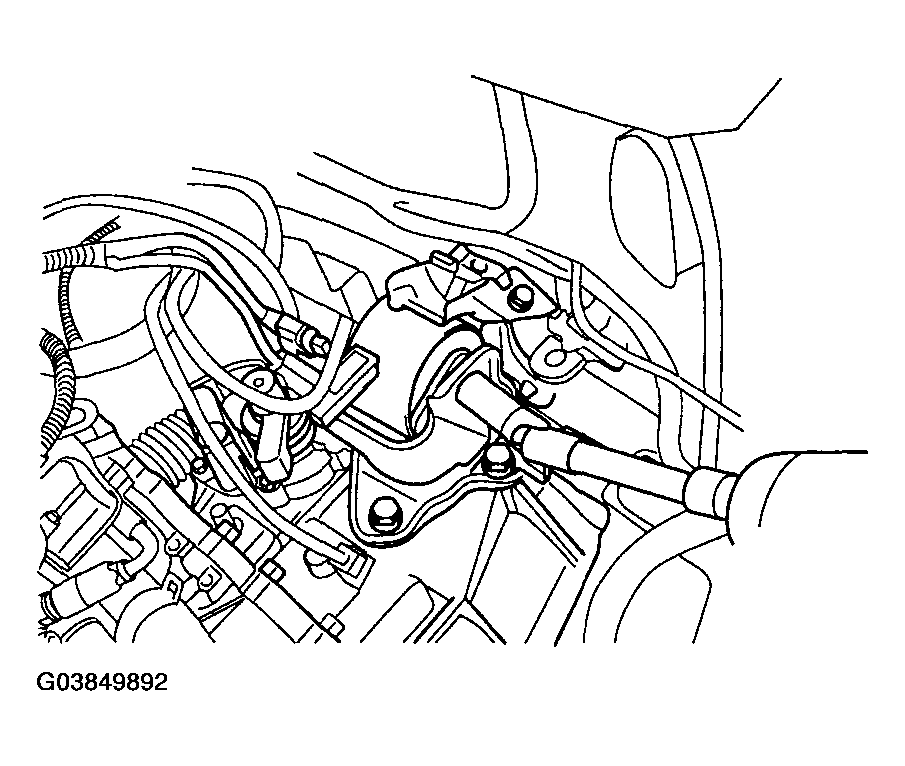

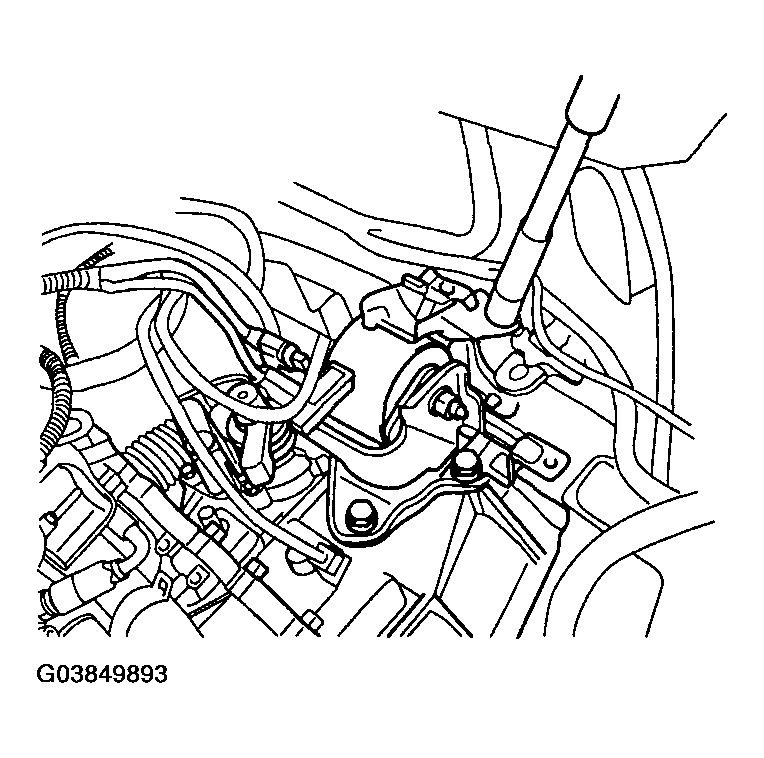

Remove the transaxle mounting bracket.
1. Insulator bolt

  Fig 22: Removing Insulator Bolt (Transaxle Mounting Bracket)
  Courtesy of HYUNDAI MOTOR CO.
2. Body mounting bolt (Upper)

  Fig 23: Removing Body Mounting Bolt (Upper) (Transaxle Mounting Bracket)
  Courtesy of HYUNDAI MOTOR CO.
3. Body mounting bolt (Side)

  Fig 24: Removing Body Mounting Bolt (Side) (Transaxle Mounting Bracket)
  Courtesy of HYUNDAI MOTOR CO.
4. Transaxle side mounting bolt

  Fig 25: Identifying Transaxle Side Mounting Bolt
  Courtesy of HYUNDAI MOTOR CO.
Remove the front roll stopper.
1. Insulator bolt

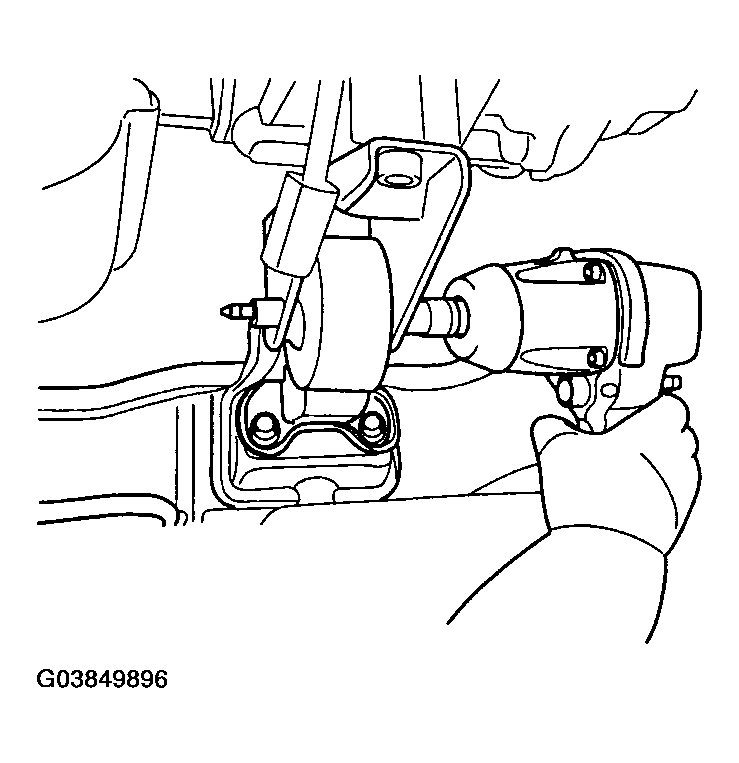

  Fig 26: Insulator Bolt (Front Roll Stopper)
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt (Upper)

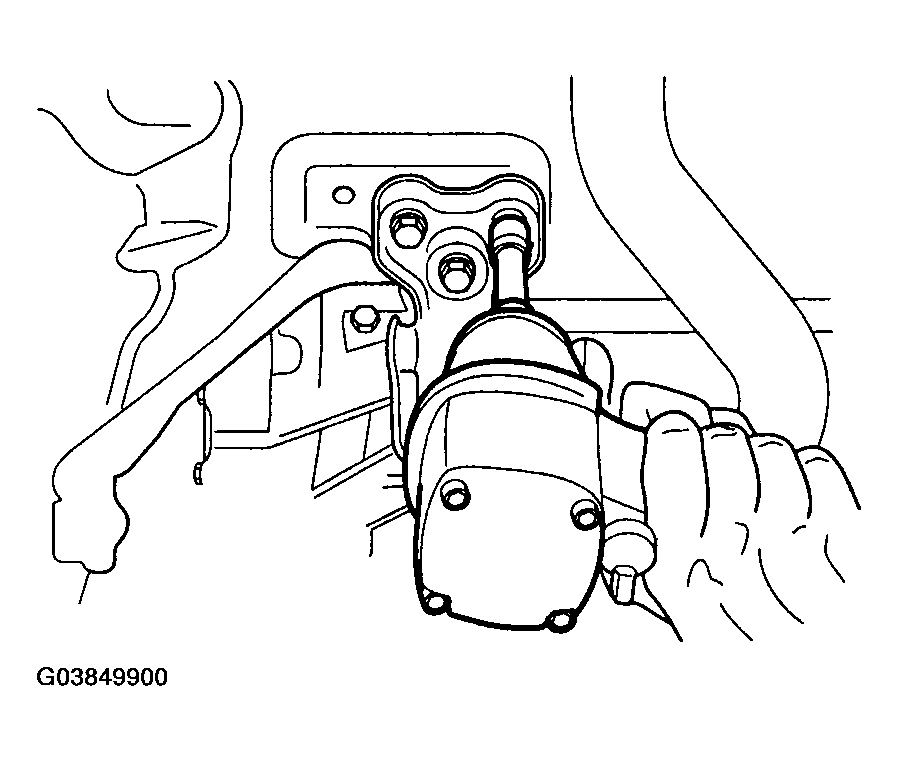

  Fig 27: Removing Stopper Bolt (Upper) (Front Roll Stopper)
  Courtesy of HYUNDAI MOTOR CO.
3. Stopper bolt (Lower)

  Fig 28: Removing Stopper Bolt (Lower) (Front Roll Stopper)
  Courtesy of HYUNDAI MOTOR CO.
Remove the rear roll stopper.
1. Insulator bolt

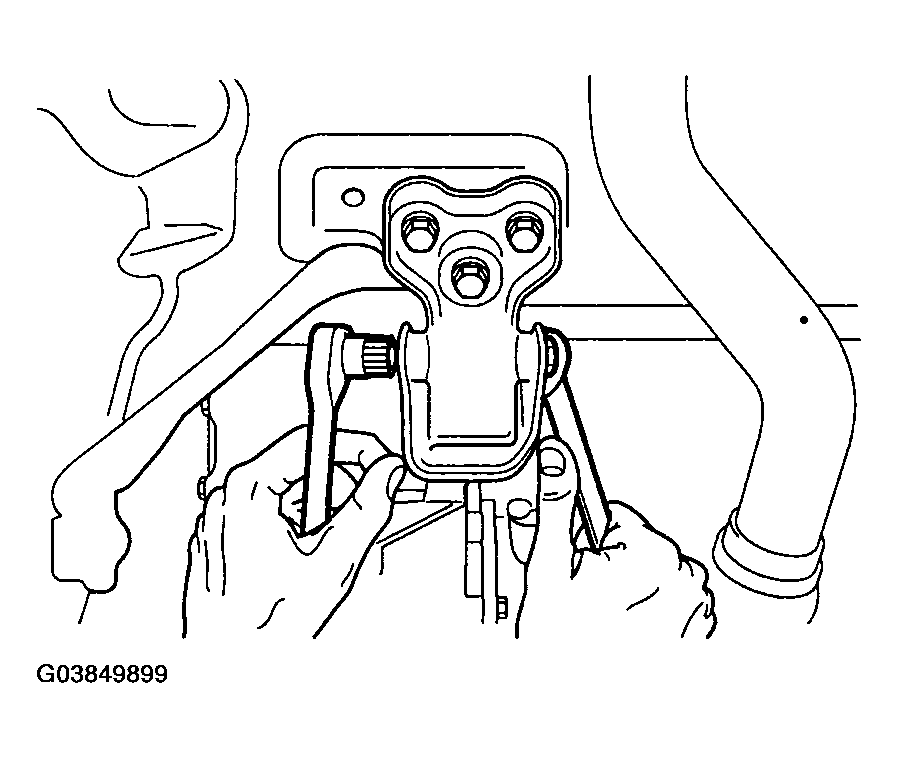

  Fig 29: Removing Insulator Bolt (Rear Roll Stopper)
  Courtesy of HYUNDAI MOTOR CO.
2. Stopper bolt

  Fig 30: Removing Stopper Bolt (Rear Roll Stopper)
  Courtesy of HYUNDAI MOTOR CO.
Remove the drive shaft.
Remove the front muffler.

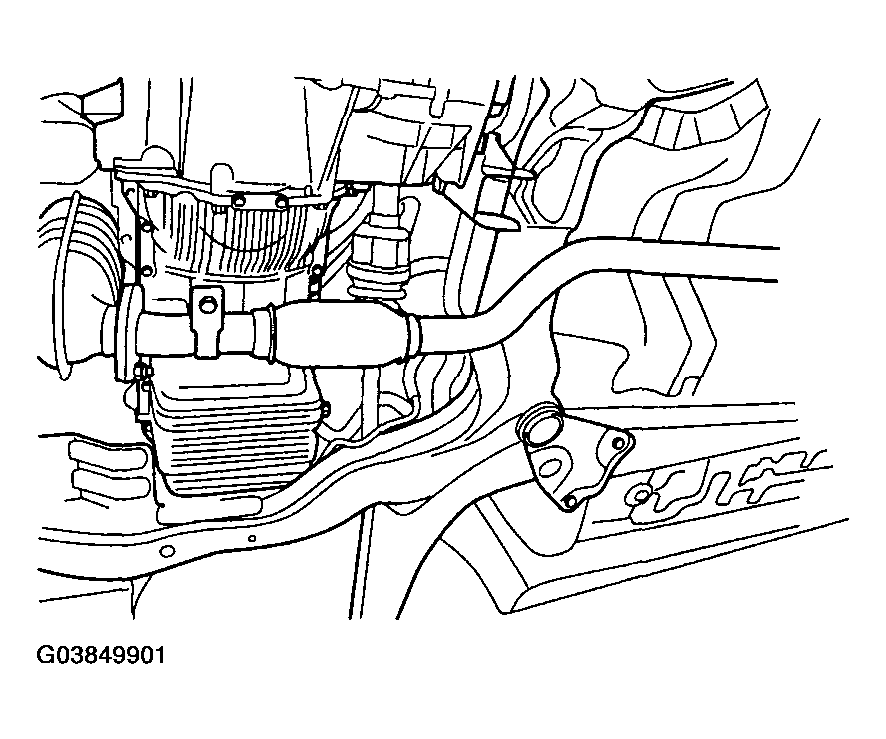

Fig 31: Removing Front Muffler
Courtesy of HYUNDAI MOTOR CO.

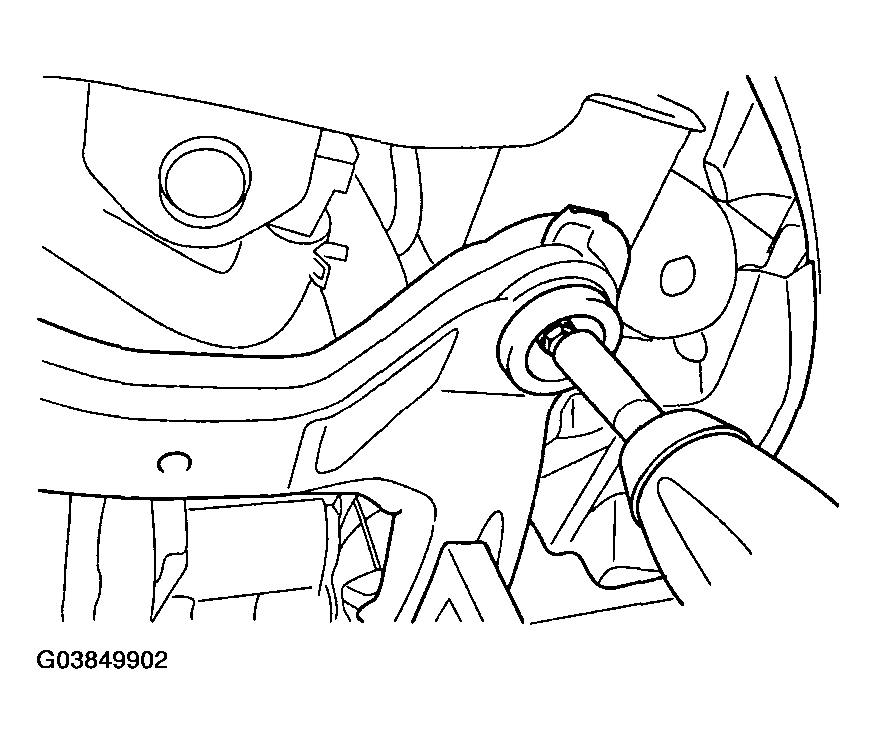

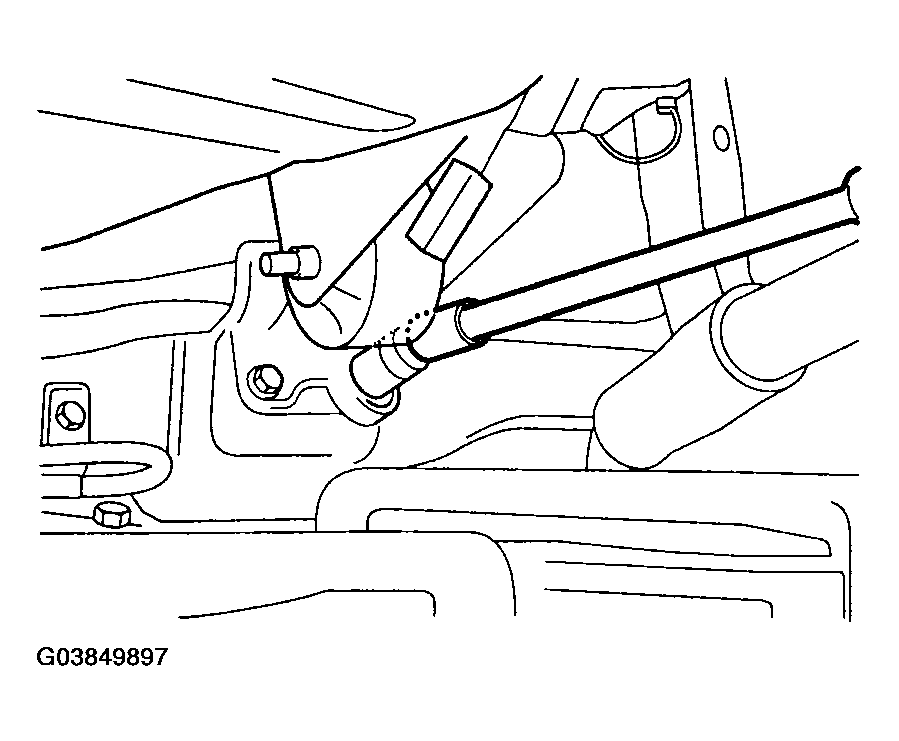

Remove the sub frame mounting bolt.

Fig 32: Removing Sub Frame Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.

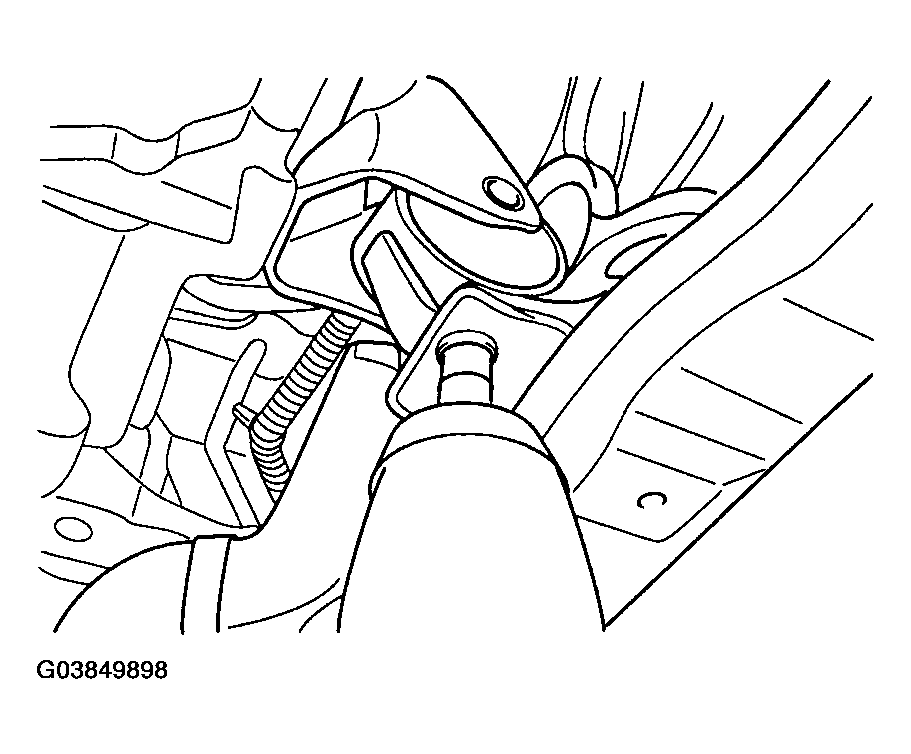

Install the jack under the transaxle assembly.

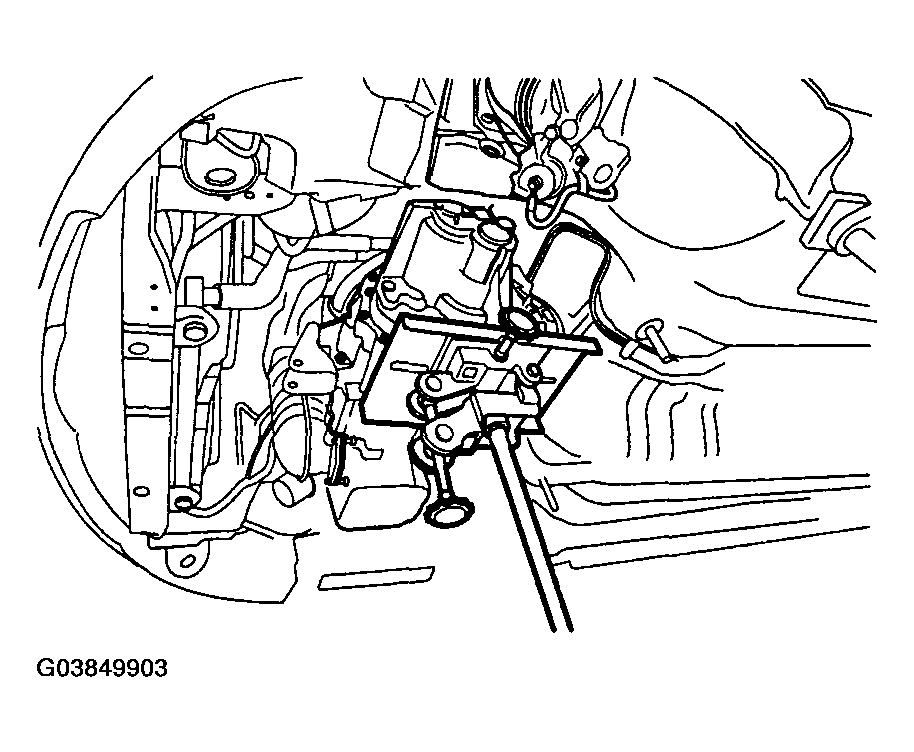

Fig 33: Installing Jack Under Transaxle Assembly
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle lower mounting bolt to the engine.

Fig 34: Removing Transaxle Lower Mounting Bolt To Engine
Courtesy of HYUNDAI MOTOR CO.
Remove the transaxle assembly.
