Home >> Hyundai >> 2007 >> Tiburon GS, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Transaxle System (F4A42) >> Automatic Transaxle Shift Control >> Components

Automatic Transaxle Shift Control: Components

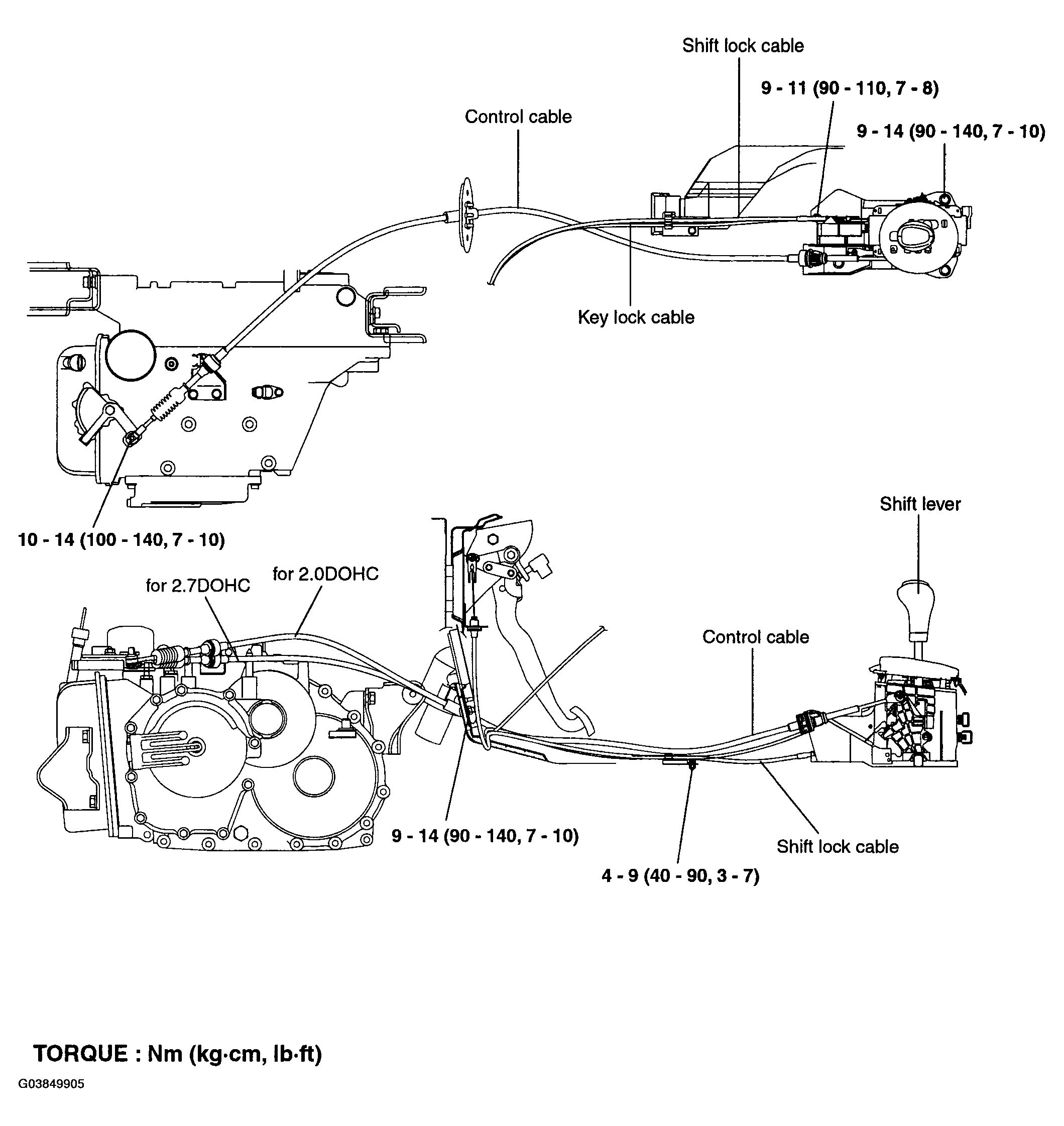

Fig 1: Automatic Transaxle Shift Control Components With Torque Specifications

G03849905

Courtesy of HYUNDAI MOTOR CO.
