Front Upper Arm: Components

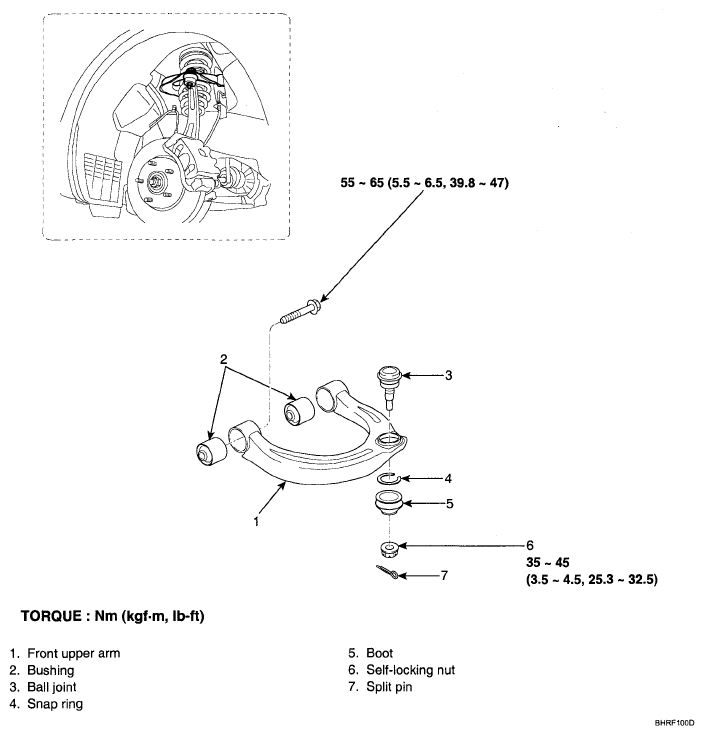

Fig 1: Front Upper Arm Replacement Components With Torque Specifications

G04892297

Courtesy of HYUNDAI MOTOR CO.
