Front Stabilizer Bar: Installation

1. Install the bushing (B) on the stabilizer bar (A).

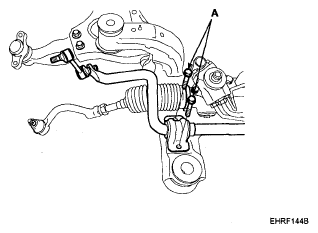

   Fig 1: Identifying Stabilizer Bar And Bushing

   Courtesy of HYUNDAI MOTOR CO.
   NOTE: Bring clamp (C) of stabilizer bar (A) into contact with bushing (B).
2. Install the bracket on the bushing (B).
3. After tightening the bolts of the bushing bracket temporarily, install the bushing bracket on the opposite side.
4. Install the rear stabilizer bar bracket mounting bolts (A) to the subframe.

   Tightening torque Nm (kgf.m, lb-ft):

   45 ~ 55 (4.5 ~ 5.5, 32.5 ~ 39.8)

   Fig 2: Identifying Rear Stabilizer Bar Bracket Mounting Bolts

   Courtesy of HYUNDAI MOTOR CO.
5. Install the stabilizer link (B) to the fork (A).

   Tightening torque Nm (kgf.m, lb-ft):

   100 ~ 120 (10 ~ 12, 72.3 ~ 86.8)

   Fig 3: Identifying Front Stabilizer Link And Fork

   Courtesy of HYUNDAI MOTOR CO.
6. Install the wheel and the tire to the front hub.

Tightening torque Nm (kgf.m, lb-ft):

90 ~ 110 (9 ~ 11, 65.1 ~ 79.5)
