Front Lower Arm: Installation

1. Install the lower arm mounting bolts.

   Tightening torque Nm (kgf.m, lb-ft):

   Bushing (A); 140 ~ 160 (14 ~ 16, 101.2 ~ 115.7)

   Bushing (G); 140 ~ 160 (14 ~ 16, 101.2 ~ 115.7)

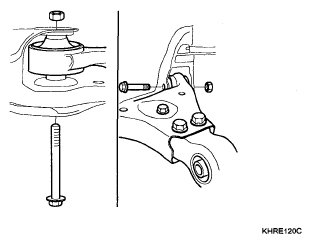

   Fig 1: Installing The Lower Arm Mounting Bolts

   Courtesy of HYUNDAI MOTOR CO.
2. Install the lower arm connector (B) to the fork (A).

   Tightening torque Nm (kgf.m, lb-ft):

   140~160 (14~16, 101.2~115.7)

   Fig 2: Identifying The Lower Arm Connector And Fork

   Courtesy of HYUNDAI MOTOR CO.
3. Install the lower arm ball joint mounting bolts (A).

   Tightening torque Nm (kgf.m, lb-ft):

   100 ~ 120 (10 ~ 12, 72.3 ~ 86.8)

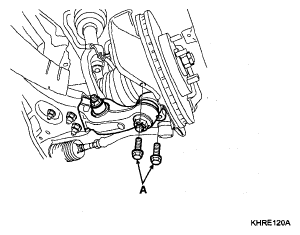

   Fig 3: Identifying Lower Arm Ball Joint Mounting Bolts

   Courtesy of HYUNDAI MOTOR CO.
4. Install the wheel and the tire to the front hub.

Tightening torque Nm (kgf.m, lb-ft):

90 ~ 110 (9 ~ 11, 65.1 ~ 79.5)
