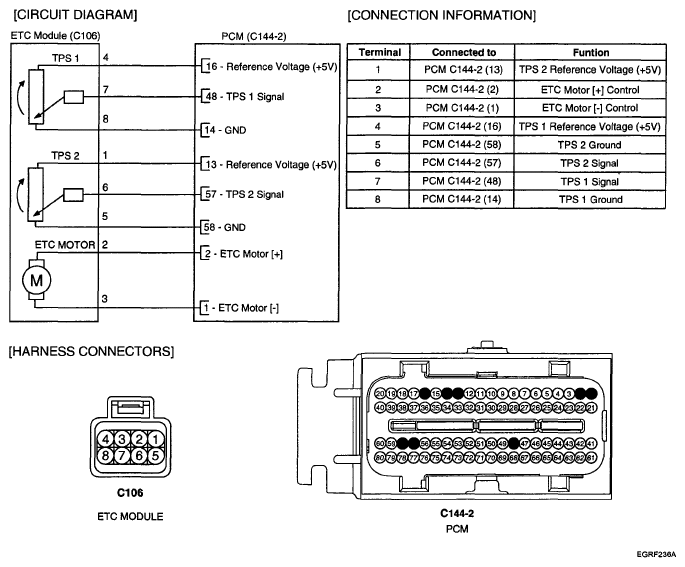

Home >> Hyundai >> 2007 >> Sonata SE >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6DB-GSL 3.3) >> Gasoline Engine Control System >> Etc (Electric Throttle Control) System >> Specification >> Schematic Diagram
