Power Window Relay: Troubleshooting

  1. No windows operate from the main switch on the driver's door.

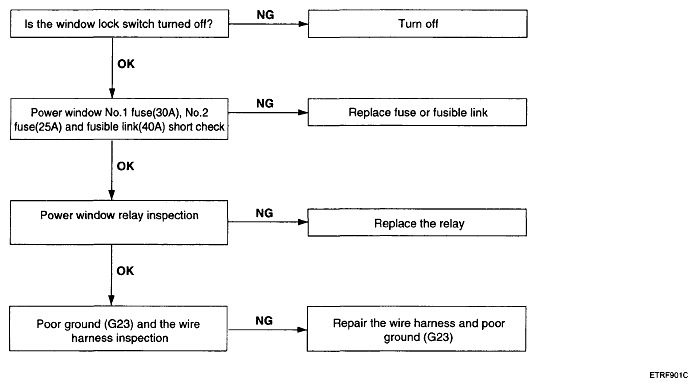

    Fig 1: No Windows Operate From The Main Switch On The Driver's Door - Troubleshooting Flow Chart
    G04893178Courtesy of HYUNDAI MOTOR CO.
  2. Driver's side window does not operate.

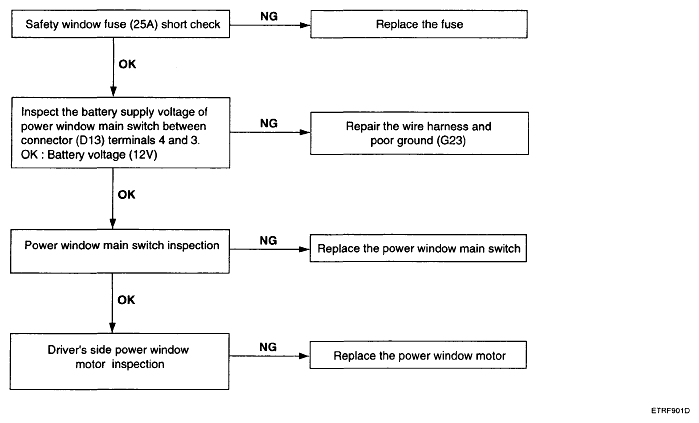

    Fig 2: Driver's Side Window Does Not Operate - Troubleshooting Flow Chart
    G04893179Courtesy of HYUNDAI MOTOR CO.
  3. Passenger's side window does not operate.

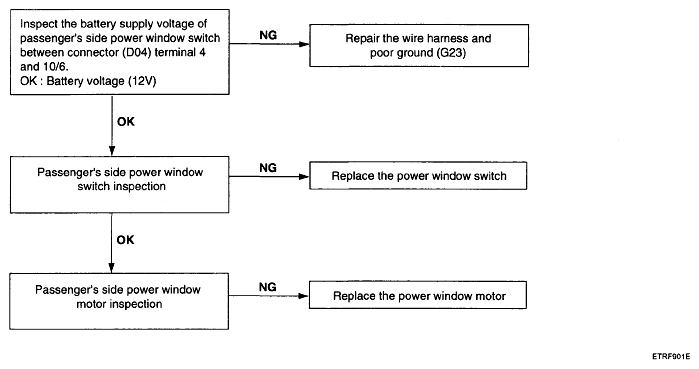

    Fig 3: Passenger's Side Window Does Not Operate - Troubleshooting Flow Chart
    G04893180Courtesy of HYUNDAI MOTOR CO.
