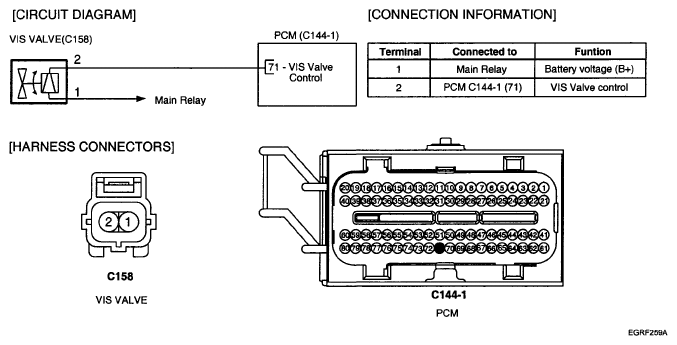

Home >> Hyundai >> 2007 >> Sonata Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel System (G6DB-GSL 3.3) >> Gasoline Engine Control System >> Variable Intake Solenoid (VIS) Valve >> Schematic Diagram
