Home >> Hyundai >> 2007 >> Sonata Limited >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> Starter >> Component

Starting System: Starter: Component

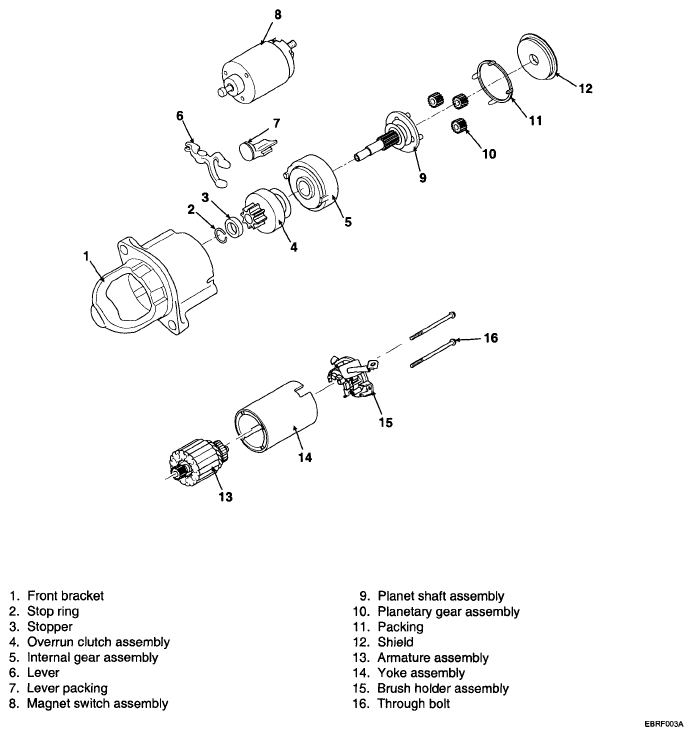

Fig 1: Exploded View Of Starter Motor Components

G04890750

Courtesy of HYUNDAI MOTOR CO.
