Front Wheel Speed Sensor: Removal

  1. Remove the front wheel speed sensor mounting bolt (A).

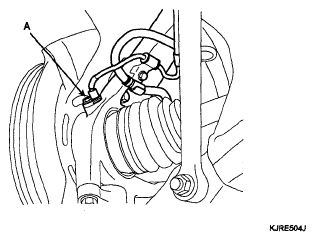

    Fig 1: Identifying Front Wheel Speed Sensor Mounting Bolt
    G04892737Courtesy of HYUNDAI MOTOR CO.
  2. Remove the front wheel guard.
  3. Remove the front wheel speed sensor after disconnecting the wheel speed sensor connector (A).

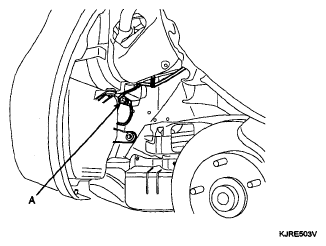

Fig 2: Identifying Wheel Speed Sensor Connector
G04892738Courtesy of HYUNDAI MOTOR CO.
